WAGNER PEM-C2 - Cleaning the Spraygun and Replace the Wear Parts

PEM-C2

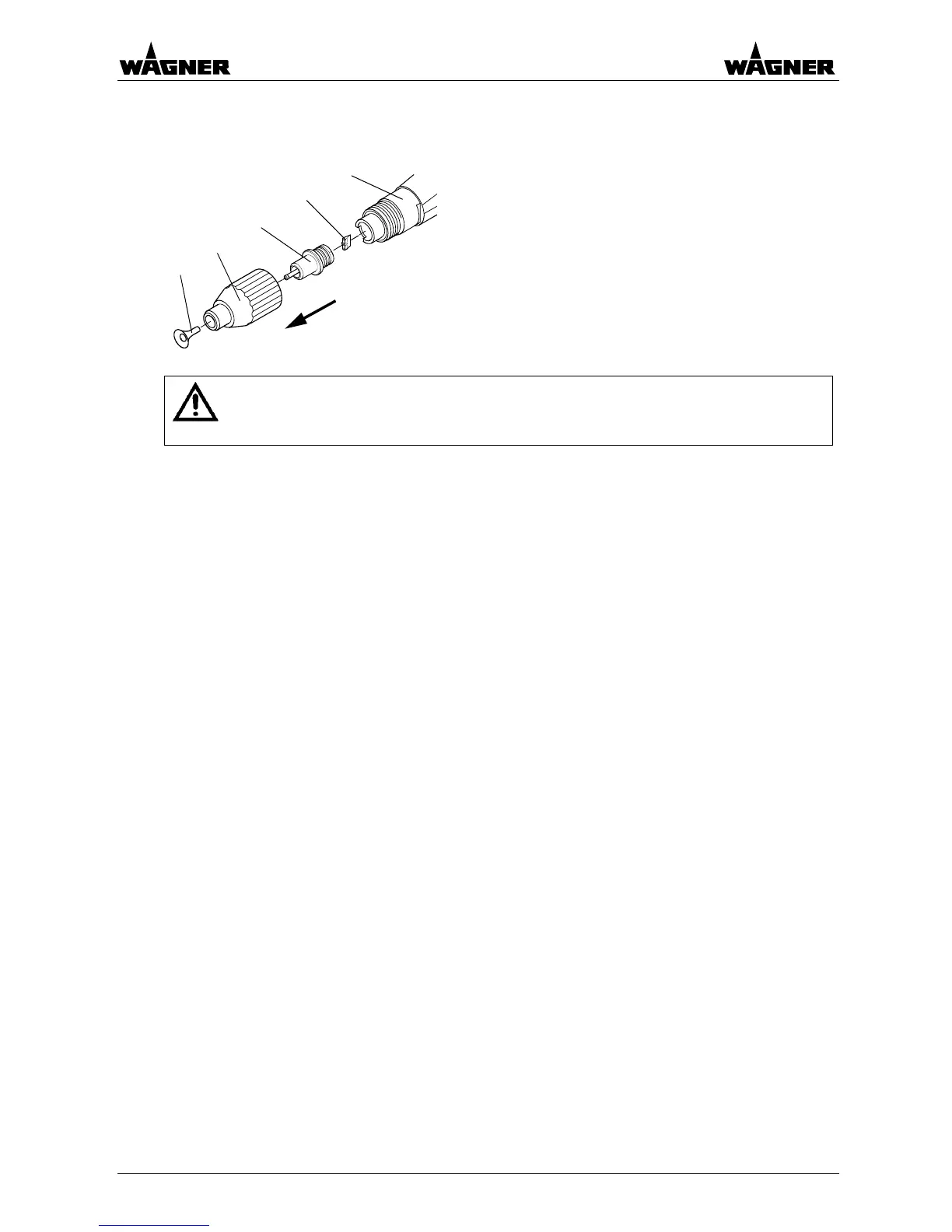

4.2 Cleaning the spraygun and replace the wear parts
4
1
2
3
5
• Pull off deflector cone 1 from nozzle insert 3.
• Unscrew the outer nut 2 from the gun housing 5.
• Carefully draw the nozzle insert 3 out of the gun
housing 5.
• Separate the protective wedge 4 from the
nozzle insert 3.
Caution
Never place the spraygun or parts of it into any wet cleaning agent!
• Clean the dismantled parts and the spraygun of powder deposits.
• Normally it is only necessary to check the protective wedge 4 for wear, and to replace it
with a new one if necessary.
• Check before re-assembling whether the contact points on the nozzle insert 3 and the
inside of the gun housing 5 have been thoroughly cleaned, so that the tip of the electrode
makes a conducting connection to the high voltage generator.
• Carefully re-fit the nozzle insert in the gun housing and tighten it up with the outer nut.
• Slide the deflector cone onto the nozzle insert again.
• The spraygun is again ready for operation.
02/01 16 0351801
