PEM-C2
2. Preparing the spraygun for your application

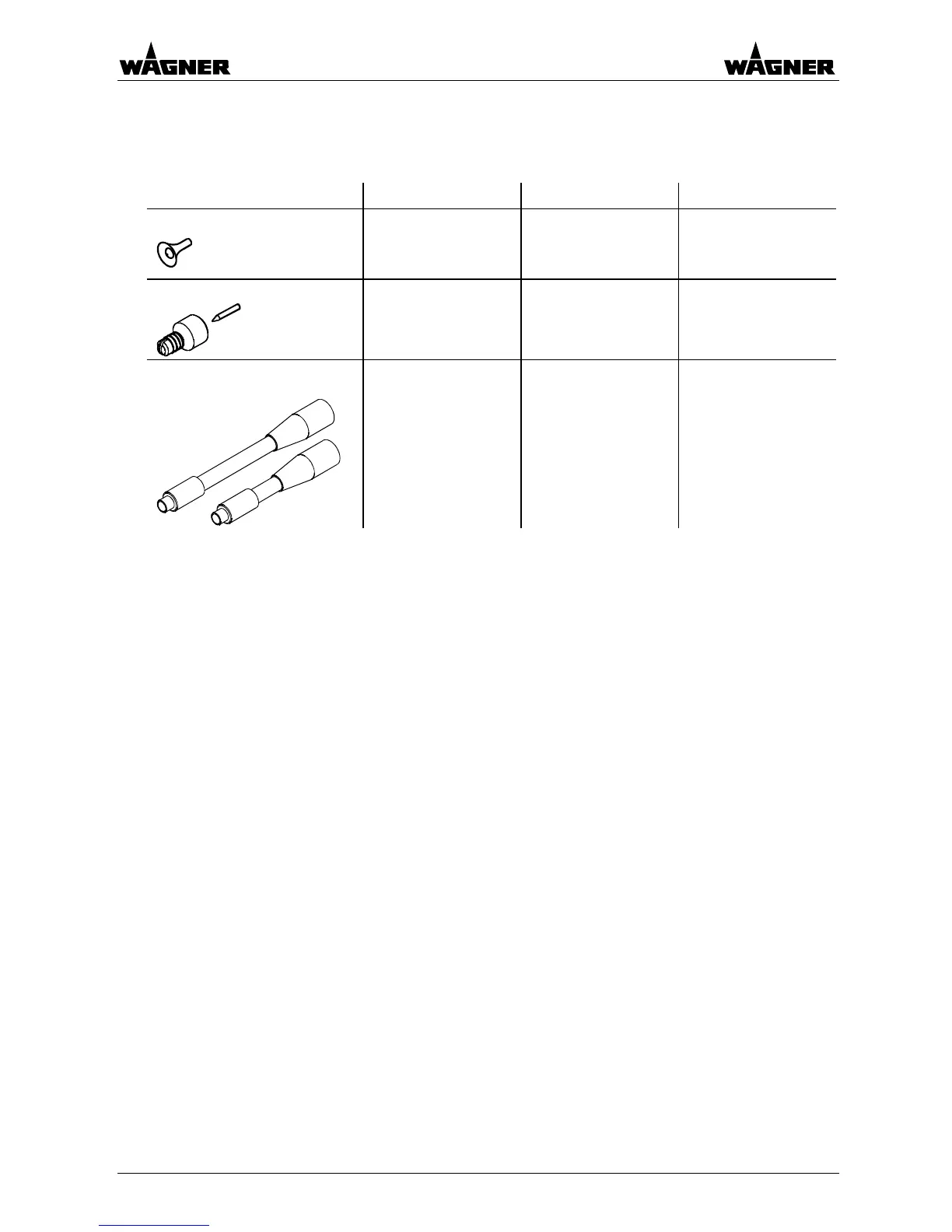

2.1 Select the suitable nozzle system
Nozzle Workpiece Spray cloud Remarks
Deflector cone
Wire goods
Gratings
Aluminum cross
sections
Round spray cloud:
the size depends on
the diameter of the
deflector cone.
for powder quantities
from 50 ... 300 g/min
Fan spray nozzle
Difficult workpieces:
undercuts
broken edges
Widely-spread fan
spray.
for powder quantities
from 50 ... 150 g/min
Round spray nozzle,
extension 300 or 180 mm
Objects with large
indentations:
e.g. cabinets
The spray cloud
depends on the nozzle
used.
A deflector cone or a
fan spray nozzle can
be mounted to the
extension.
The part numbers are listed in section 7. “Spare parts lists“
Chapter 5. “Mounting the extension“ describes how an extension is mounted.
