WAGNER PEM-C2 - 5 Mounting the Extension

PEM-C2

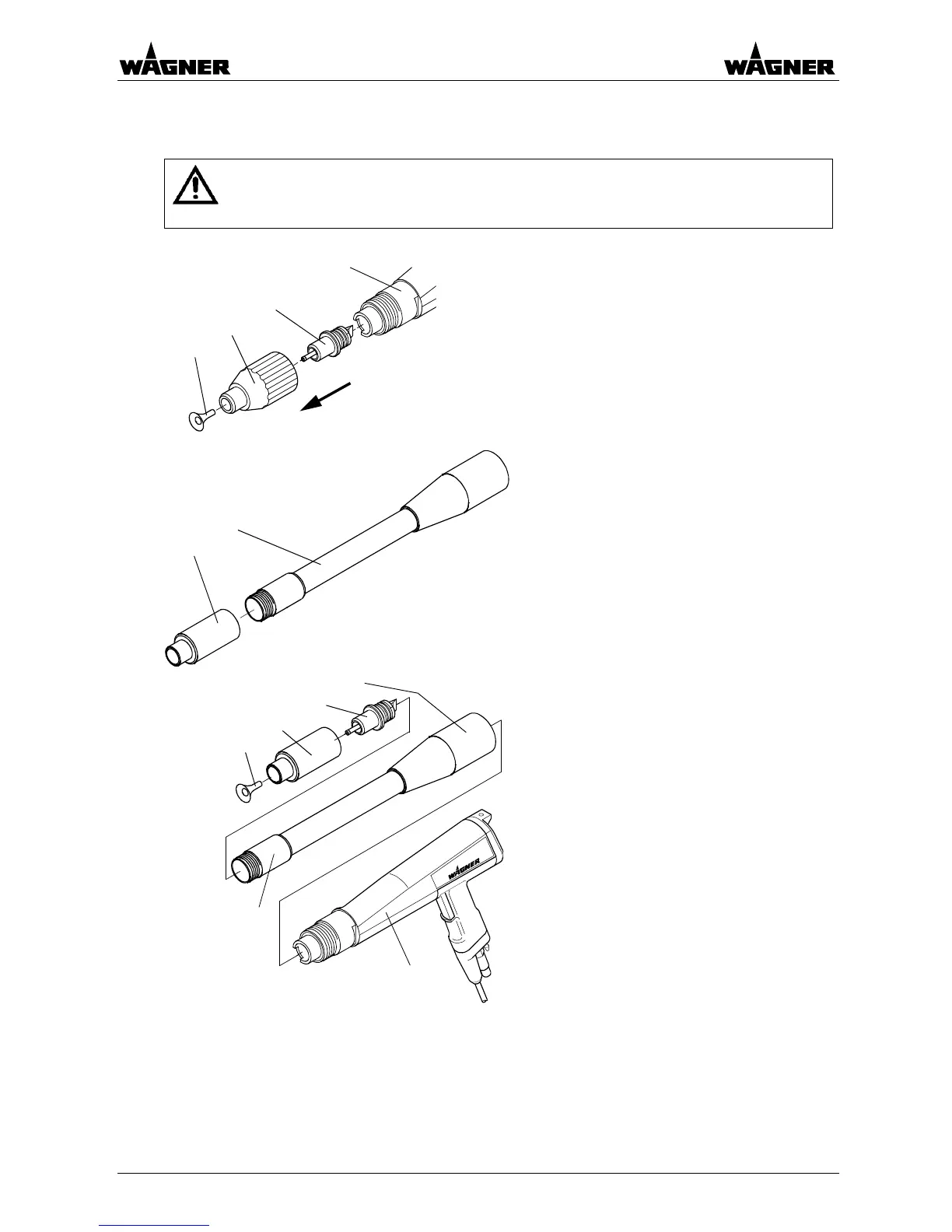

5. Mounting the extension
Caution
Always select a spraygun which has been thoroughly cleaned when mounting a
round spray nozzle extension.
A better alternative is to only selected a new spraygun in such cases.
1
2
3
4
• Pull off deflector cone 1 from nozzle insert 3.
• Unscrew the outer nut 2 (standard) from the gun
housing 4 and put aside.
The outer nut is not necessary for the extension.
• Carefully draw the nozzle insert 3 out of the gun
housing 4.
5
6
• Unscrew the outer nut 5 from the
extension 6.
1
5
3
6
7
4
• Slide the extension 6 into the gun
housing 4 and tighten it up with the
outer nut 7.
• Carefully re-fit the nozzle insert 3 in
the extension 6 and tighten it up with
the outer nut 5.
• Slide the deflector cone 1 on to the
nozzle insert 3.
02/01 17 0351801
