OPERATING MANUAL
VERSION 02/2009
ORDER NUMBER DOC2305054

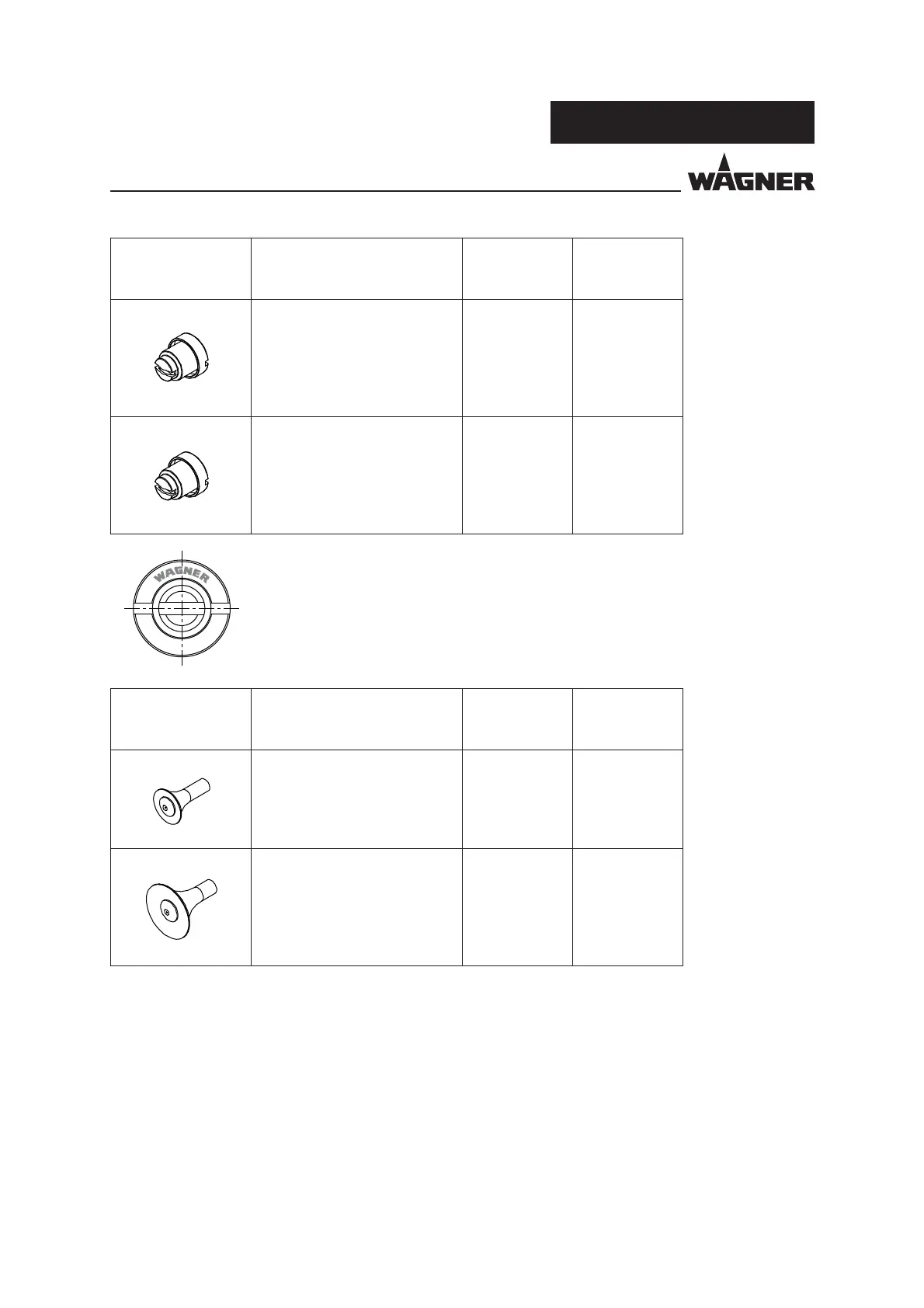

Nozzle Application Distance to
workpiece
(mm)
Powder
output
(g/min)
F3¹ Low powder application
(faster powder cloud)
● Very good dispersion with
low air and powder
quantities
● For all workpieces
120 … 300 30 … 150
HPO-1¹ Wide fan spray nozzle for high
powder application
(slow powder cloud)
● Good dispersion
● Special for extensive
workpieces
> 200
(total air
> 4.5 Nm³/h)
150 … 400
1.) Nozzles are labeled on the back.
Defl ector cone Application Distance to
workpiece
(mm)
Powder
output
(g/min)
R20
∅ 20 mm
● Small even workpieces
100 … 300 30 … 250
R28
∅ 28 mm
● Medium sized, even
workpieces
● Lateral application with
Z-axis
100 … 300 50 … 250
You will fi nd the article numbers of the different nozzles in chapter 9 “Accessories“.
