WAGNER PEM-C4-Ergo User Manual

27
PEM-C4-Ergo.
2
3
1
P_00594
3
2
1
P_00595
3
1
2
P_00596
OPERATING MANUAL
VERSION 02/2009 ORDER NUMBER DOC2305054

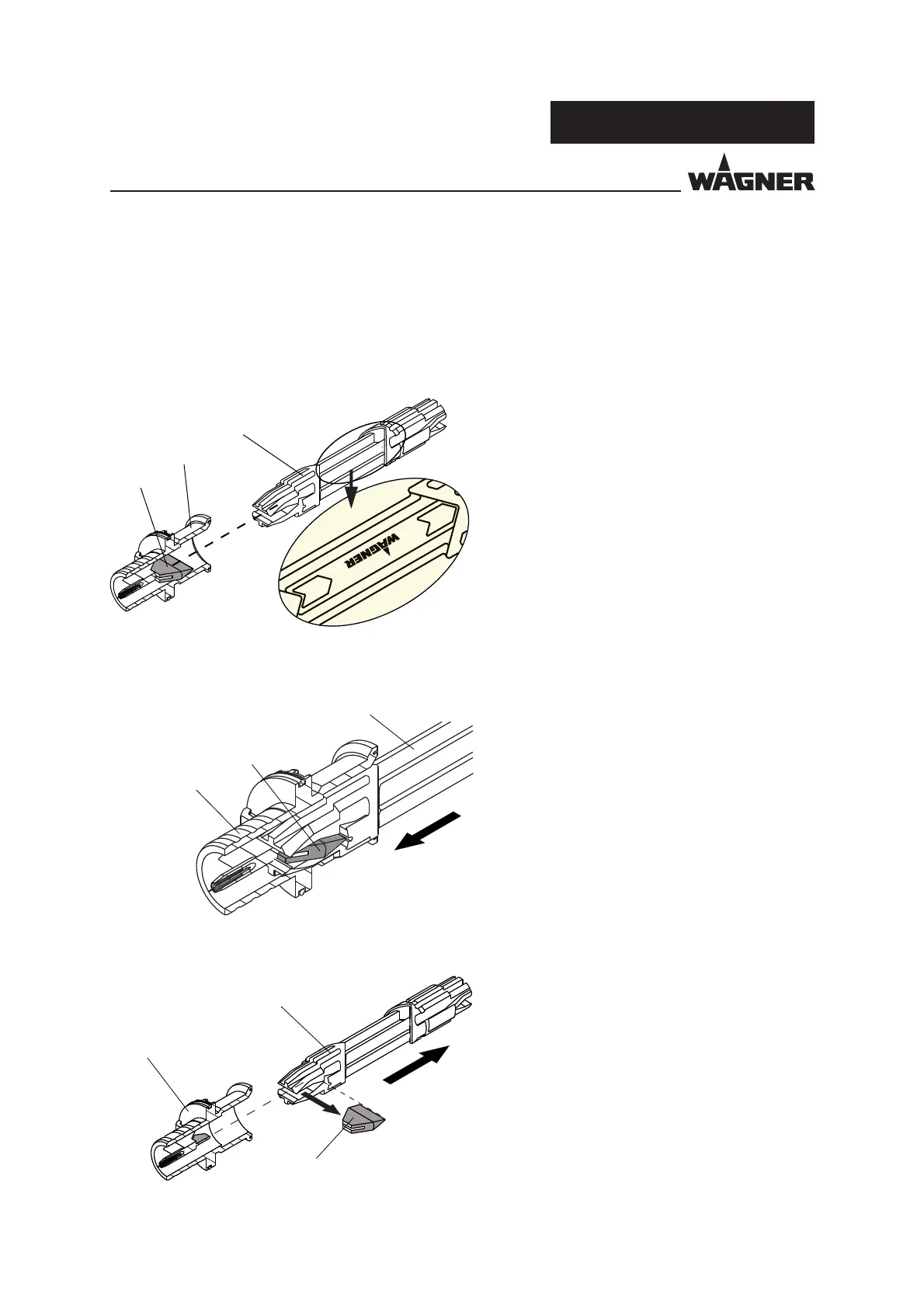

7.3 REPLACING THE PROTECTIVE WEDGE
1 Wedge tool
2 Protective wedge (install position)
3 Electrode holder (cut open view)
Procedure:
1. Guide the wedge tool 1 into the
electrode holder 3 to the stop.
2. Pull the protective wedge 2 out of the
electrode holder 3 using the wedge tool
1.
3. Press the protective wedge 2 lateral out
of the wedge tool 1 manually without a
tool.
Hint:
To ensure that the protective wedge is not damaged when dismantling and inserting them,
a wedge tool is available for assembly.
You will fi nd the necessary wearing parts and spare parts in chapter 10 “Spare parts“ of this
manual.
