32
PEM-C4-Ergo.
1
2
3
5
P_00591
P_00933
OPERATING MANUAL
VERSION 02/2009 ORDER NUMBER DOC2305054

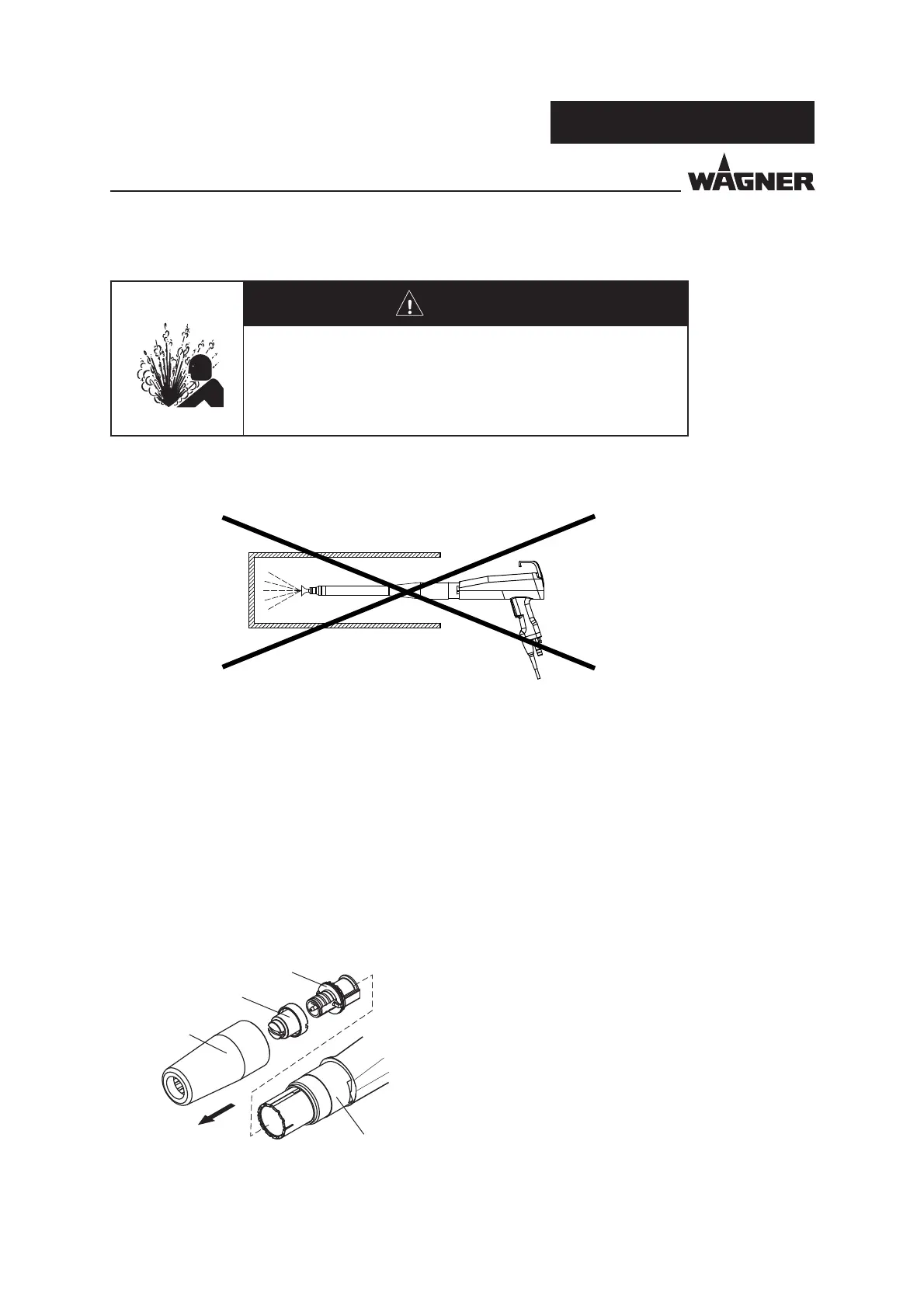

The standard Corona spray gun is delivered with a fan spray nozzle. The nozzle can be
changed easily, as described in the following.
The gun extension is necessary to perform the change.
Procedure:
1. Unscrew the outer nut 1 from the spray gun
housing 5.
2. Pull the fan spray nozzle 2 off the electrode
holder 3.
3. Carefully pull the electrode holder 3 out of the
spray gun housing 5.
Hint:
Do not damage the electrode holder, when pulling
out and inserting.
4. Remove powder residue from the parts removed
and from the spray gun.
SIHI_05041_ENG
DANGER
Exploding dust/air mixture!
Danger to life from flying parts and burns.
The inside coating of hollow bodies and/or in narrow spaces is
forbidden in accordance with BGI 764.
Hint:
Always select a spray gun, which has been thoroughly cleaned when mounting a gun
extension.
We recommend to use a new spray gun.
7.6 MOUNTING THE C4 GUN EXTENSION
