WAGNER PEM-C4-Ergo User Manual

15
PEM-C4-Ergo.
A
B
C
D
E
F
G
E
H
I
K
L
P_01093
OPERATING MANUAL
VERSION 02/2009 ORDER NUMBER DOC2305054
4.4 FUNCTIONAL DESCRIPTION

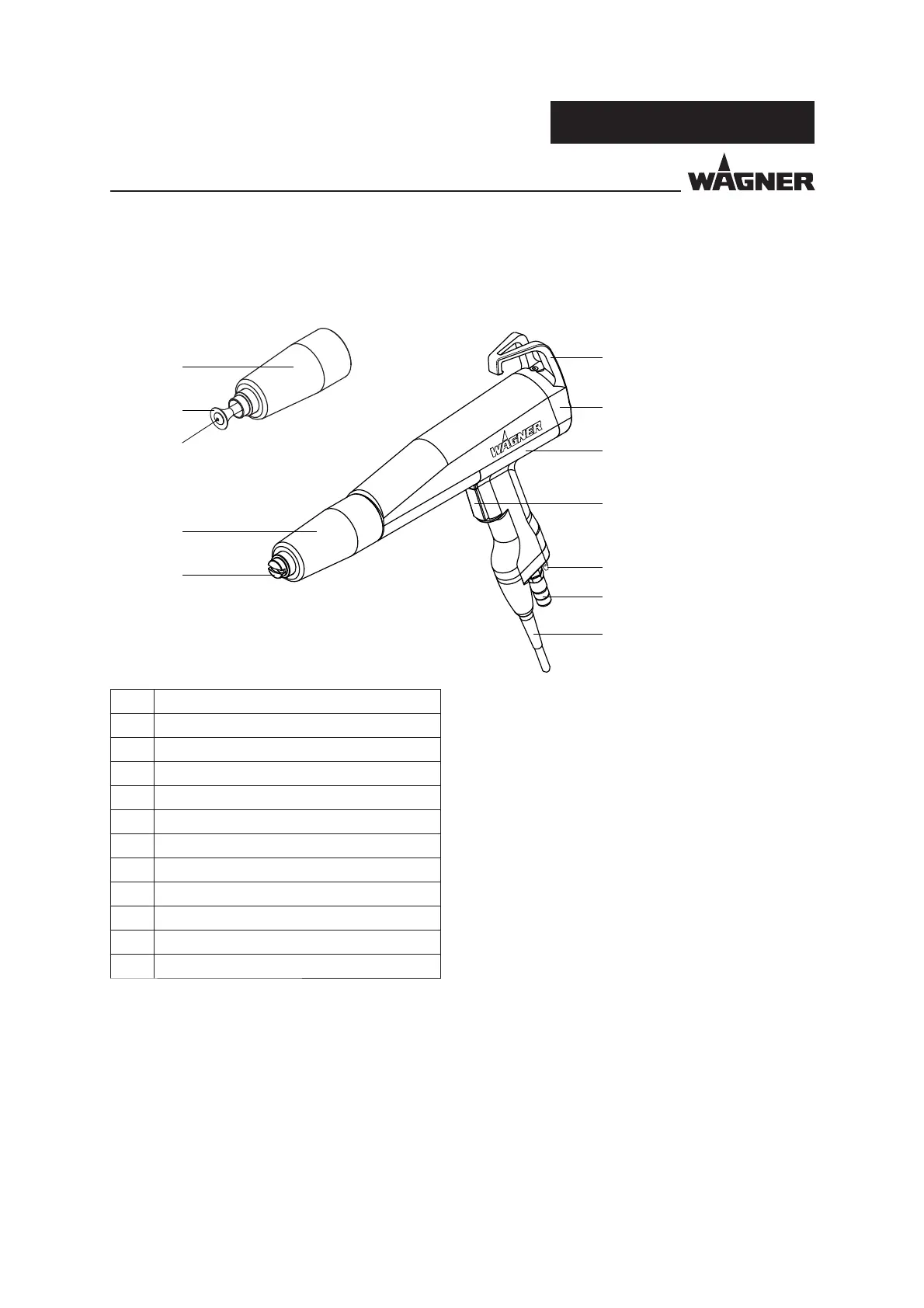

4.4.1 DESIGN OF SPRAY GUN
Description
A Suspension hook
B End part
C Spray gun body
D Trigger
E Outer nut
FDefl ector cone
G Electrode
H Fan spray nozzle
I Atomizing air connection
K Powder hose connection
L Electrical connection
4.4.2 FUNCTIONING OF THE SPRAY GUN
High-voltage is activated in the manual gun when the trigger is actuated.
The powder supply and air supply to the gun are activated at the same time.
The control unit must be switched off in order to lock the spray gun.
