OPERATING MANUAL
VERSION 02/2009 ORDER NUMBER DOC2305054

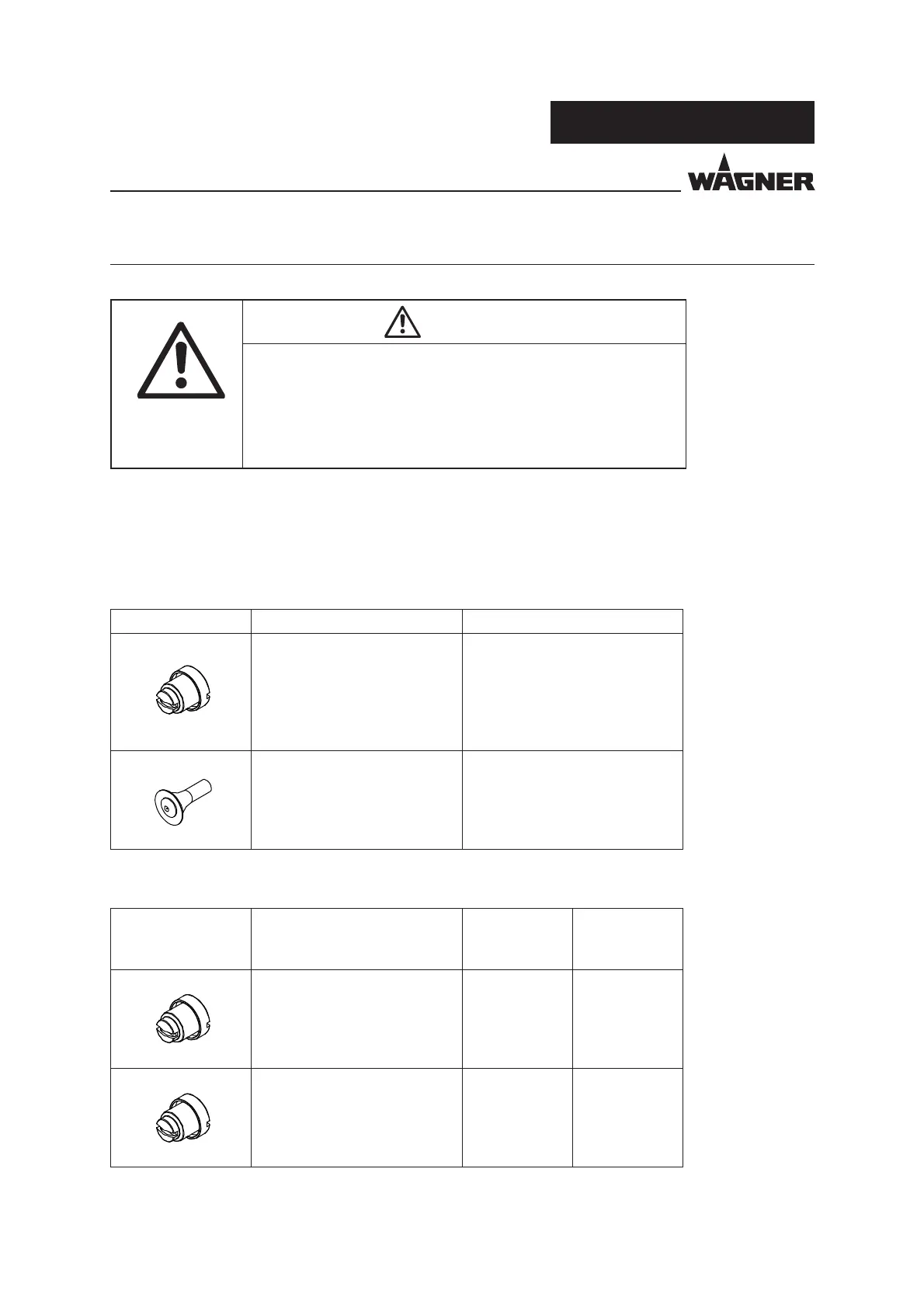

5.1 PREPARING THE SPRAY GUN
5 START-UP
5.1.1 SELECTION OF THE SUITABLE NOZZLE SYSTEM
Nozzle Overview Application Spray pattern
Fan spray nozzle Diffi cult workpieces
● Undercuts
● Profi les
● Flat workpieces
(reduced picture frame)
Widely spread fl at powder
cloud
Defl ector cone
● Wire goods
● Grid designs
Oval powder cloud:
Size of the powder cloud is
dependent on the defl ector
cone diameter
Nozzle Application Distance to
workpiece
(mm)
Powder
output
(g/min)
F1¹ Universal application
(slow powder cloud)
● Deep and complex shapes
● Extensive workpieces
120 … 300 50 … 250
F2¹
Targeted application
(dense powder cloud)
● High penetration
● Wide coating range
120 … 400 30 … 200
WARNING
Incorrect installation/operation!
Risk of injury and damage to equipment
 When putting into operation and for all work, read and follow
the operating instructions and safety regulations for the addi-
tionally required system components.
SIHI_0050_GB
