WAGNER PEM-C4-Ergo User Manual

31
PEM-C4-Ergo.
B
1
A
C
2
3
G E FD
P_00702
OPERATING MANUAL
VERSION 02/2009 ORDER NUMBER DOC2305054

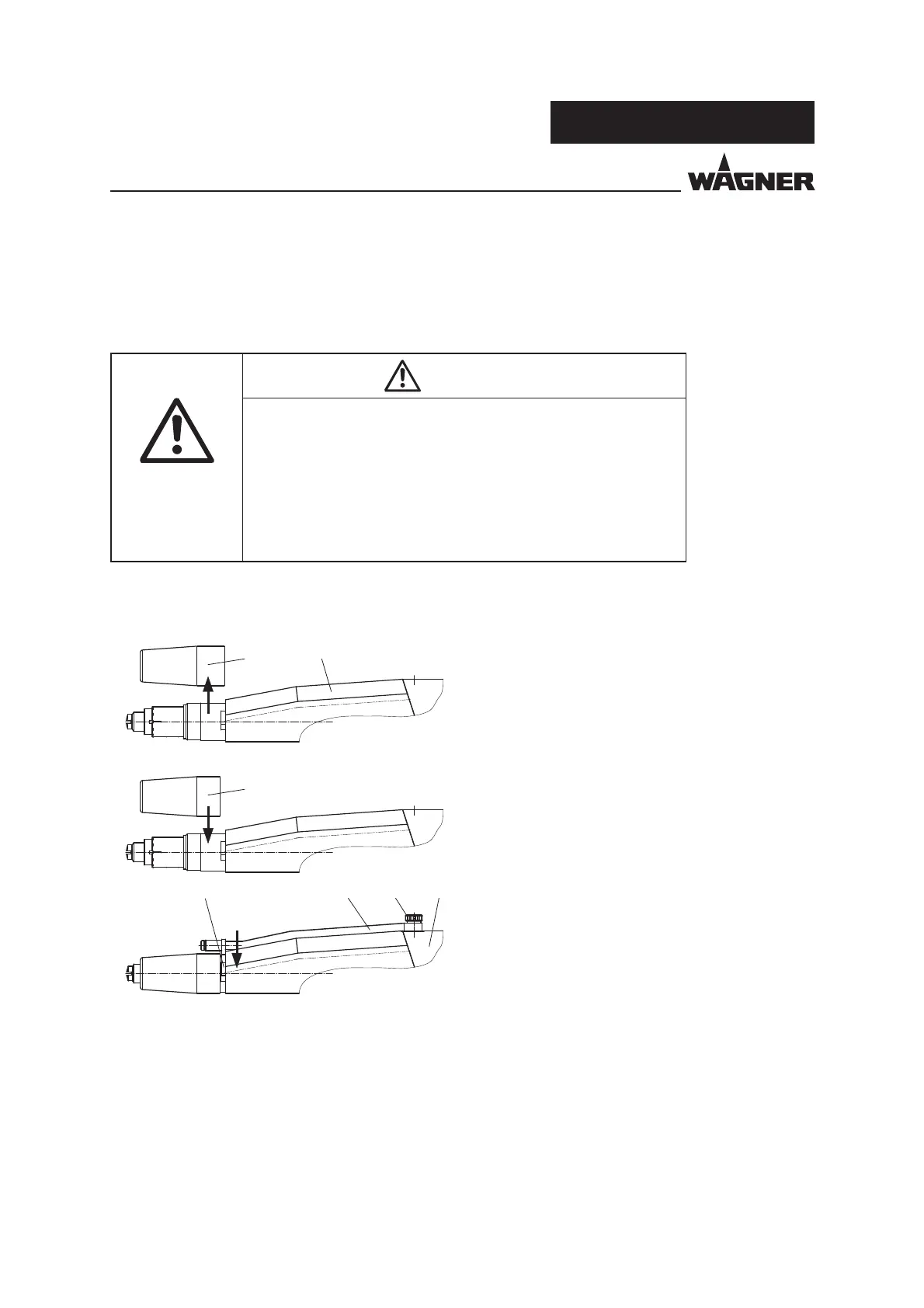

7.5 MOUNTING THE CORONA-STAR
The Corona-Star is a Retrofi t-Set for the spray gun, which helps to achieve a better surface
quality (reduction of “orange peel“).
SIHI_05033_ENG


WARNING
Danger from electric current!
Risk of injury and damage to the equipment.
Trained personnel may only carry out the assembling of the
Corona-Star.
Prior to mounting the Corona-Star, the high-voltage and
the powder feed must be switched off and secure against
inadvertent switch on.
Procedure:
1. Switch off the high-voltage and the powder feed
and secure against inadvertent switch on.
2. Unscrew the standard nut A from the spray gun
housing B.
3. Screw the new nut C for the Corona-Star D onto
the spray gun housing and fasten in place.
4. Fasten the cable guide onto the cover plate F by
using the screw E.
5. Slide the Corona-Star G onto the spray gun
housing B.
Hint:
Check whether the grounding is assured.
6. The spray gun is ready for use again.
