5 DESCRIPTION

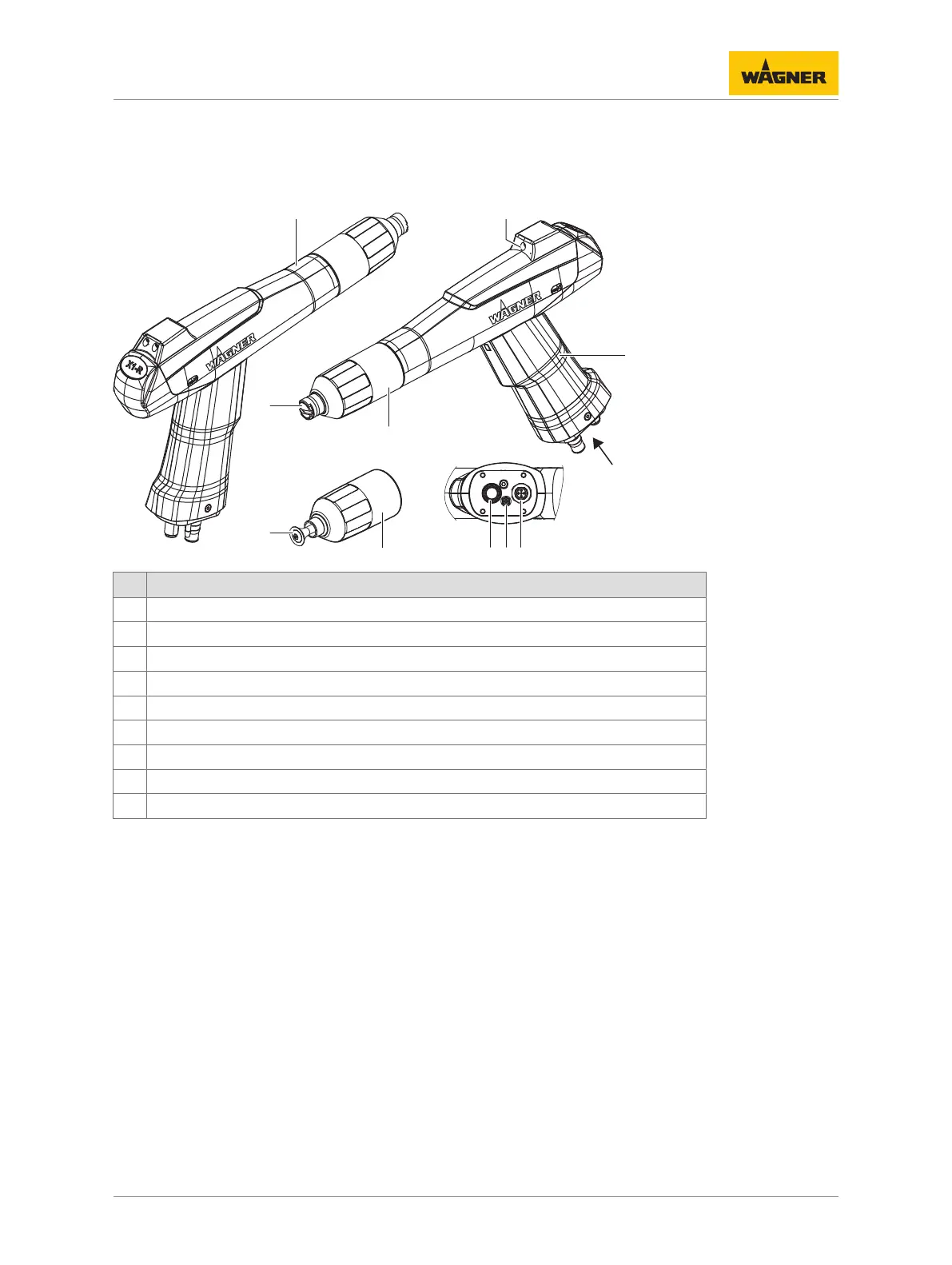

5.1 DESIGN OF THE ROBOT GUN
A
A
P_04902
7
8
1
3
2 9
3
6 5 4
Pos Designation
1 Handle
2 Spray gun body
3 Union nut
4 Electrical connection
5 Atomizer air connection
6 Powder hose connection
7 Flat jet nozzle
8 Round jet nozzle
9 Coronastar connection
5.2 POSITIVE CASCADE
The version with positive cascade can be used for special applications for powder in powder
coating processes.
The `powder in powder´ coating process is a process in which the primer and the top coat
are applied directly one after the another, without the primer being cured first. This makes it
possible to save energy and shorten the processing time.
