WAGNER PER-X1 - Assembly of the Variants; PER-X1 Single Outside (SO)

Operating manual Robot powder spray gun PER-X1
6 Assembly and Commissioning
Order number 2444998 | Edition 10/2022 25
6.6 ASSEMBLY OF THE VARIANTS
6.6.1 PER-X1 Single Outside (SO)
P_04914
n
o
p

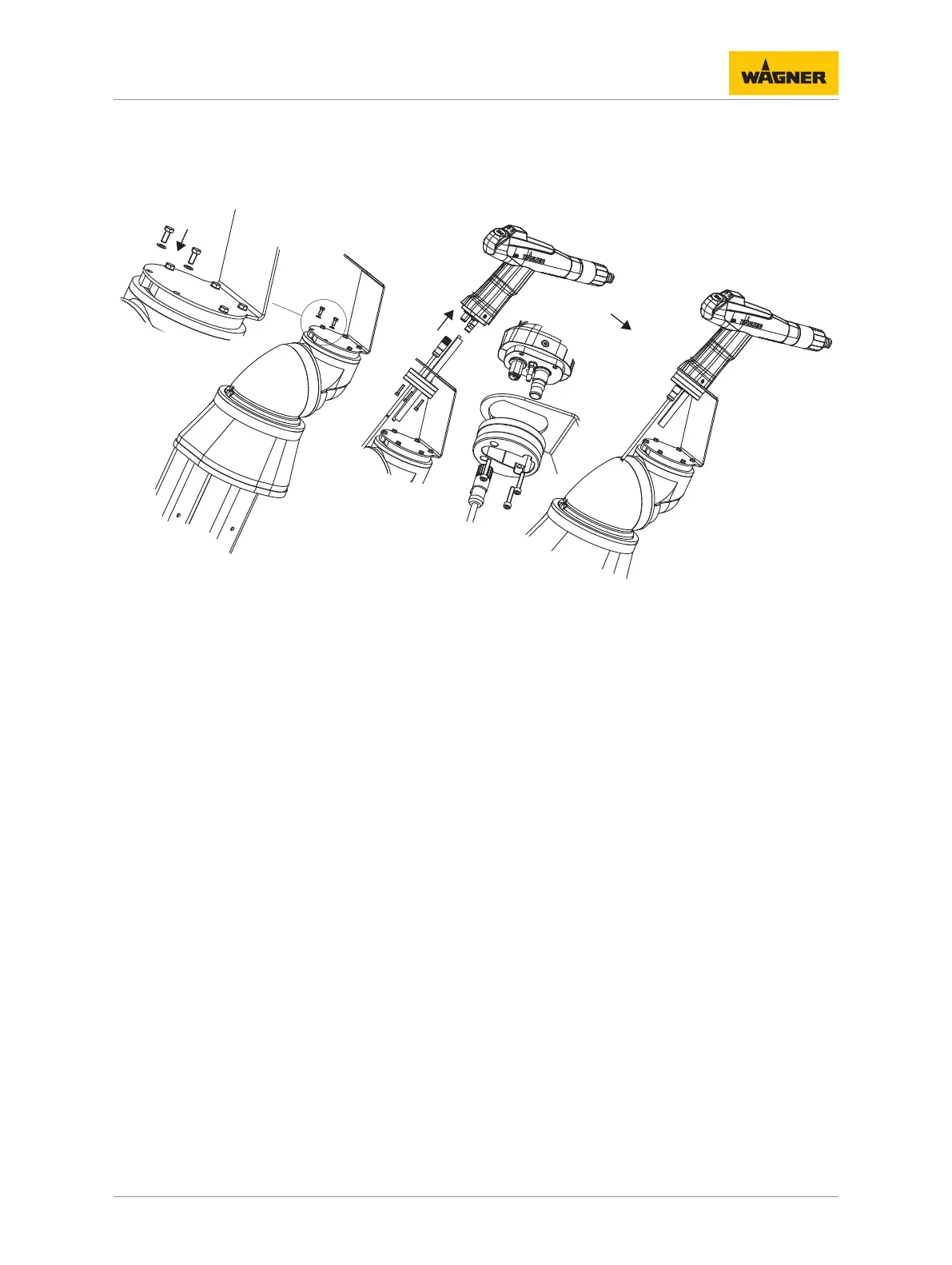

Assembly:
1. Screw the PER-X1 SO elbow onto the robot arm using the screws (6x).
2. Guide the connection cable as well as the powder and atomizing air hose through the
clamping ring and the PER-X1 SO elbow and connect to the spray gun.
3. Screw the spray gun onto the adapter using the clamping ring.
Disassembly:
Note: Disassembly is carried out in reverse order to assembly!
Before replacing the robot spray gun, any powder residue must be thoroughly removed.
The wearing parts in the robot spray gun, marked in the spare parts list with "♦", must be
regularly checked and replaced as necessary.
1. Unscrew the clamping ring from the spray gun.
2. Pull off the connection cable as well as the powder and atomizing air hose.
3. Replace PER-X1 robot powder spray gun and assemble it again as described in
Assembly.
