Maintenance Instructions LUBRICATION
52
Ident Lubrication No.
No. Location Type Places
Ident Lubrication No.
No. Location Type Places
1 Deck Caster Wheel Fork Pivot Grease 2
2 Blade Drive Gearbox Oil* 2
3 Tee Gearbox, Deck Oil* 1
4 Deck Caster Wheel Bearing Grease 2
5 Universal Joint Shaft Assembly Grease** 1
6 Pivot Assembly, Tilt-Up Deck Grease 4
7 Deck Support Arm Socket Grease 2
8 FSC Lever Pivot Grease 1
9 Steering Lever Pivot Grease 2
10 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
11 Universal Joint Tube Assembly Grease** 1
12 Deck Support Arm Pivot Grease 2
13 Ground Drive Idler Pivot Grease 1
14 PTO Clutch Lever Pivot Grease 1
15 Transaxle Oil Reservoir Oil/20W-50*** 1
16 Body Latch Pivot Oil 1
17 Clutch Actuator Push Rod Grease 1
18 PTO Belt Tightener Pivot Grease 1
19 Brake Band Pivot Pins (Clevis) Oil 2
20 Catcher Hinge Point Oil 2
21 Throttle Control Cable Ends Oil 2
22 Engine Dipstick / Oil Filler Oil*** 1
23 Choke Control Cable Ends Oil 2
24 Engine Idler Pivot Grease 1
25 Parking Brake Clevis Oil 2
26 Parking Brake Lever Grease 1
27 Choke Control Pivot Oil 1
28 Throttle Control Pivot Oil 1
* Gearboxes are permanently lubricated and sealed re-
quiring no scheduled lubrication. Oil level should be
checked only when an oil leak is noted. Refer to Mower
Deck Gearbox Lubrication in this section.
** Grease every twenty-ve (25) hours.
*** Refer to Engine Oil located on page 49 and Check
Transaxle Fluid Level located on page 54.
NOTE: DS42 and DC36R Tilt-Up Decks are shown for reference.
For other Deck Lubrication Points, Refer to Deck and
Carrier Frame Illustrated Parts Manual.

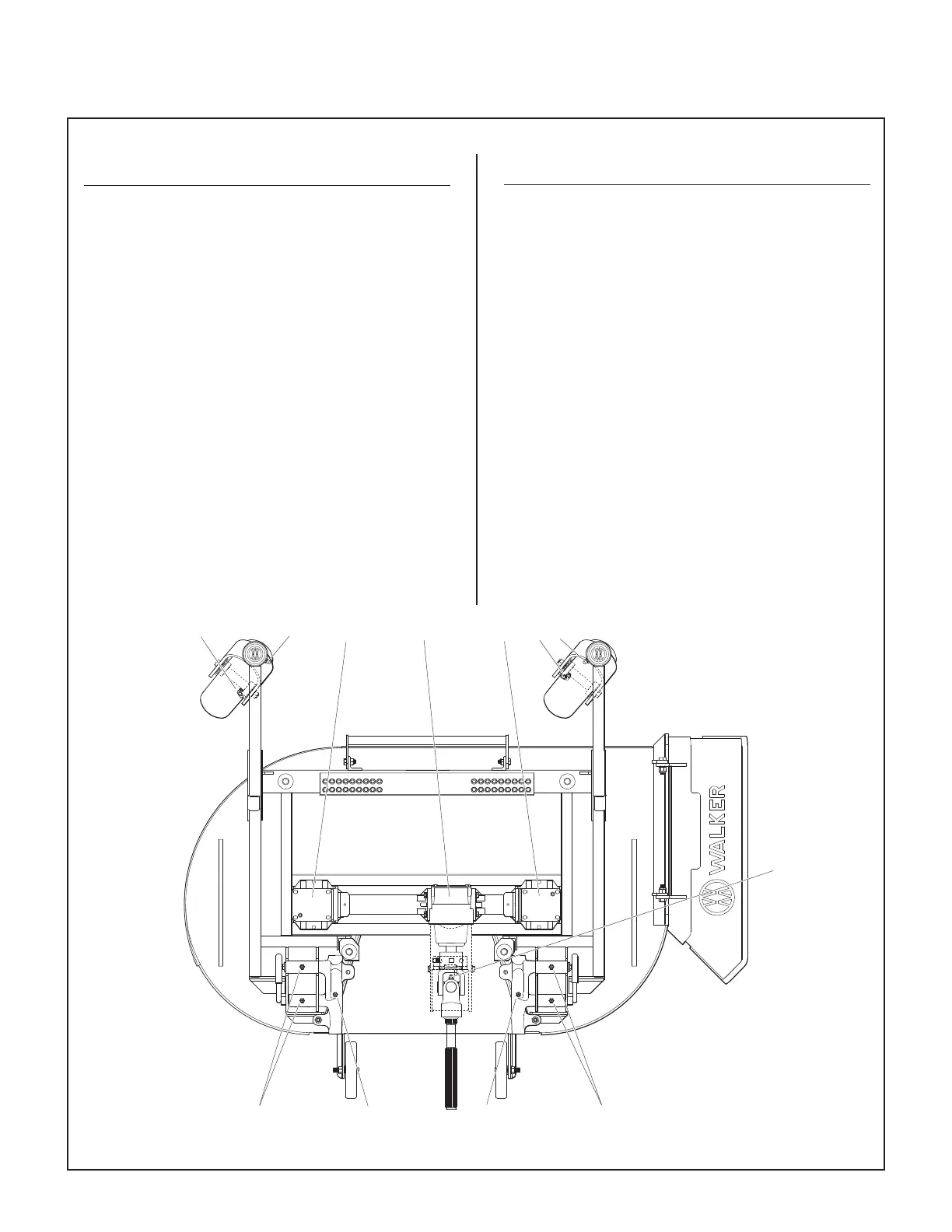

Lubrication Points for Side Discharge Decks (DS42 Shown)
1 12 3 2
5
6776
4
4
