Maintenance Instructions
LUBRICA
TION
53

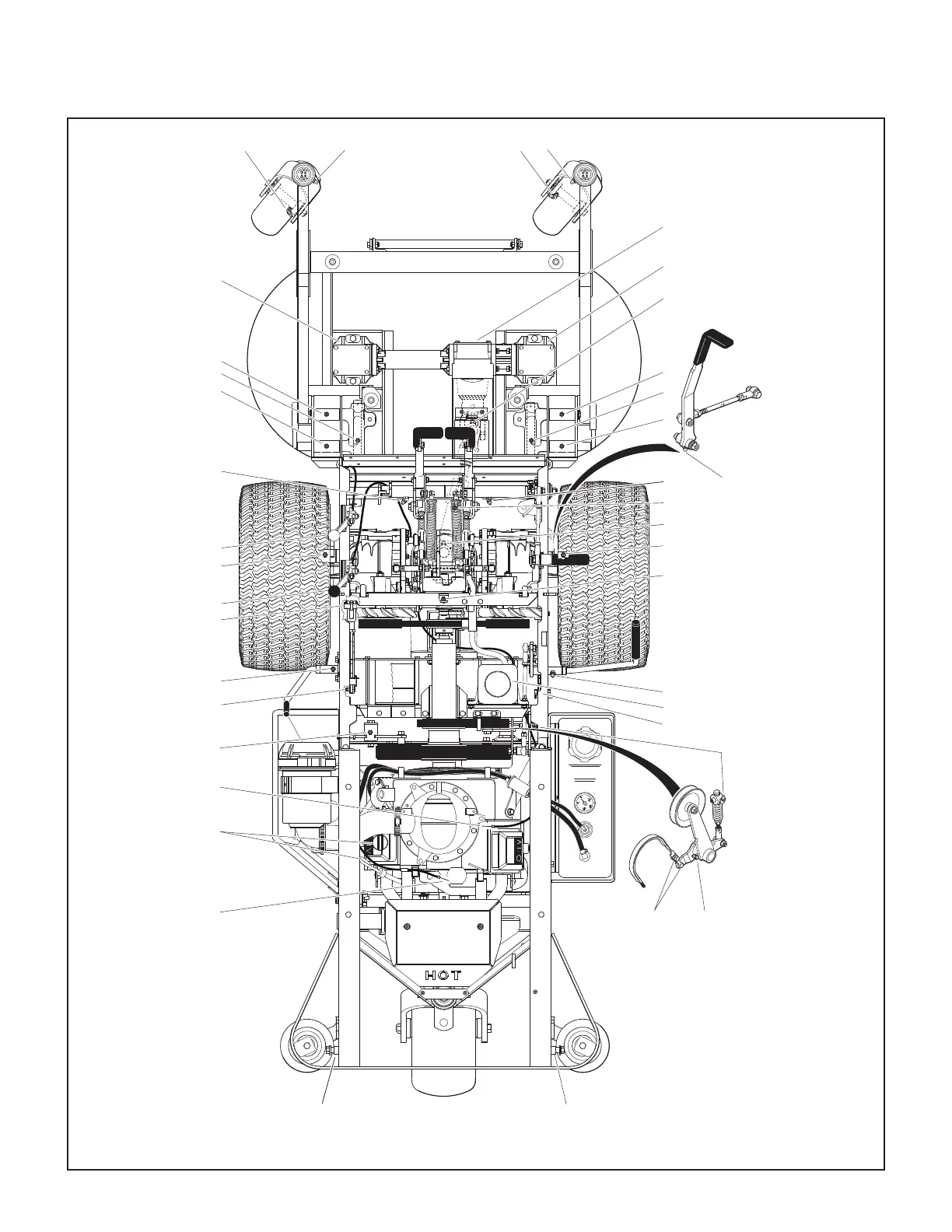

Chassis and Deck Lubrication Points (DC36R Shown)
4
4
9
9
8
10
11
15
12
13
26
23 & 27
12
25
25
21 & 28
14
16
17
20
20
21
23
24
18
19
22
1
3
2
5
6
6
7
1
2
6
7
6
56
58
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
5
Highlighted Information
5
Glossary
5
Identifying Number Locations
5
Engine Serial Number Location
6
Servicing of Engine and Drivetrain Components
6
Specifications
7
Engine
7
Electrical System
7
Transmission
7
Blade Drive
8
Tire Size
8
Tire Pressure
8
DIMENSIONS (Tractor and Mower)
9
Ghs System
9
Mower Deck
10
Drive Belts
10
Seat
10
Frame/Body Construction
10
Component Identification
11
Safety Instructions
14
Before Operating
14
Operating
16
Maintenance
18
Safety, Control
19
And Instruction Decals
19
Assembly Instructions
22
Setup Instructions
22
Tire Installation (Tractor)
22
Battery Service
22
Wet Battery Service
22
Dry Battery Service
22
Battery Charging
23
Battery Installation
23
Mower Deck Assembly
24
Deck Caster Wheels Installation
24
Deck Discharge Chute Installation
24
Deck Discharge Deflector Shield Installation
24
PTO Shaft Guard Installation
25
Tilt-Up Roller Wheel Installation
25
Mower Deck Installation on Tractor
25
Deck Installation
25
Deck Leveling
27
Preoperating Checklist
28
Operating Instructions
30
Control Identification, Location, and Function
30
Engine Choke
30
Engine Throttle
31
Forward Speed Control (FSC)
31
Steering Levers
31
Blade Clutch (PTO)
31
Front Body Latch Release
31
Parking Brake
32
Transaxle Lockout Arms
32
Hourmeter
33
Ignition Switch
33
Circuit Breakers
33
Starting the Engine
35
Adjusting Ground Speed and Steering
35
Engaging the Blade Drive
37
Stopping the Machine
38
Adjusting Cutting Height
39
Transaxle Lockout
39
Recommendations for Mowing
40
Recommendations for Tilt-Up Deck Operation/Transport
42
Grass Handling System (Ghs)
43
General Information
44
Clogging Checklist
45
Using the Tilt-Up Deck
46
Using the GHS Catcher
46
Powerfil
46
Full" Signal Horn
46
Cleaning the GHS Exhaust Screen
47
Dumping the Catcher
47
Tailgate Dumping
47
Using the Dump Bag
48
Power Dump Option
49
Maintenance Instructions
51
Maintenance Schedule Chart
51
Important Tips for Care of the Briggs & Stratton Engine
52
Fuel System
52
Starting/Stopping
52
Cooling System
52
Air Cleaner System
52
Oil
52
Lubrication
53
Engine Oil
53
Engine Break-In Oil
53
Checking Engine Crankcase Oil Level
53
Changing Engine Crankcase Oil/Oil Filter
54
Grease Fitting and Oil Point Lubrication
55
Mower Deck Gearbox Lubrication
58
Mower Deck Spindle Lubrication
58
Check Transaxle Fluid Level
58
Transaxle Oil and Filter Change
59
Cleaning
60
Engine Air Cleaner System
60
Cummins/Fleetguard Optiairâ„¢ Air Cleaner
60
Engine Air Cooling System
62
Cooling Air Intake Screen
62
Cylinder Head Cooling Fins
63
Grass Buildup in Mower Deck Housing
64
GHS Exhaust Screen
64
GHS Blower
65
Transaxle Housing
65
Checking/Servicing
66
Security of Air Filtration Components
66
Battery
66
Electrolyte Level
66
Cleaning the Terminals
66
Charging the Battery
67
Tire Pressure
67
Wheel Nut Torque
67
Sharpen Mower Blades
67
Drive Belts
68
Mower Deck Gearbox Oil Seals
69
Spark Plugs
69
Ignition
69
Ignition Wires
69
Fuel Lines and Clamps
69
Transmission Control Setting
69
Neutral-Park
69
Straight Ground Tracking
69
Blade Brake Action
69
PTO U-Joints
70
Safety Switch System
70
Forward Speed Control Friction Lock
70
Replacing/Repairing
71
Drive Belts
71
Engine Belt
72
PTO Drive Belt
73
Ground Drive Belt
74
Fuel Filter
75
Blade Overload Shear Bolts
75
Mower Blades
76
Adjustments
77
Transmission Control
77
Steering Lever Position Adjustment
77
Steering Handle Adjustment
77
Neutral Function Adjustment
78
Full Forward Speed Adjustment
79
Straight Tracking Adjustment
79
FSC Neutral Switch Adjustment
80
Forward Speed Control Friction Adjustment
81
Blade Clutch (PTO)
82
Clutch Engagement/Belt Tension
82
Blade Brake Band Adjustment
83
Tilt-Up Deck Adjustable Stop
84
GHS "Full" Signal Horn Adjustment
85
Maintenance and Service Record Sheet
86
