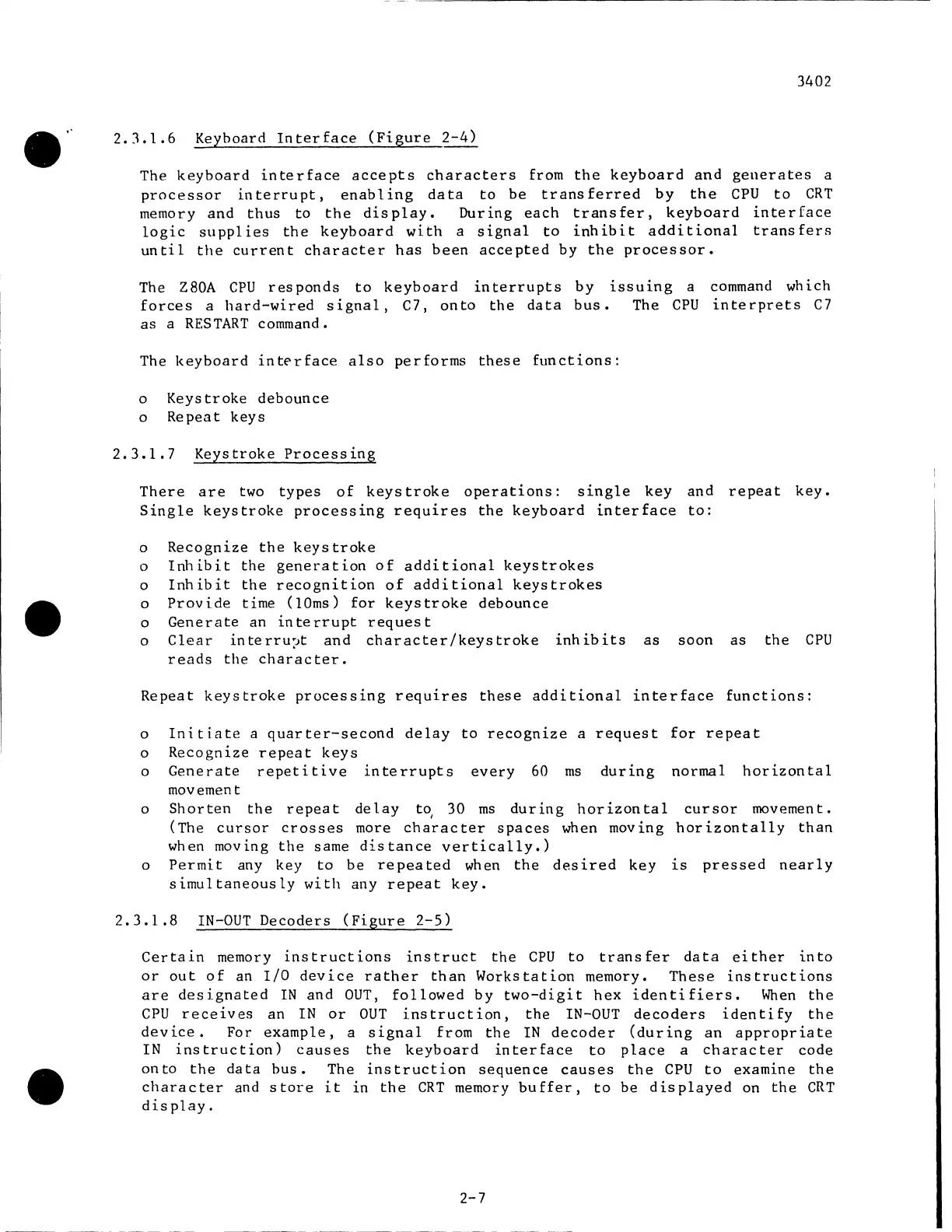

3402
2.3.1.6
Keyboard
Interface
(Figure
2-4)
The
keyboard
interface
accepts
characters
from
the
keyboard
and
generates
a
processor
interrupt,
enabling
data
to
be
transferred
by
the
CPU
to
CRT
memory
and
thus
to
the
display.
During
each
transfer,
keyboard
interface
logic
supplies
the
keyboard
with
a
signal
to
inhibit
additional
transfers
until
the
current
character
has
been
accepted
by
the
processor.
The Z80A
CPU
responds
to
keyboard
interrupts
by
issuing
a command
which
forces
a
hard-wired
signal,
C7,
onto
the
data
bus.
The
CPU
interprets
C7
as
a
RESTART
command.
The
keyboard
inter
face
also
performs
these
functions:
o
Keystroke
debounce
o
Repeat
keys
2.3.1.7
Keystroke
Processing
There
are
two
types
of
keystroke
operations:
single
key
and
repeat
key.
Single
keystroke
processing
requires
the
keyboard
interface
to:
o
Recognize
the
keystroke
o
Inhibit
the
generation
of
additional
keystrokes
o
Inhibit
the
recognition
of
additional
keystrokes
o
Provide
time
(lOms)
for
keystroke
debounce
o
Generate
an
interrupt
request
o
Clear
interru:Jt
and
character/keystroke
inhibits
as
soon
as
the
CPU
reads
the
character.
Repeat
keystroke
processing
requires
these
additional
interface
functions:
o
Initiate
a
quarter-second
delay
to
recognize
a
request
for
repeat
o
Recognize
repeat
keys
o
Generate
repetitive
interrupts
every
60
ms
during
normal
horizontal
movement
0
0
Shorten
the
repeat
delay
to,
30
ms
during
horizontal
(The
cursor
crosses
more
character
spaces
when
moving
when
moving
the
same
distance
vertically.)
Permit
any
key
to
be
repeated
when
the
desired
key
simultaneously
with
any
repeat
key.
2.3.1.8
IN-OUT
Decoders
(Figure
2-5)
cursor
movement.
horizontally
than
is
pressed
nearly
Certain
memory
instructions
instruct
the
CPU
to
transfer
data
either
into
or
out
of
an
I/0
device
rather
than
Workstation
memory.
These
instructions
are
designated
IN
and
OUT,
followed
by
two-digit
hex
identifiers.
When
the
CPU
receives
an
IN
or
OUT
instruction,
the
IN-OUT
decoders
identify
the
device.
For
example,
a
signal
from
the
IN
decoder
(during
an
appropriate
IN
instruction)
causes
the
keyboard
interface
to
place
a
character
code
onto
the
data
bus.
The
instruction
sequence
causes
the
CPU
to
examine
the
character
and
store
it
in
the
CRT
memory
buffer,
to
be
displayed
on
the
CRT
display.
2-7
