Wareforce DG-E - SPECIFICATIONS; MACHINE DIMENSIONS; FRAME DIMENSIONS

07610-003-67-17-K
2
Delta 5-E Installation, Operation, and Service Manual 07610-003-37-08-J
Issued: 05-25-2007 Revised: 05-09-16
SECTION 1: SPECIFICATION INFORMATION
DIMENSIONS
3
21 1/4
(540 mm)
17
(432 mm)
20
(508 mm)
C
A
21 1/4
(540 mm)
B
7 3/4
(197 mm)
39
(991 mm)
6 3/4 (171 mm)
6 (152 mm)
12 1/4
(311 mm)
36 3/4
(933 mm)
24 1/2
(622 mm)
25 1/4
(642 mm)
C
A
B
3 (76 mm)
A - Incoming Water Connection
B - Drain Connection - 2" IPS
C - Electrical Connection Point
NOTE: All vertical dimensions are
at lowest point due to adjustable
bullet feet and may be raised an
additional 2 3/4".
11 1/2
(292 mm)
DISH
CLEARANCE
FRAME DIMENSIONS
Width ......................................................................................................24 1/2” (622 mm)
Depth .....................................................................................................25 1/4” (641 mm)
Depth with Front Door Open ................................................................. 36 3/4” (933 mm)
Height ....................................................................................................39” (990 mm)
Maximum Wash Chamber Clearance ................................................... 11 1/2” (292 mm)

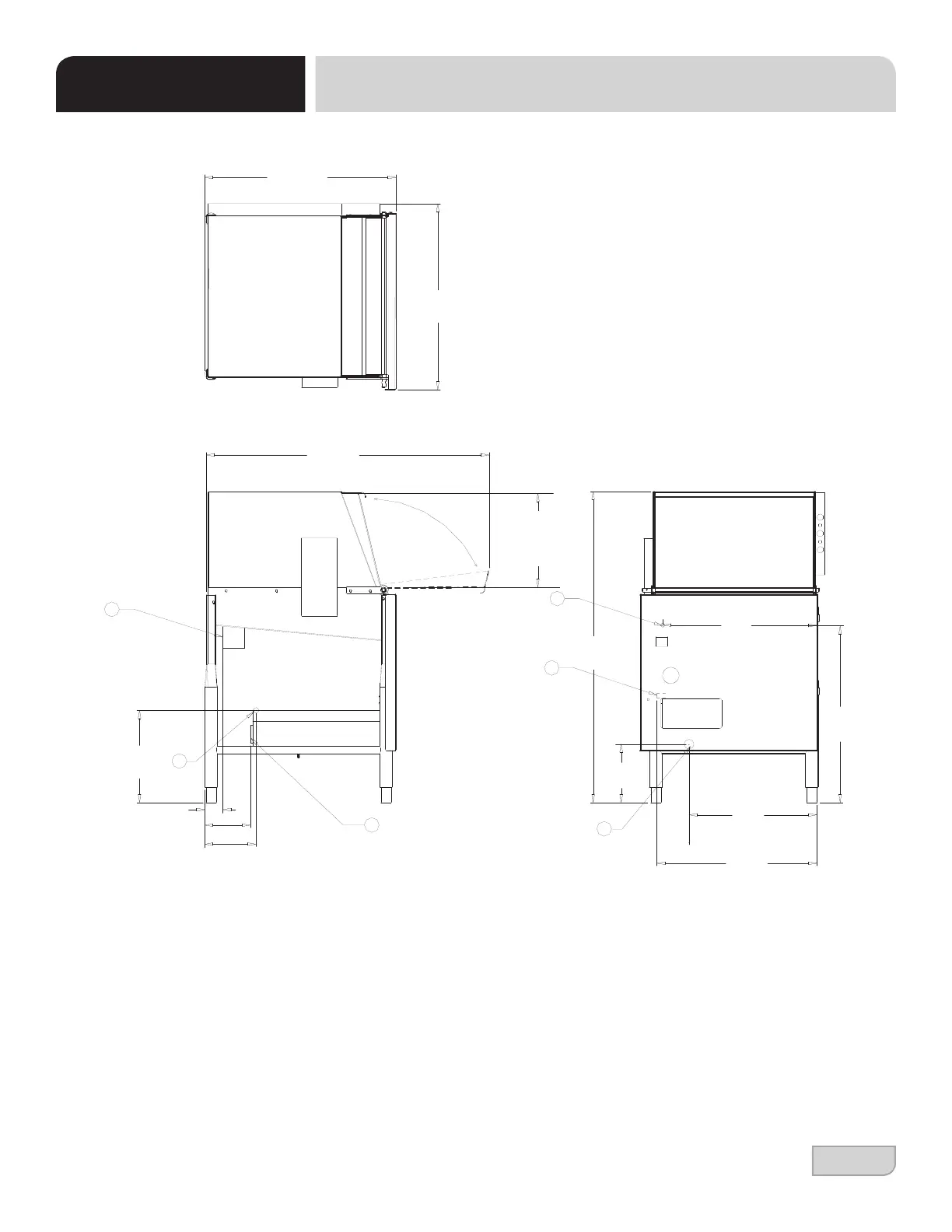

MACHINE DIMENSIONS
SPECIFICATIONS
A - Incoming Water Connection
B - Drain Connection - 2” NPT
C - Electrical Connection Point
All dimensions from the oor can be
increased 2 3/4” with the machine’s
adjustable feet.
”
”
”
”
”
”
”
”
”
”
”
”
”
”
