Wareforce DG-E - ELECTRICAL POWER CONNECTIONS; VOLTAGE CHECK; SURROUNDING AREA; TEMPERATURE SETPOINTS

07610-003-67-17-K
7

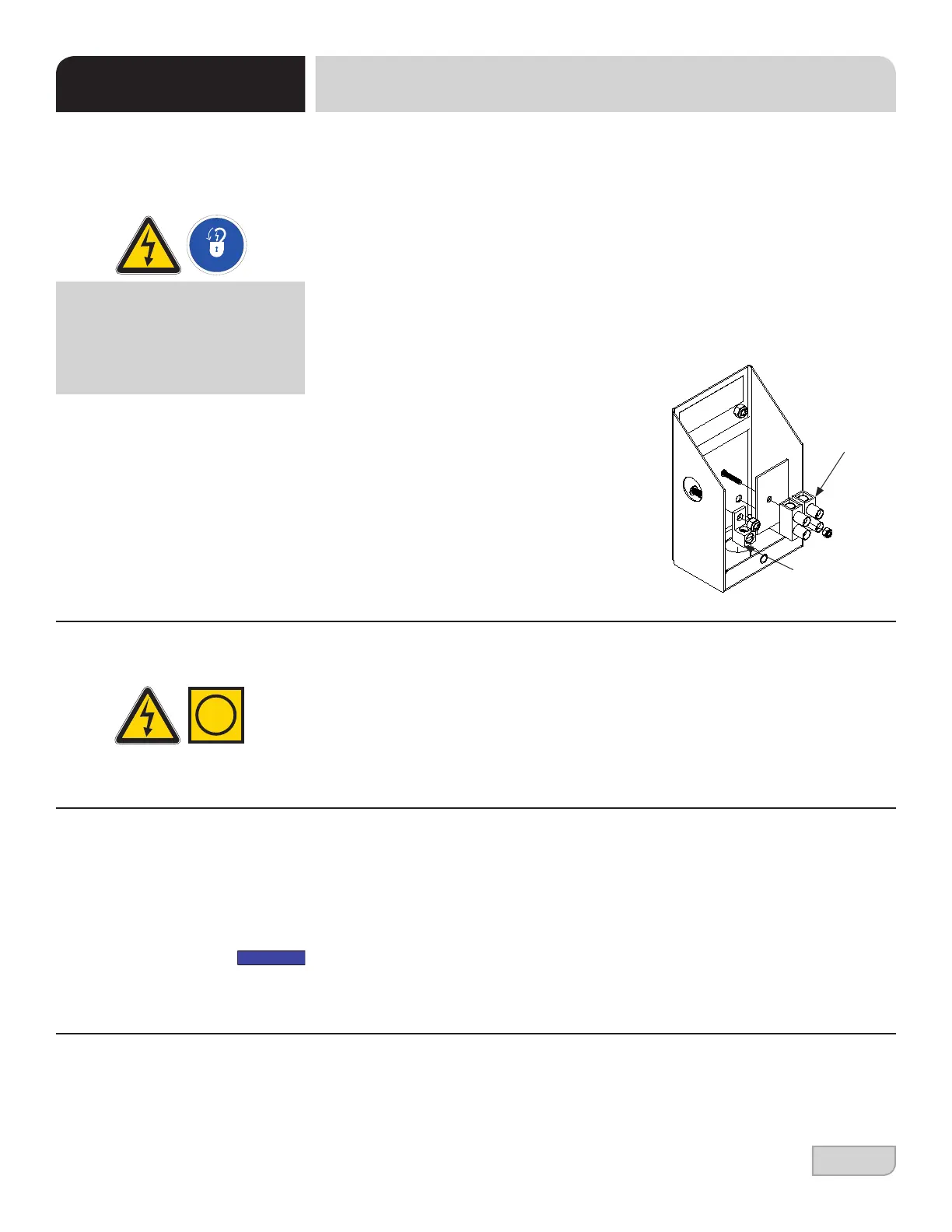

Ground Lug
Power Block
INSTRUCTIONS
INSTALLATION
Electrical and grounding conductors must comply with the applicable portions of the
National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.
The data plate is located at the front-left of the dishmachine. Refer to the data plate for
machine operating requirements, machine voltage, total amperage, and serial number.
Remove the connection box lid to install the incoming power lines. Install 1/2” conduit
into the pre-punched holes in the back of the control box. Route power wires and
connect to power block and grounding lug. Install the service wires to the appropriate
terminals as they are marked on the terminal block. Install the grounding wire into
the lug provided. It is recommended that “DE-OX” or
another similar anti-oxidation agent be used on all
power connections.
Apply power to the dishmachine. Check the incoming power at the terminal block
and ensure it corresponds with the voltage listed on the data plate. If not, contact a
qualied service agency to examine the problem. Do not run dishmachine if voltage
is too high or too low. Shut off the service breaker and advise all proper personnel
of the location of the breaker and any problems. Replace the connection box lid and
tighten-down the screws.
This is a commercial dishmachine and reaches temperatures that can exceed those
generated by a residential machine. Therefore, any surrounding countertops, cabinets,
ooring material, and suboor material must be designed and/or selected with these
higher temperatures in mind.
NOTE: Any damage to surrounding area that is caused by heat and/or moisture
to materials that are not recommended for higher temperatures will not be covered
under warranty or by the manufacturer.
The temperature setpoints on this unit have been set at the factory. They should
only be adjusted by an authorized service agent.
TEMPERATURE
SETPOINTS
SURROUNDING AREA
VOLTAGE CHECK
ELECTRICAL POWER
CONNECTIONS
Disconnect electrical
power at the breaker or
disconnect switch and
tag-out in accordance with
procedures and codes.
i
NOTICE
