Wareforce DG-E - CHEMICAL FEEDER EQUIPMENT; PRIMING CHEMICAL FEEDER PUMPS

07610-003-67-17-K
8
This equipment is not recommended for use with deionized water or other aggressive uids.
Use of deionized water or other aggressive uids will result in corrosion and failure of
materials/components and will void the manufacturer's warranty.
The bottom of the chemical container cannot be located any higher than 8” from the
oor. If the unit is equipped with the 6” or 18” table stand, the highest position will be
14” or 26” from the oor, respectively.
This dishmachine is supplied with detergent, rinse-aid, and sanitizer chemical feeder
pumps.
Locate the open ends of the chemical tubes with the tube stiffeners and place each
one in the appropriate container.
A. Red Tubing = Detergent B. Blue Tubing = Rinse-aid
C. White Tubing = Sanitizer
Chemical feeder pumps need priming when the machine is rst installed or if the
chemical lines have been removed and air was allowed to enter.
1. Verify that the proper chemical tube stiffener inlet is in the proper container.

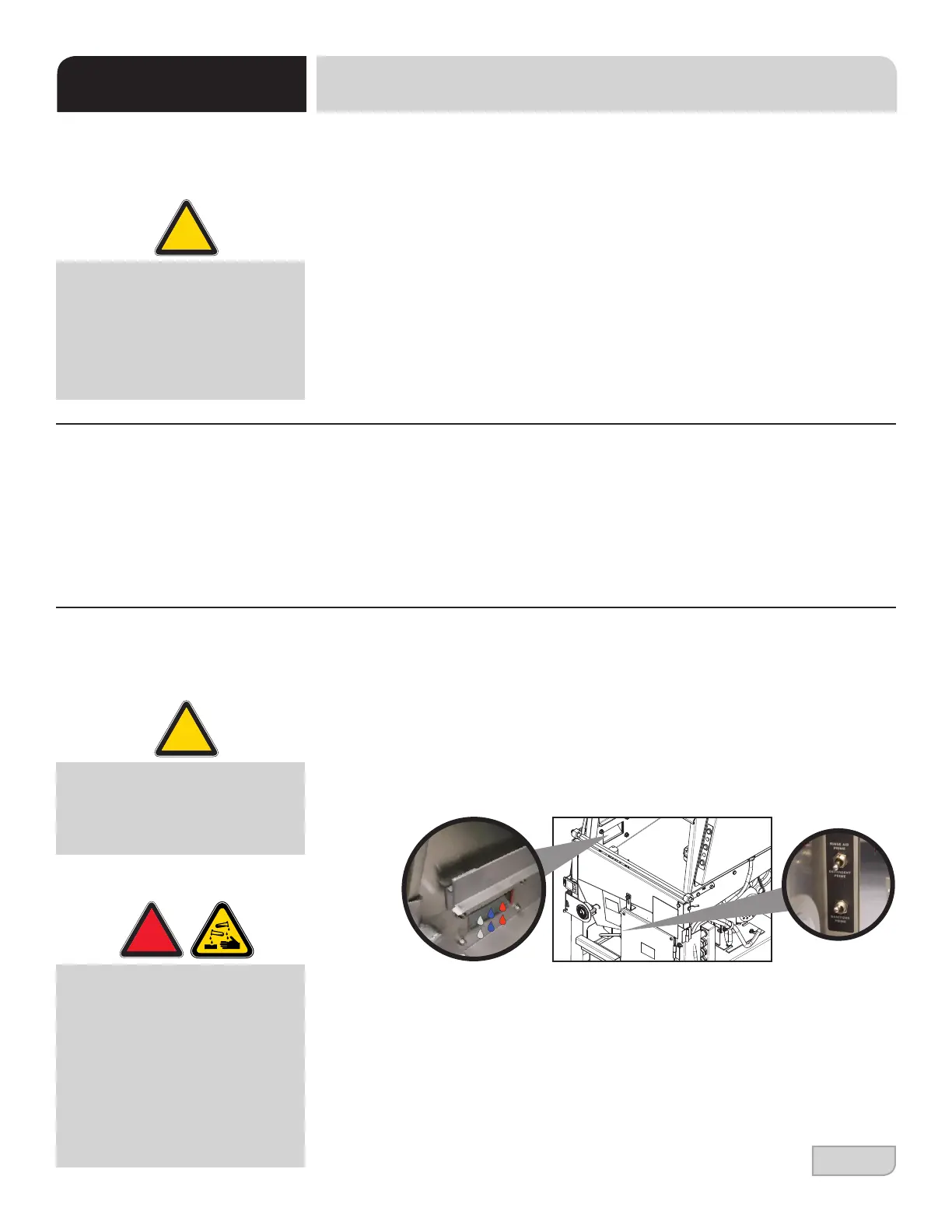

2. Use the prime switches located on the panel inside the door to prime each
pump. The switches are clearly marked with the type of chemical.
3. To prime the pumps, hold the switch until the chemical can be observed entering
the sump.
4. Detergent is dispensed as required during the wash cycle by the timer. The
amount of detergent might need to be adjusted depending on water quality and
type of detergent.
5. Rinse-aid is dispensed as required into the nal rinse. The amount of rinse-aid
might need to be adjusted depending on water hardness and results.
6. Sanitizer is dispensed into the final rinse. The amount of sanitizer might need to
be adjusted depending on the concentration.
CHEMICAL FEEDER
EQUIPMENT
PRIMING CHEMICAL
FEEDER PUMPS
WARNING: Some
dishwashing chemicals
might cause chemical
burns. Wear protective
gear when handling these
chemicals. If any skin
contact occurs, follow the
instructions provided
with the chemicals.
TO PREPARE
CHEMICAL FEEDER
PUMPS FOR
OPERATION
INSTRUCTIONS
INSTALLATION
!
WARNING
CAUTION: Chlorine-based
sanitizers can damage the
machine if the chemical
solution is too strong.
Contact the chemical
supplier for information.
!
CAUTION
CAUTION: Water must
be in the sump and wash
tank before dispensing
chemicals.
!
CAUTION
