Wareforce DG-E - CHEMICAL FEEDER PUMP COMPONENTS

07610-003-67-17-K
21
PARTS SECTION
Technical Manual (07610-003-92-84)
25
PageCreated:01/30/2012
Revised:N/A
CHEMICAL FEEDER PUMP COMPONENTS
Motor, 14 RPM 115V
Rinse Aid Feeder Pump
04320-111-35-13
Motor, 14 RPM 240V
Rinse Aid Feeder Pump
04320-111-47-46
Motor, 36 RPM 115V
Detergent/Sanitizer Feeder Pump
04320-111-35-14
Motor, 36 RPM 240V
Detergent/Sanitizer Feeder Pump
04320-111-47-47
Rear Housing
04320-111-37-09
Screw, 8-32 x 3/8”
Phillips Pan Head
2 per
05305-011-37-07
Screw, 8-32 x 1/2” Phillips
Flat Head
2 per
05305-011-37-06
Squeeze Tube, Detergent/Sanitizer
(Use with the red roller.)
05700-111-35-29
Clear Squeeze Tube, Rinse Aid
(Use with the white roller.)
05700-011-76-41
Tube, 3/16 x 8” Clear Tygoprene
05700-003-22-89
Roller, Red (Detergent/Sanitizer)
04320-111-36-70
Roller, White (Rinse Aid)
04320-002-82-28
If using Tygoprene Tubing:
Roller, White
04320-002-82-28
Roller, Black
04320-111-65-27
Front Housing
04320-111-37-08
Screw, 6-32 x 3/4”
Phillips Pan Head
4 per
05305-011-37-05
Chemical Feeder Pump Kit Assembly, 36 RPM w/
Motor 120V (Complete) 05700-003-25-02
Chemical Feeder Pump Kit Assembly, 14 RPM w/
Motor 120V (Complete) 05700-003-25-03
1
2
3
5
4
6
7
8

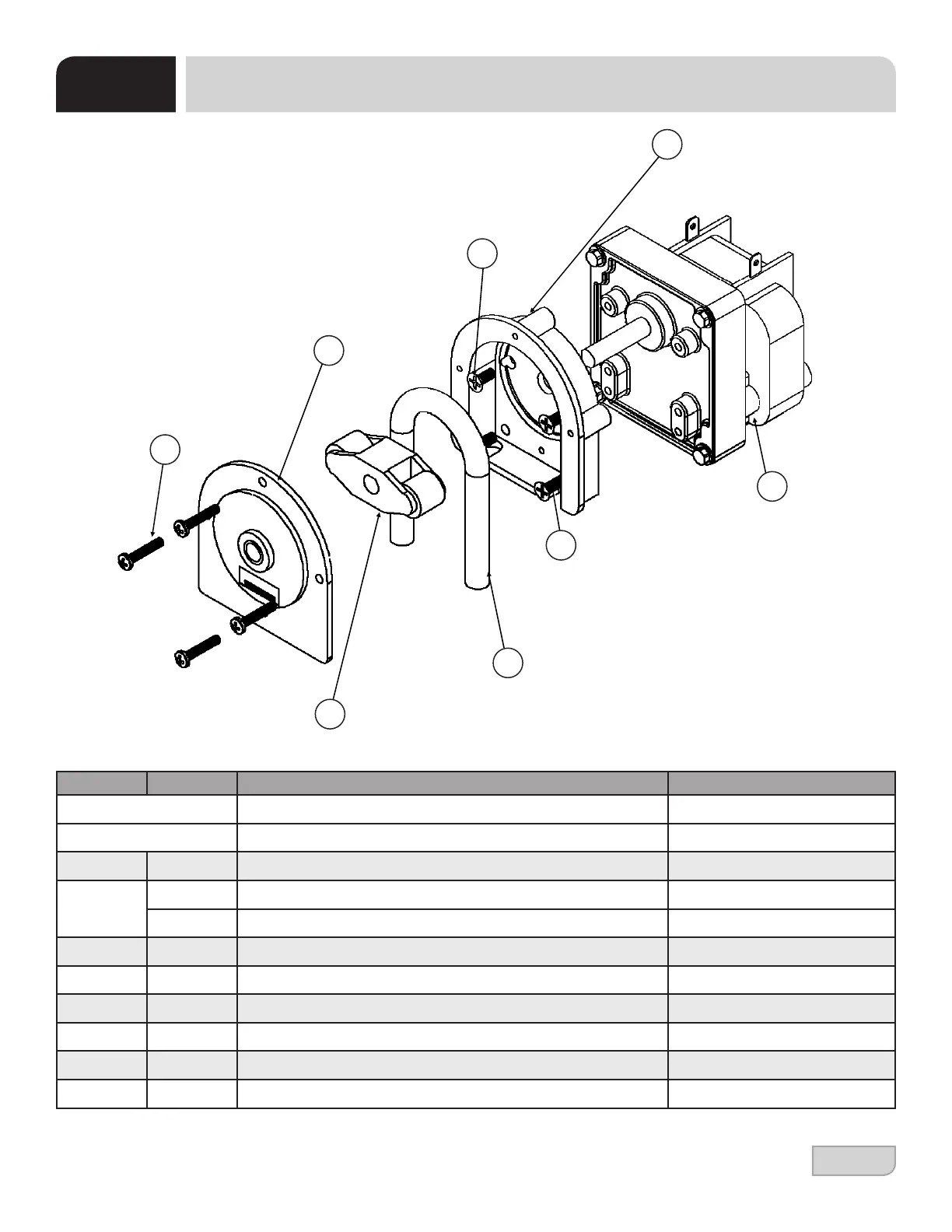

CHEMICAL FEEDER PUMP COMPONENTS
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete Assembly with Motor, 36 RPM 05700-003-78-74
Complete Assembly with Motor, 14 RPM 05700-003-31-86
1 1 Rear Housing 04320-111-37-09
2
1 Motor, 14 RPM 115 V Rinse-aid Feeder Pump 04320-111-35-13
1 Motor, 36 RPM 115 V, Detergent/Sanitizer Feeder Pump 04320-111-35-14
3 2 Screw, 8-32 x 1/2” Phillips Flat Head 05305-011-37-06
4 1 Tube, 3/16" x 8” Clear Tygoprene 05700-003-22-89
5 1 Roller, White 04320-002-82-28
6 4 Screw, 6-32 x 3/4” Phillips Pan Head 05305-011-37-05
7 1 Front Housing 04320-111-37-08
8 4 Screw, 8-32 x 3/8” Flat Head 05305-011-37-07
