Watson-Marlow 720DuN User Manual 48

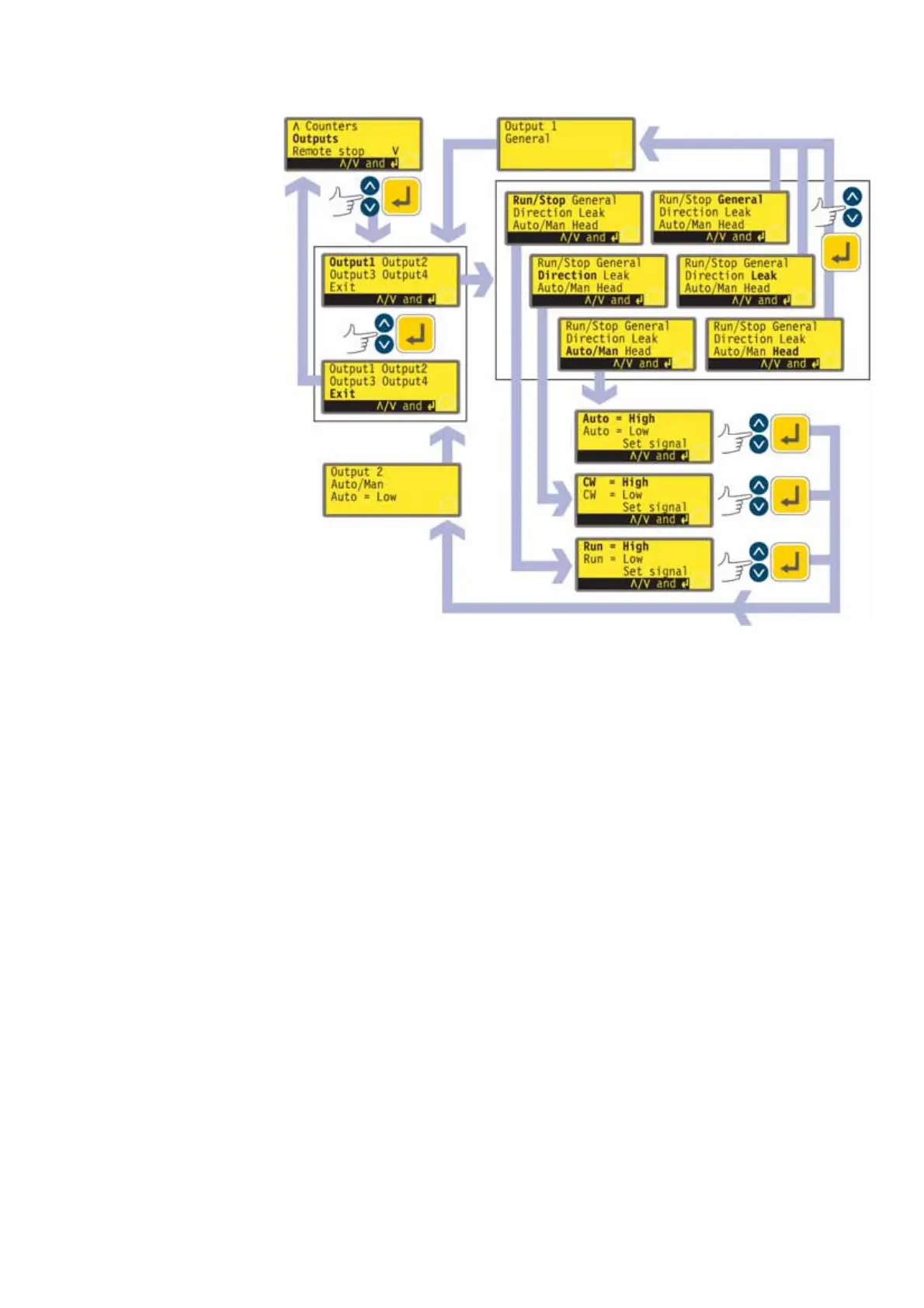

In the third screen of the Setup menu select Outputs using the UP and
DOWN keys. Press ENTER to confirm your choice.
The pump displays a screen allowing you to configure each of the four outputs,
or to exit this menu. Use the UP and DOWN keys to choose and press ENTER
to confirm your decision.
If Output 1 is chosen, the pump displays the six options.
Selecting General, Leak or Head using the UP and DOWN keys and con-
firming the choice by pressing ENTER configures that option to Output 1,
displays a confirmation screen, and returns the user to the Output selection
screen.
Selecting Run/Stop, Direction or Auto/Man using the UP and DOWN
keys and confirming the choice by pressing ENTER displays screens allowing
the user to configure Run to High or Low, Clockwise to High or Low, and
Auto to High or Low respectively. Choose using the UP and DOWN keys
and press ENTER to confirm. The option chosen is configured to Output 1.
The pump displays a confirmation screen, and returns the user to the
Output selection screen.
The user can configure Output 2, Output 3 and Output 4 in the same way, or
choose Exit.
If STOP is pressed during configuration, the previous setting for the output is
retained and the pump redisplays the Output selection screen.
If Exit is chosen, the pump returns the user to the third screen of the Setup
menu.
