Wayne P250 series - P250 Af;P265 F Ignitor Position

33

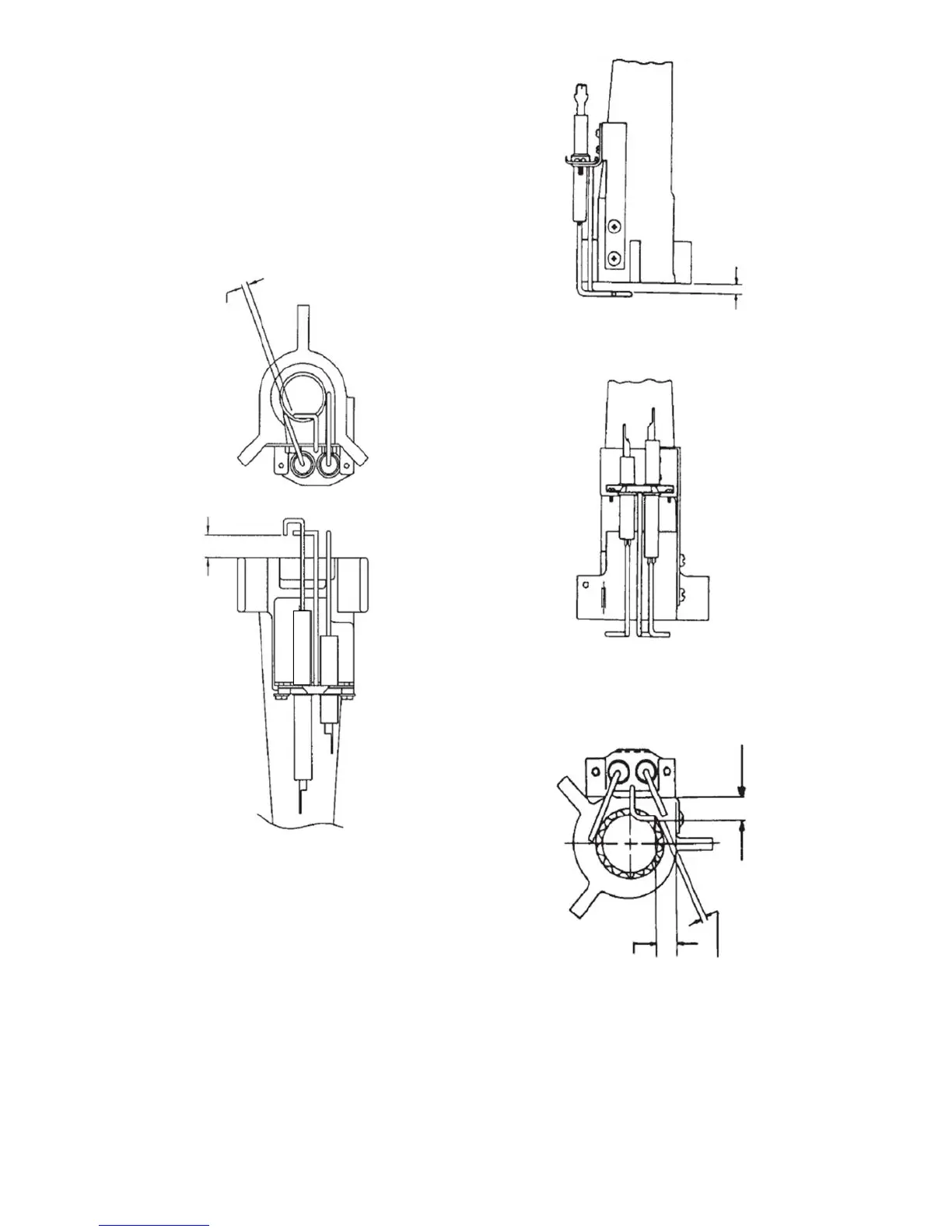

FIGURE 21
P250 DIRECT IGNITION
IGNITOR POSITION
7/16” (11.1 mm)
+/- 1/16” (1.6 mm)
1/4” (6.4 mm)
+/-
1/16” (1.6 mm)
1/8” (3.2 mm)
Gap
31/64” (12.3 mm)
+/-
1/16” (1.6 mm)
5/16” (7.9 mm)
1/8” (3.2 mm) Gap
P265 DIRECT IGNITION
IGNITOR POSITION
