Wayne P250 series - Wiring Diagrams; Direct Ignition System Wiring Diagrams

34
WIRING DIAGRAMS
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.

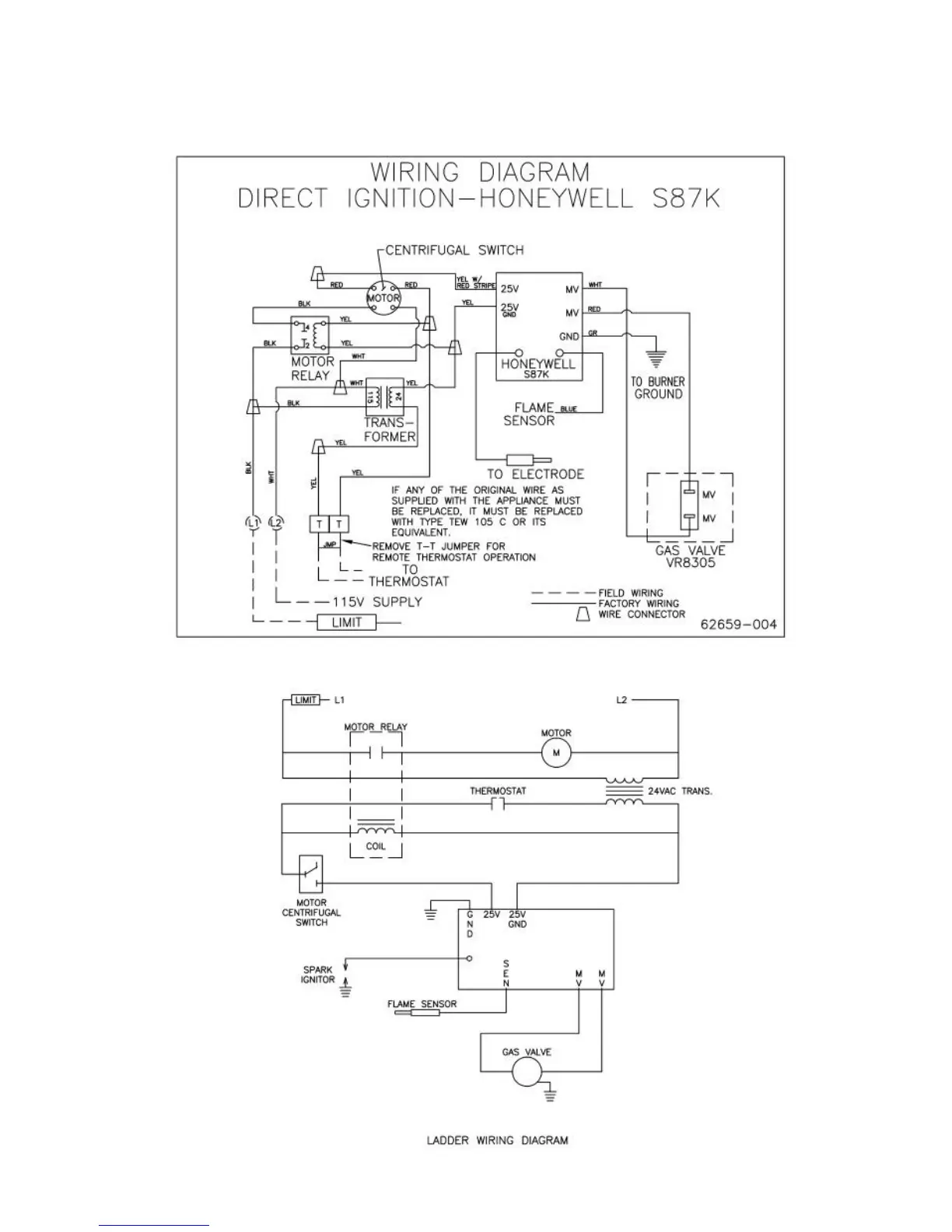

FIGURE 22: WIRING DIAGRAMS FOR GAS BURNER WITH DIRECT IGNITION-HONEYWELL
