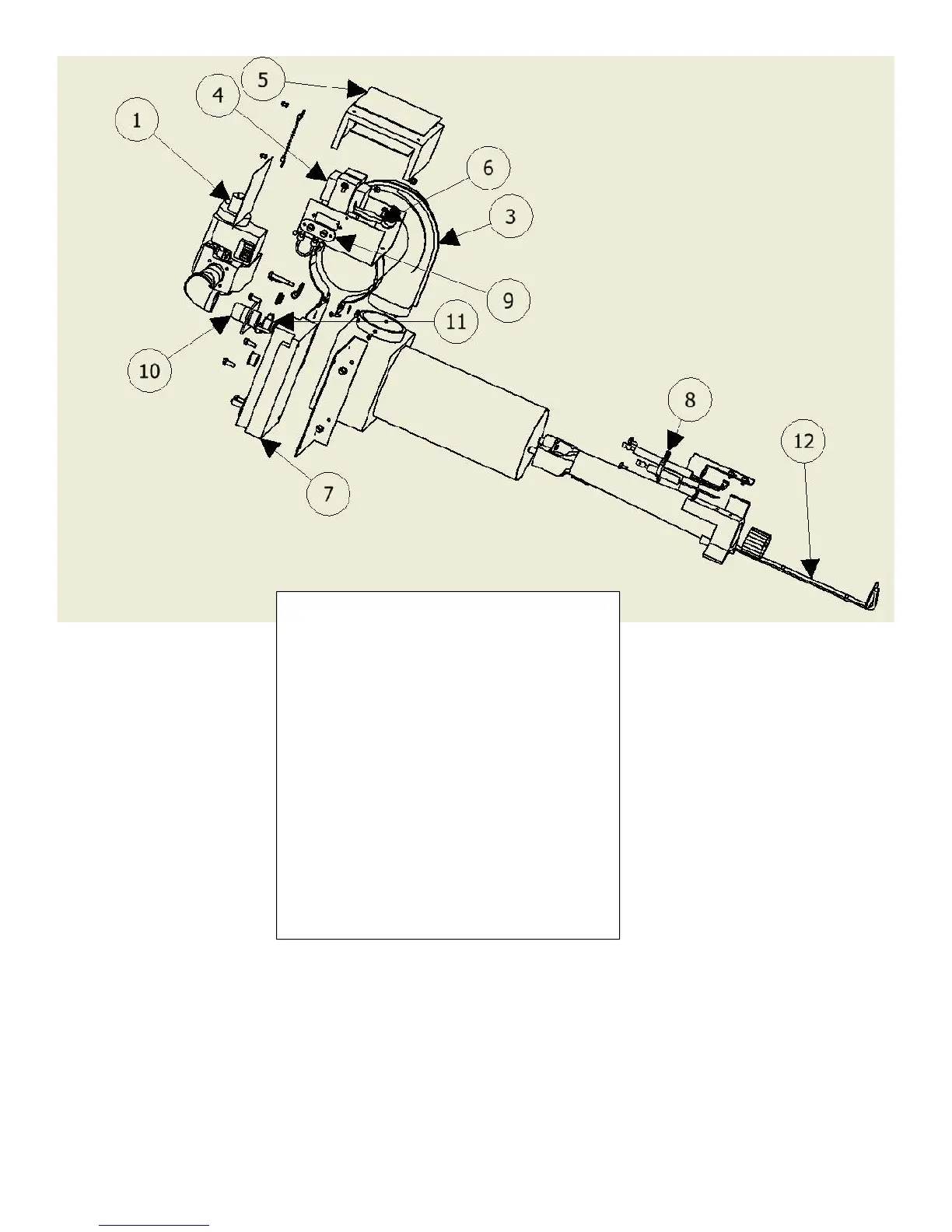

FIGURE 30: Left Side Exploded View of P250AF
Parts in Exploded View
1. Gas Valve
2. Air Shutter
3. Motor/Blower
4. Transformer
5. Model/Specification Label
6. Motor Relay
7. Ignition Control
8. Electrode/Sensor/Ground Rod Asm
9. T-T Terminal
10. Orifice Holder
11. Orifice
12. Flame spreader
