Thermo Top Evo 9Repair
901
9Repair
NOTE
The seals must always be replaced before assembling the
heater.
9.1 Dismantling and assembling heater

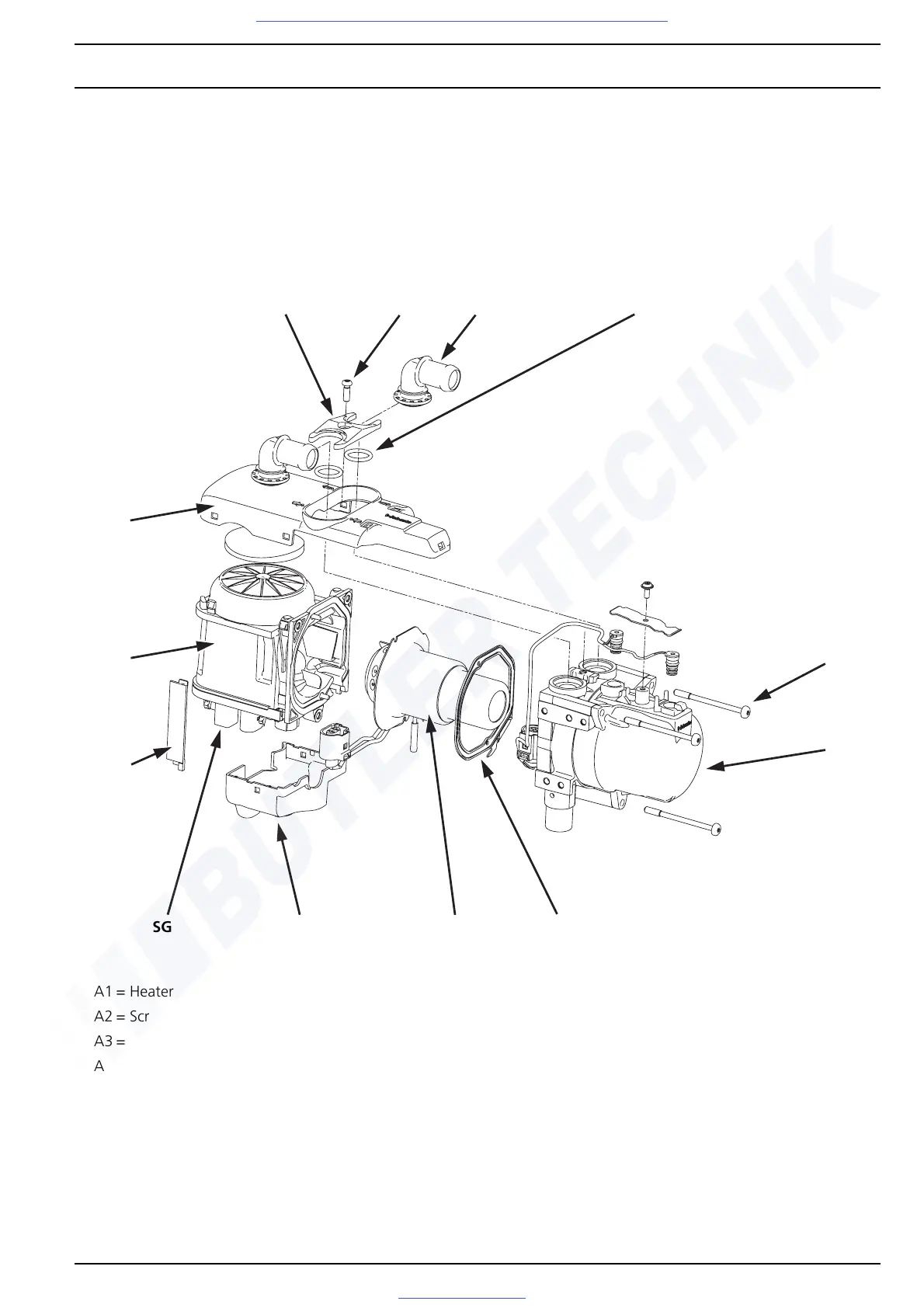

Fig. 901 Component illustration of Thermo Top Evo heater
A3
A1
A2 A4 A5
A6
W1
A7BA8SG
G1
A9
A1 = Heater cover
A2 = Screw
A3 = Retaining plate
A4 = Water connection piece
A5 = O-ring
A6 = Screw
A7 = Gasket
A8 = Connector cover
A9 = Cable cover
B = Burner unit
G1 = Fan housing
SG = Control unit
W1= Heat exchanger
