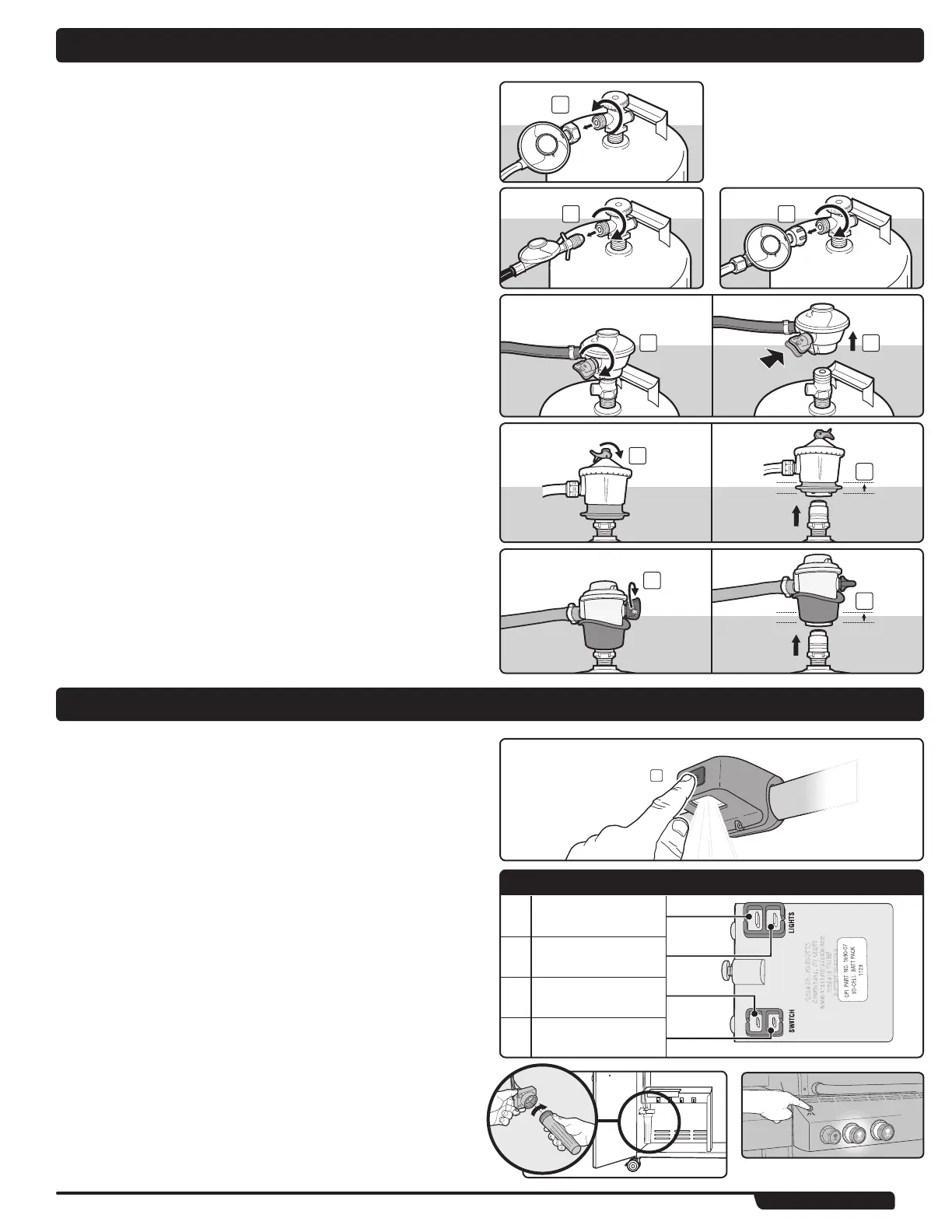

GAS INSTRUCTIONS
LIGHT FEATURES
REFILLING THE LPG CYLINDER
We recommend that you refill the LPG cylinder before it is completely empty. To refill, take
LPG cylinder to a “Gas Propane” dealer.
Removal of the gas supply cylinder:
A) Shut o gas supply and disconnect hose and regulator assembly from the cylinder.
Follow one of the specific regulator connection instructions illustrated based on your
regulator type.
a) Unscrew regulator fitting from tank turning anticlockwise (1).
b) Unscrew regulator fitting from tank turning clockwise (2) (3).
c) Turn regulator lever clockwise (4) to the o position. Push in on regulator lever
until it releases from tank (5).
d) Move regulator lever to the o position (6) (8). Slide the collar of the regulator up
(7) (9) to disconnect from tank.
B) Exchange empty cylinder for a full cylinder.
◆
RECONNECT THE LPG CYLINDER
Refer to “CONNECTING THE LPG CYLINDER.”
◆
GRILL LIGHT OPERATION
Press the AWAKE button to activate the grill light. The light has a ‘tilt sensor’ that will turn
on the light if the grill lid is opened and turn o the light when the grill lid is closed. If the
lid is left open or closed for more than 30 minutes, the grill light will deactivate. To turn the
light back on, press the AWAKE button (1).
NOTE: The light does not turn OFF by pressing the AWAKE button.
◆
ILLUMINATED CONTROL KNOBS
Your gas grill comes with control knobs that light up; allowing you to fine-tune heat
settings, even in low-light conditions.
Requires three “D” alkaline batteries. Do not mix old and new batteries or dierent types
of batteries (standard, alkaline or rechargeable). Battery housing is located inside the
cabinet on the left side.
To operate, activate power button.
◆
1
1
2 3
6
7
2 3
8
9
4 5
BATTERY HOUSING WIRING
1
BLACK WIRE
2
GREEN WIRE
3
RED WIRE
4
RED WIRE
1 2
3
4
1 2
3
4
