WEG SSW-07 User Manual

CHAPTER 3 - INSTALLATION AND CONNECTION
15
English
Figure 3.3 shows the installation of the Soft-Starter SSW-07 on the
surface of a mounting plate.
3.1.3.2 Mounting on
Surface

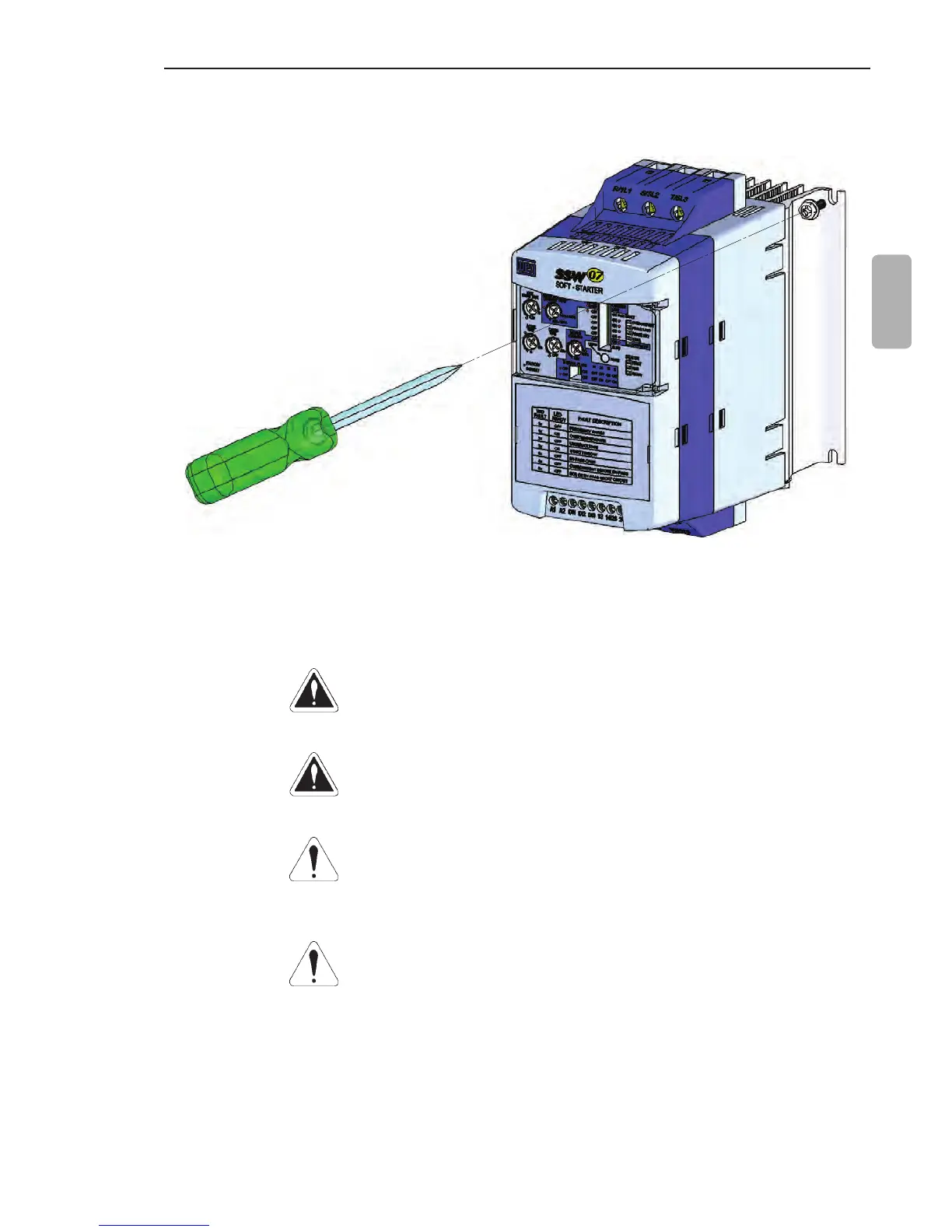

Figure 3.3 - Installation procedures of the Soft-Starter SSW-07 on a surface
3.2 ELECTRICAL
INSTALLATION
DANGER!
The Soft-Starter SSW-07 cannot be used as an emergency stop
device.
DANGER!
Be sure that the AC input power is disconnected before making any
terminal connection.
ATTENTION!
The information below may be used as a guide to achieve a proper
installation. Follow also the applicable local standards for electrical
installations.
ATTENTION!
If a power isolating contactor or circuit breaker with minimum voltage
coilisnotusedattherstpoweron,thenpoweruptheelectronics
rst,adjustthetrimpotsthatarenecessarytoputtheSSW-07into
operation and only after this energize the power section.
