WEG SSW-07 - CHAPTER 7 Options and Accessories; IP20 Kit

49
English
CHAPTER 7
OPTIONS AND ACCESSORIES
This chapter describes the optional devices that can be used with
Soft-Starter SSW-07.
Optional Description WEG Part Number
Plug-in Local Keypad 10935572
Remote Keypad Kit 10935649
1 m SSW-07 - Remote HMI Connection Cable 10050268
2 m SSW-07 - Remote HMI Connection Cable 10190951
3 m SSW-07 - Remote HMI Connection Cable 10211478
5 m SSW-07 - Remote HMI Connection Cable 10211479
7,5 m SSW-07 - Remote HMI Connection Cable 10050302
10 m SSW-07 - Remote HMI Connection Cable 10191029
Plug-in Kit for DeviceNet Communication 10935681
Plug-in Kit for RS-232 Communication 10935578
3 m RS-232 Connection Cable 10050328
10 m RS-232 Connection Cable 10191117
Plug-in Kit for RS-485 Communication 10935573
Ventilation Kit for Size 2 (Currents from 45 to 85 A) 10935650
Ventilation Kit for Size 3 (Currents from 130 to 200 A) 10935559
IP20 Kit for Size 3 (Currents from 130 to 200 A) 10935651
Size 4 IP20 kit (255 to 412 A current) 11059230
Plug-in Kit for Motor PTC 10935663
SuperDrive G2 Kit 10945062

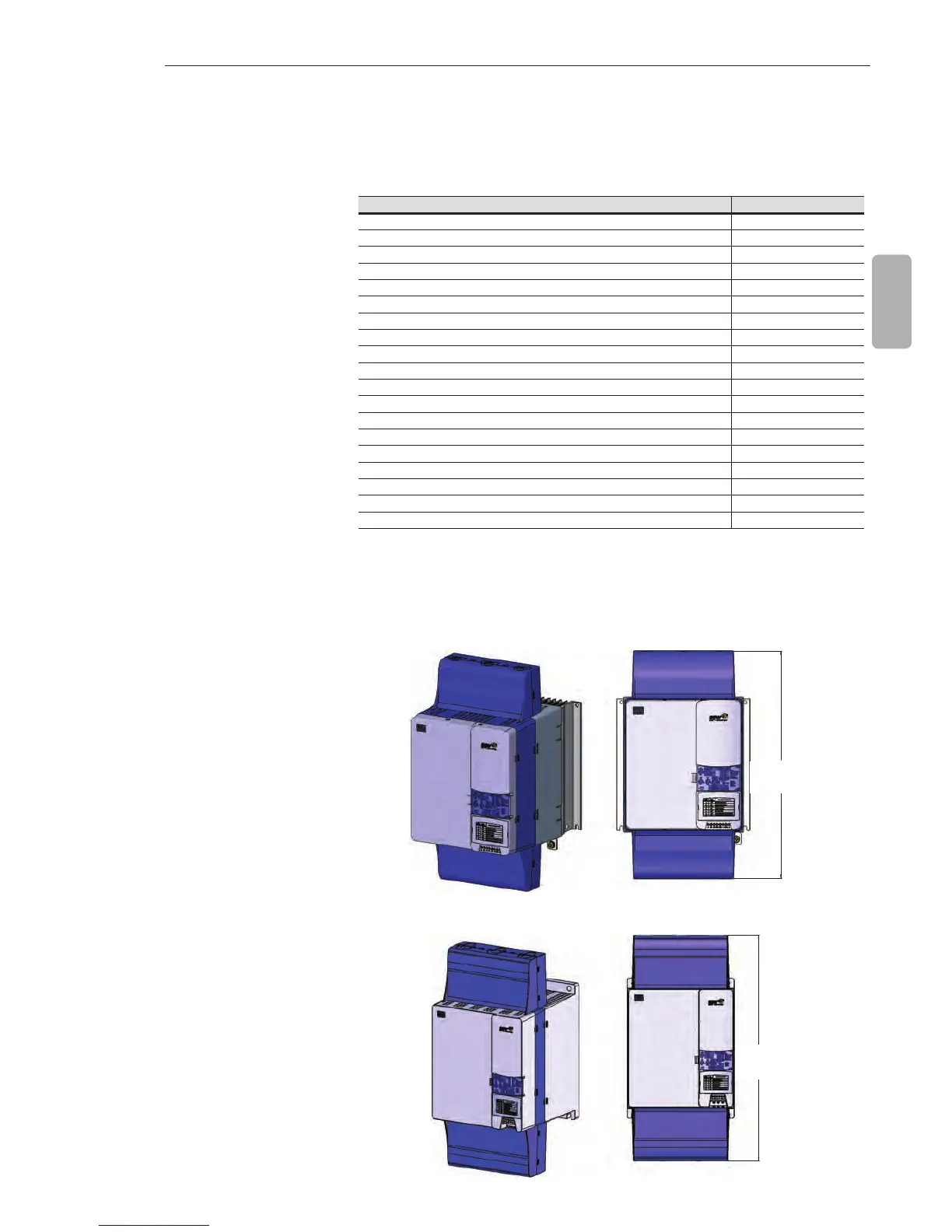

Table 7.1 - Optional description
The purpose of the IP20 KIT is to protect the user from the contact
with the live parts of the Soft-Starter.
382,50mm
383 mm
(15.1 in)
Figure 7.1 - IP20 kit size 3
483.50mm
484 mm
(19.1 in)
Figure 7.2 - IP20 kit size 4
7.1 IP20 KIT
