CHAPTER 4
SETTING THE SSW-07
This chapter describes how to make the necessary settings for the
correct functioning of the SSW-07.
DIP Switch Control
Type Setting

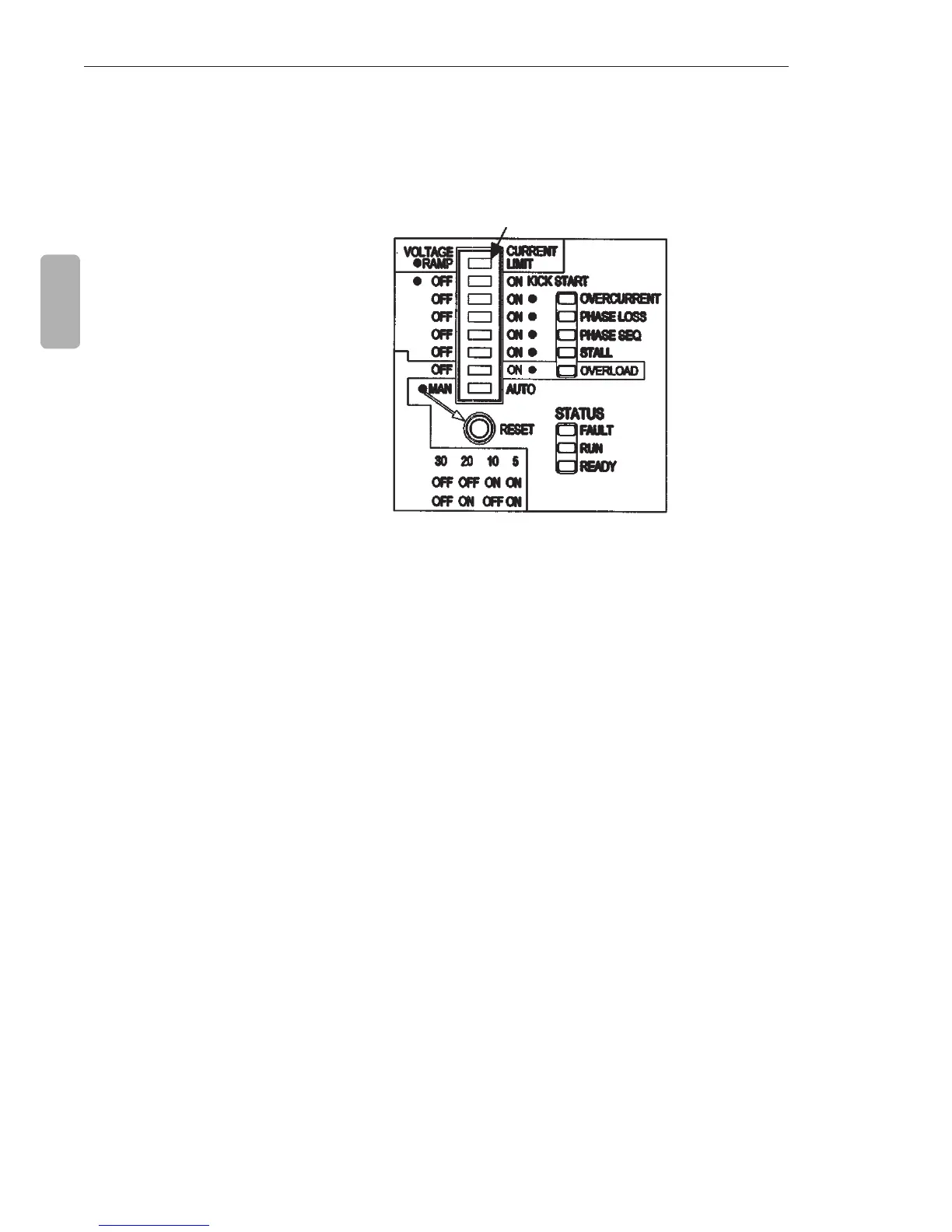

Figure 4.1 - Control type setting
Select the type of starting control that best adapts to the application.
Voltage Ramp Starting:
This is the most commonly used method. Very easy to program
and set.
The Soft-Starter SSW-07 imposes the voltage applied to the motor.
Generally applied to loads with a lower initial torque or a square
torque.
This kind of control can be used as an initial working test.
Current Limit Starting:
The maximum current level is maintained during the start, being set
according to the application necessities.
Generally applied to loads with a higher initial torque or a constant
torque.
This kind of control is used to adapt the start to the capacity limits
of the supply network.
