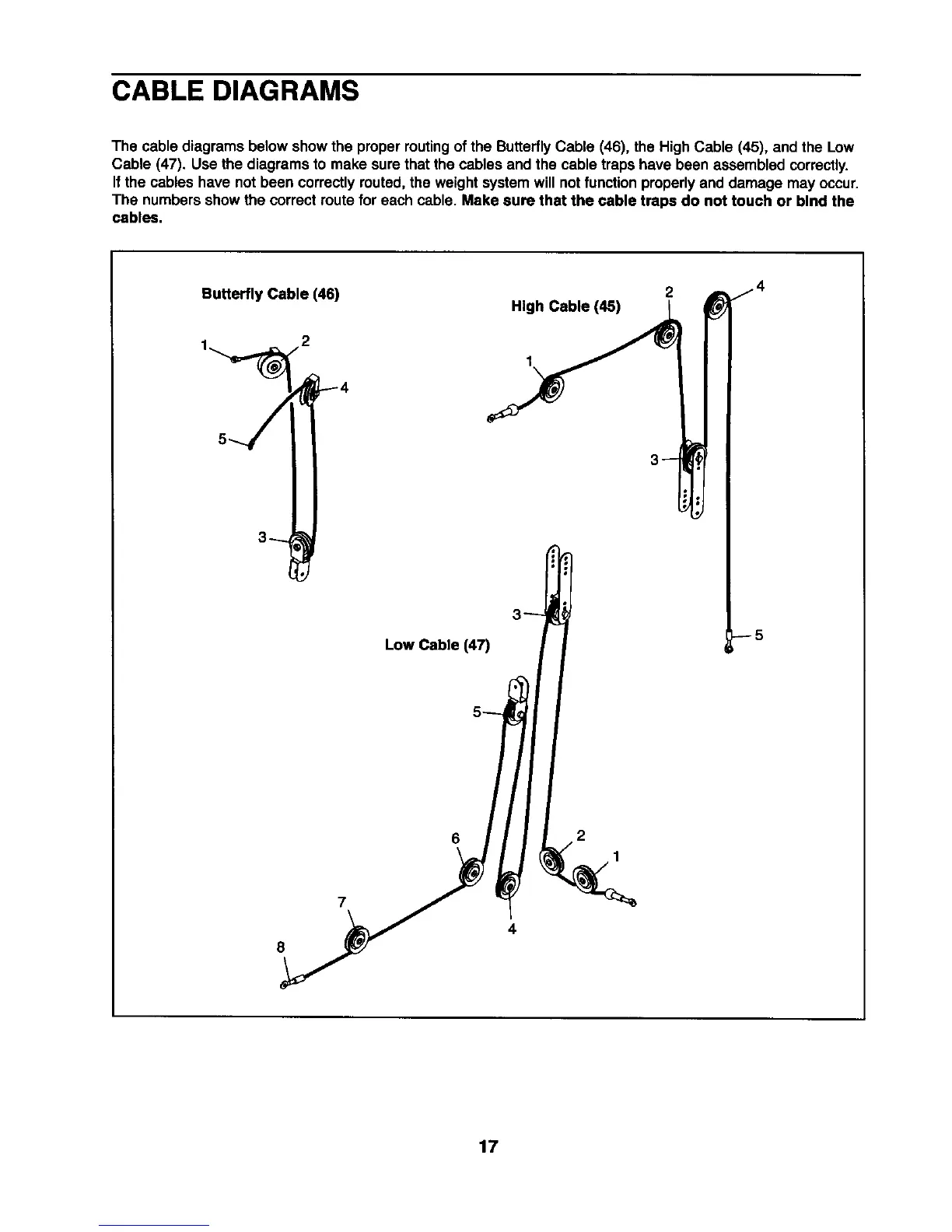

CABLE DIAGRAMS
The cable diagrams below showthe proper routingof the ButterflyCable (46), the High Cable (45), and the Low
Cable (47). Use the diagrams to make sure that thecables and the cable traps have been assembled correctly.
If the cables have not been correctlyrouted,the weight systemwill notfunction properlyand damage may occur.
The numbersshow the correct route for each cable. Make sure that the cable traps do not touch or bind the
cables.
Butterfly Cable (46)
High Cable (45)
1
2
8
Low Cable (47)
6
4
2
1
--5
