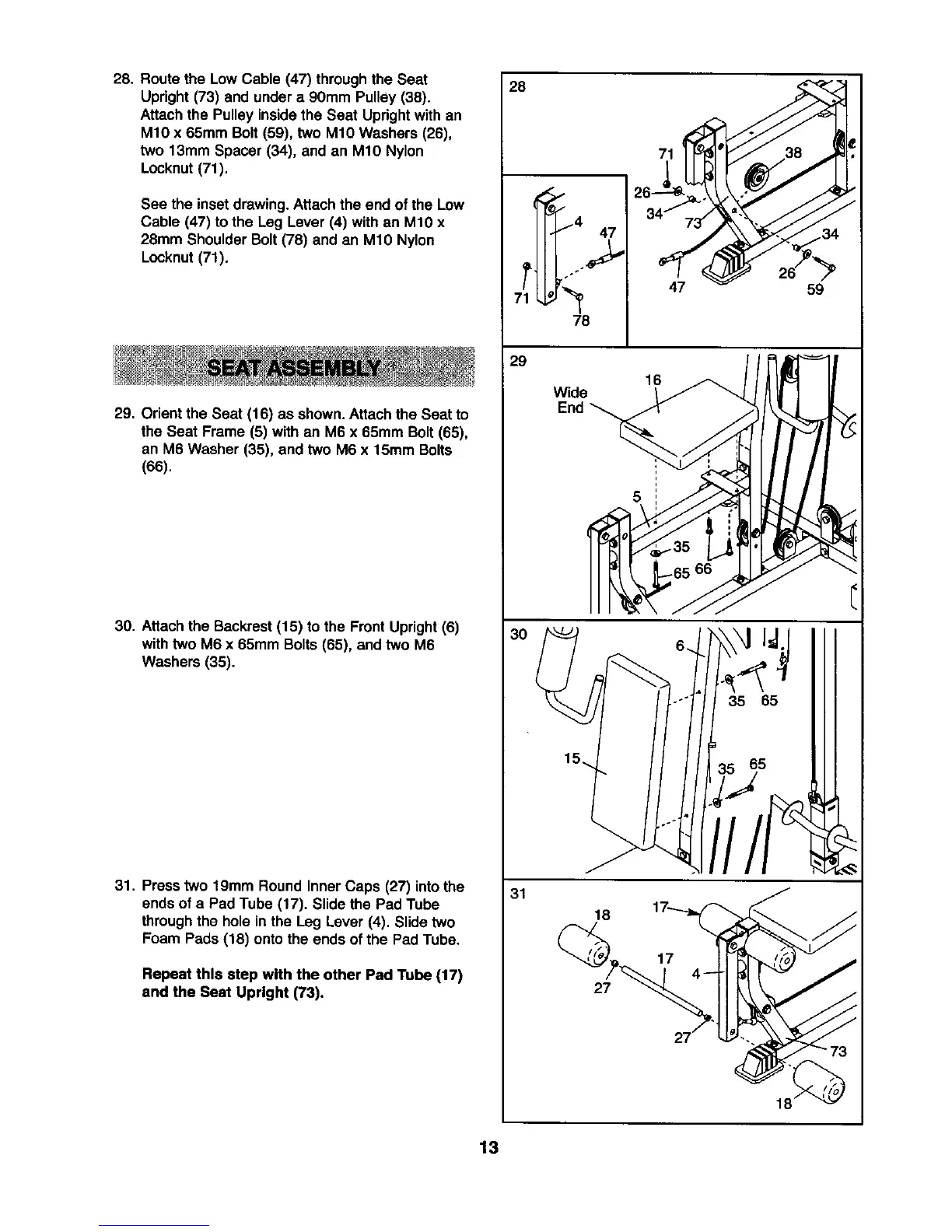

28. Route the Low Cable (47) throughthe Seat
Upright (73) and under a 90mm Pulley (38).
Attach the Pulley insidethe Seat Uprightwith an
M10 x 65mm Bolt (59), two M10 Washers (26),
two 13mm Spacer (34), and an M10 Nylon
Locknut(71).
See the inset drawing.Attach the end of the Low
Cable (47) to the Leg Lever (4) with an M10 x
28mm Shoulder Bolt (78) and an M10 Nylon
Locknut (71).
29. Orient the Seat (16) as shown. Attachthe Seat to
the Seat Frame (5) with an M6 x 65mm Bolt(65),
an M6 Washer (35), and two M6 x 15mm Bolts
(66).
30. Attachthe Backrest(15) to the FrontUpright (6)
withtwo M6 x 65mm Bolts(65), and two M6
Washers (35).
31. Press two 19mm Round Inner Caps (27) into the
ends of a Pad Tube (17). Slide the Pad Tube
throughthe hole in the Leg Lever (4). Slidetwo
Foam Pads (18) ontothe ends of the Pad Tube.
Repeat this step with the other Pad Tube (17)
and the Seat Upright (73).
28
T_4 47
78
29
30
31
47
59
Wide 1_
End _
5
66
II 5 Ill
18
27
18
13
