Weider 2100 User Manual

9
15. Wrap the Butterfly Cable (46) around a “V”-Pulley
(39). Attach the Pulley and a Long Cable Trap
(40) to the bracket on the Front Upright (6) with
an M10 x 55mm Bolt (69) and an M10 Nylon
Locknut (71). Be sure the Cable Trap is turned
to hold the Cable in the Groove of the Pulley.

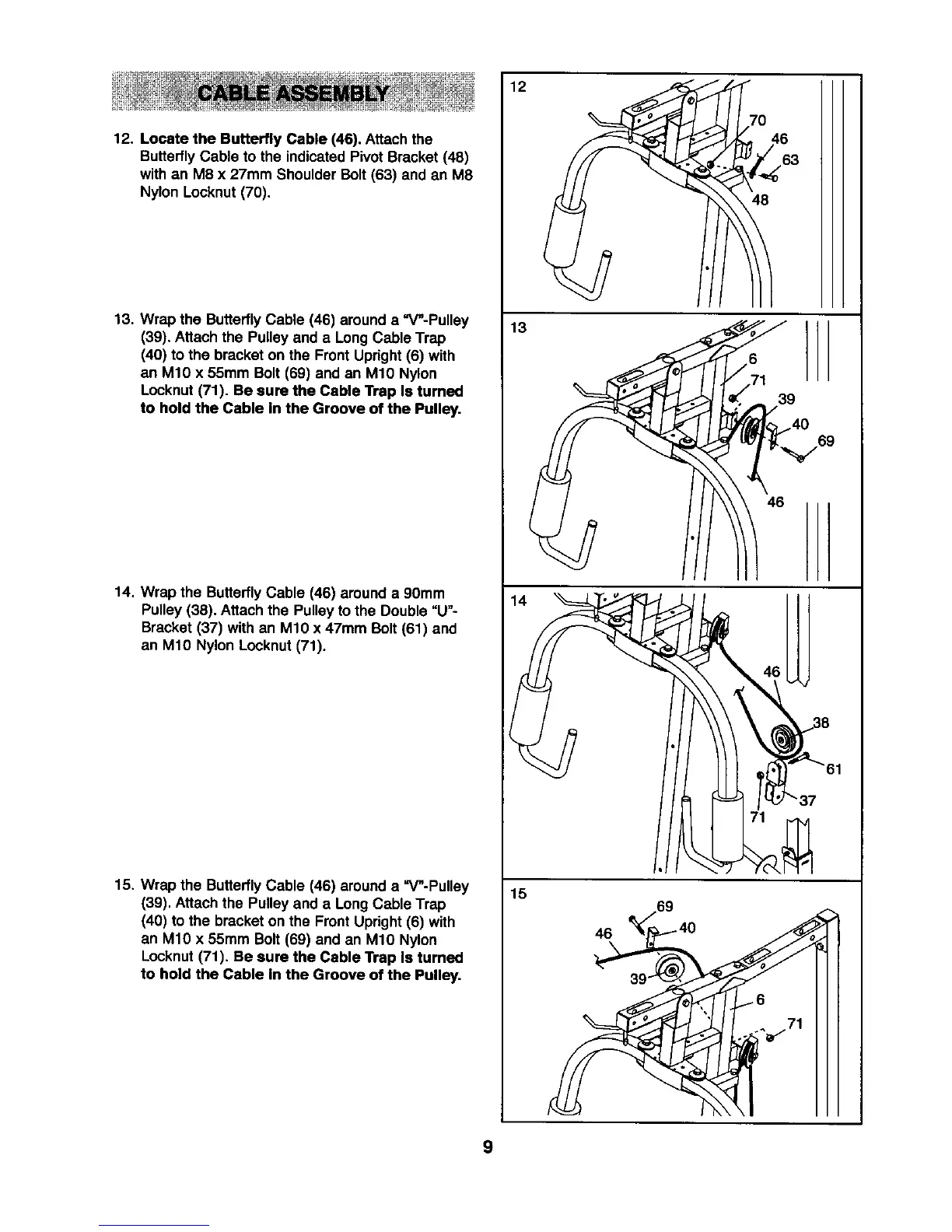

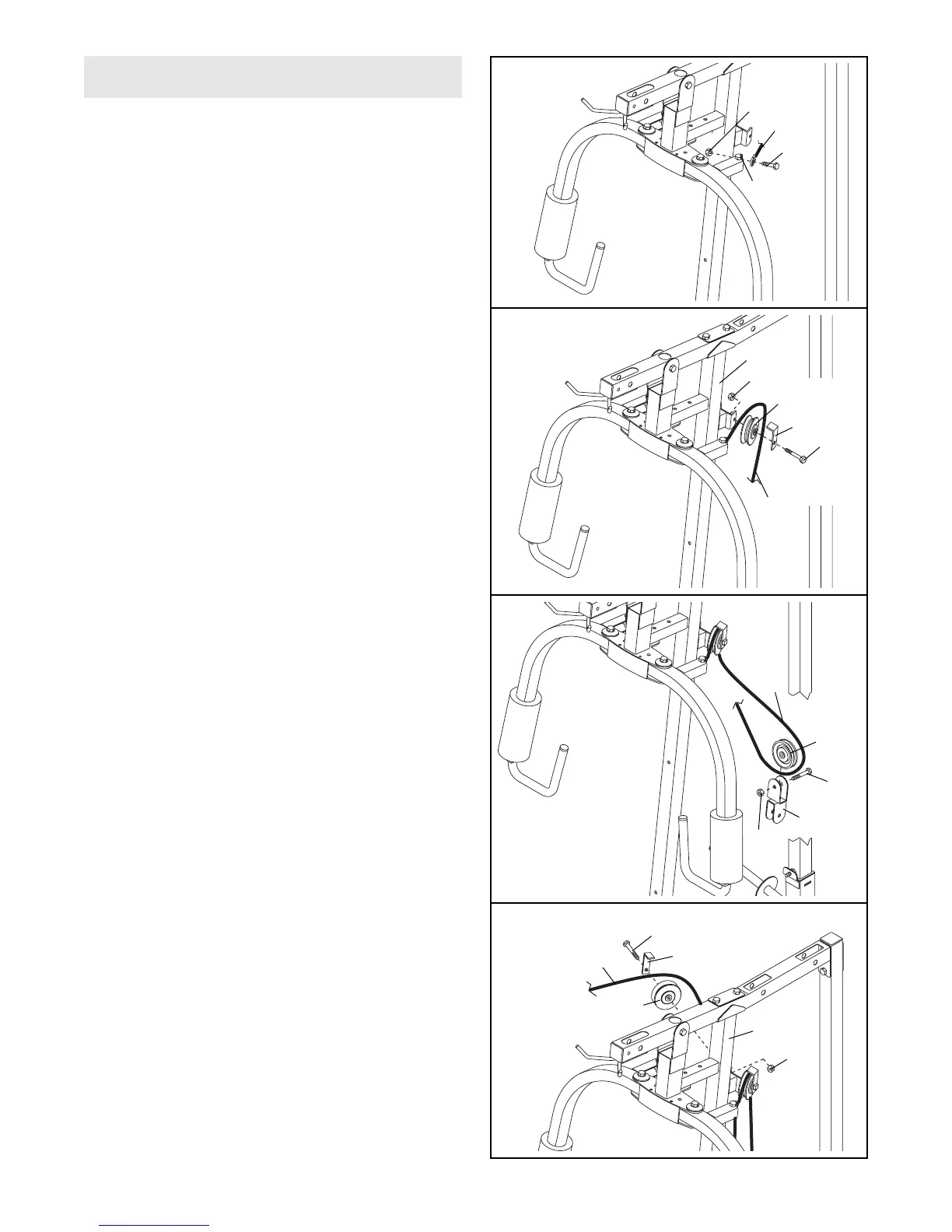

12. Locate the Butterfly Cable (46). Attach the
Butterfly Cable to the indicated Pivot Bracket (48)
with an M8 x 27mm Shoulder Bolt (63) and an M8
Nylon Locknut (70).
13. Wrap the Butterfly Cable (46) around a “V”-Pulley
(39). Attach the Pulley and a Long Cable Trap
(40) to the bracket on the Front Upright (6) with
an M10 x 55mm Bolt (69) and an M10 Nylon
Locknut (71). Be sure the Cable Trap is turned
to hold the Cable in the Groove of the Pulley.
14. Wrap the Butterfly Cable (46) around a 90mm
Pulley (38). Attach the Pulley to the Double “U”-
Bracket (37) with an M10 x 47mm Bolt (61) and
an M10 Nylon Locknut (71).
70
48
46
63
12
69
46
40
71
6
39
13
61
37
38
71
46
14
6
39
46
69
71
40
15
CABLE ASSEMBLY
