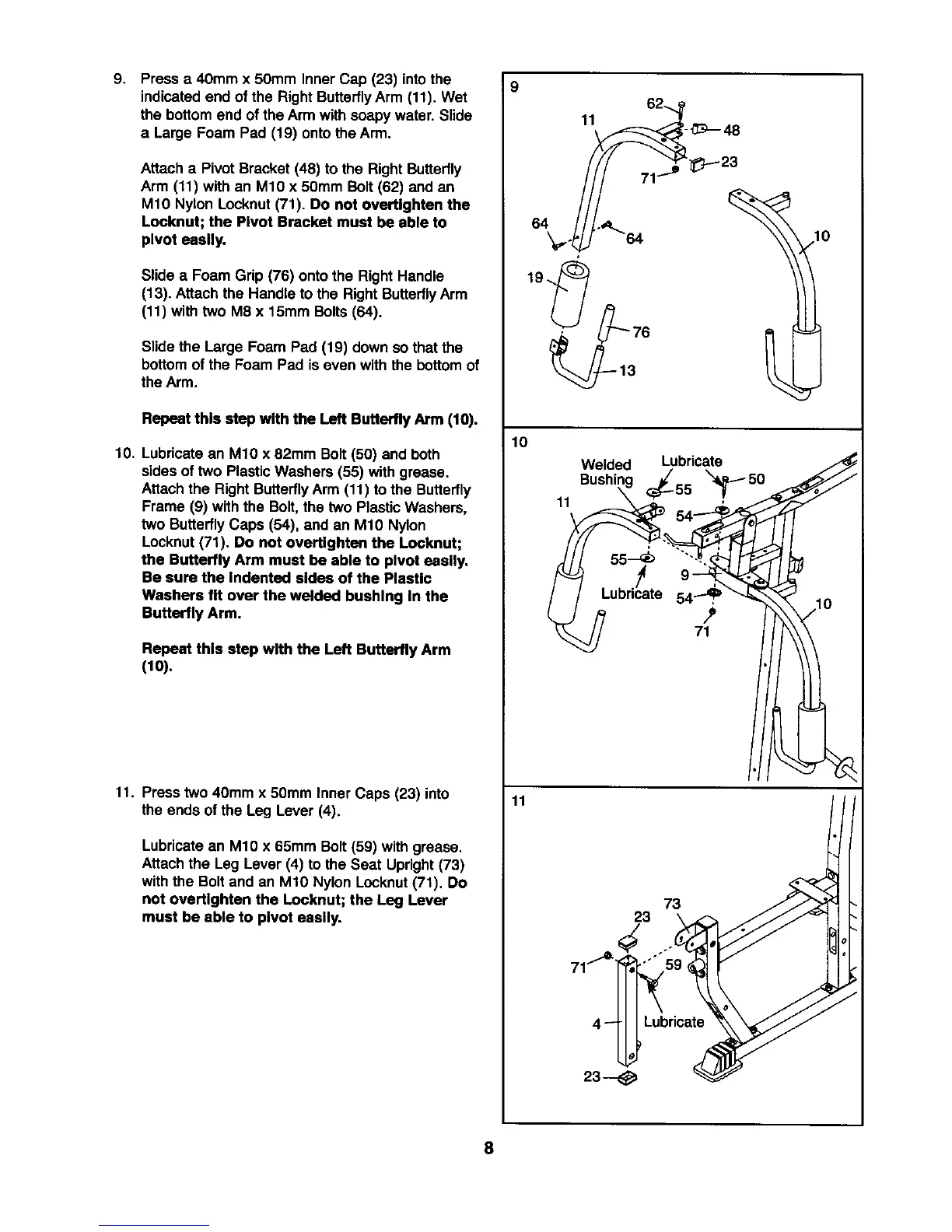

9. 9
Press a 40mm x 50mm Inner Cap (23) intothe
indicatedend of the RightButterflyArm (11). Wet
the bottomend of theArm with soapy water. Slide
a Large Foam Pad (19) onto the Arm.
Attach a Pivot Bracket (48) to the Right Butterfly
Arm (11) with an M10 x 50mm Bolt (62) and an
M10 Nylon Locknut(71). Do not overtlghten the
Looknut; the Pivot Bracket must be able to
pivot easily.
Slide a Foam Grip (76) onto the Right Handle
(13). Attachthe Handle to the Right ButterflyArm
(11) withtwo M8 x 15ram Bolts (64).
Slide the Large Foam Pad (19) down sothat the
bottomof the Foam Pad iseven with the bottom of
the Arm.
Repeat this step with the Left Butterfly Arm (10).
10. Lubricatean M10 x 82mm Bolt (50) and both
sides of two PlasticWashers (55) with grease.
Attach the Right ButterflyArm (11) to the Butterfly
Frame (9) withthe Bolt, the two PlasticWashers,
two ButterflyCaps (54), and an M10 Nylon
Locknut(71). Do not overtlghten the Locknut;
the Butterfly Arm must be able to pivot easily,
Be sure the indented sides of the Plastic
Washers fit over the welded bushing In the
Butterfly Arm.
Repeat this step with the Left Butterfly Arm
(10).
11. Press two 40mm x 50mm Inner Caps (23) into
the ends of the Leg Lever (4).
Lubricatean M10 x 65mm Bolt (59) with grease.
Attach the Leg Lever (4) to the Seat Upright(73)
with the Boltand an M1O Nylon Locknut(71). Do
not overt_ghten the Locknut; the Leg Lever
must be able to pivot easily.
11
10
11
11
Welded Lubricate
Bushir x'_50
'l
55_ " ""-
9 "" i
Lubricate
71
73
23
4 _ Lubricate
23--
8
