10
18. Wrap the High Cable (45) around a 90mm Pulley
(38). Attach the Pulley inside the Top Frame (8)
with an M10 x 70mm Bolt (58), two M10 Washers
(26), two 13mm Spacers (34), and an M10 Nylon
Locknut (71).
19. Wrap the High Cable (45) around a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (44) to
the second set of holes from the top of the two
Pulley Plates (36) with an M10 x 47mm Bolt (61)
and an M10 Nylon Locknut (71). Be sure the
Cable Trap is turned to hold the Cable in the
Groove of the Pulley.

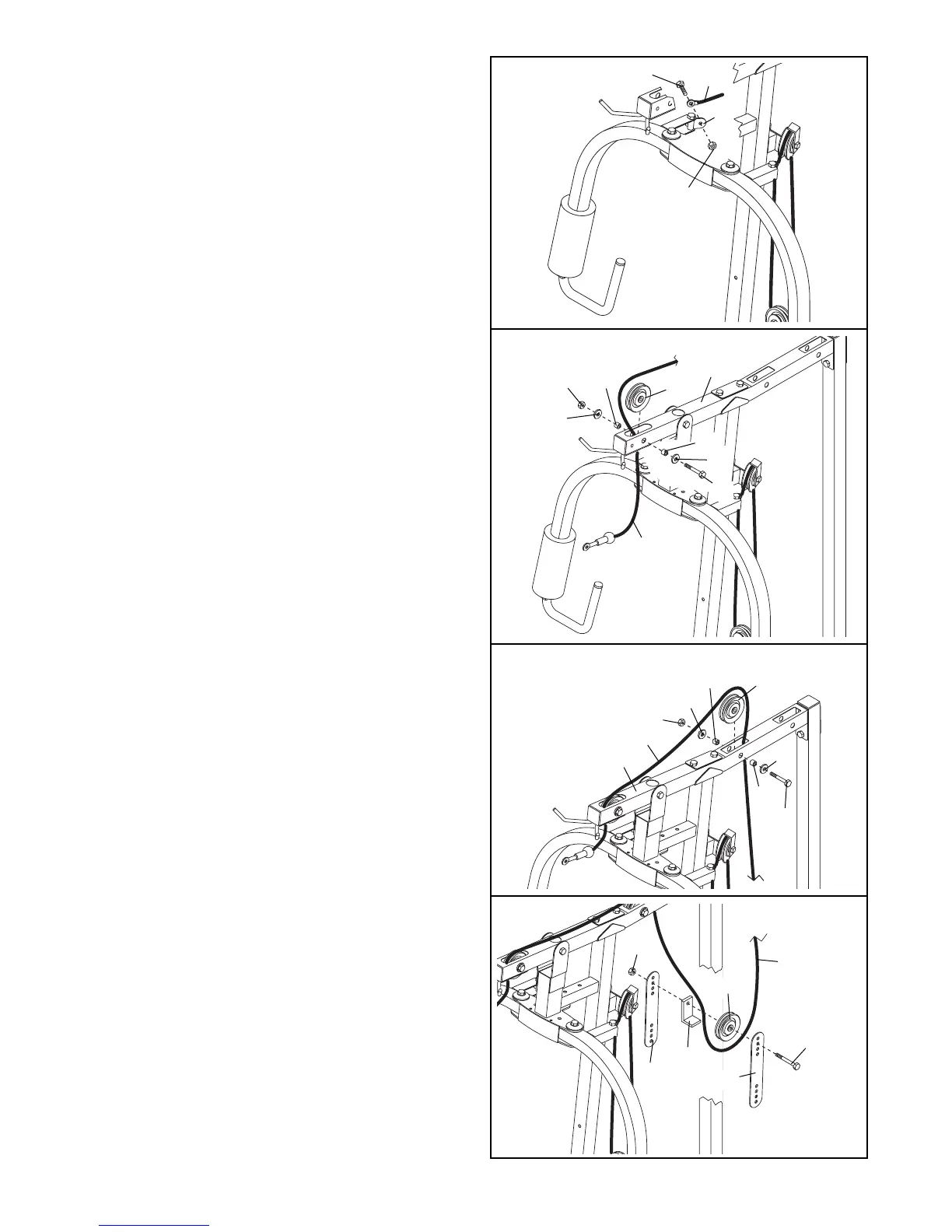

17. Locate the High Cable (45). Route the eyelet
end of the Cable up through the Top Frame (8)
and around a 90mm Pulley (38). Attach the Pulley
inside the Top Frame with an M10 x 70mm Bolt
(58), two M10 Washers (26), two 13mm Spacers
(34), and an M10 Nylon Locknut (71).
16. Attach the Butterfly Cable (46) to the indicated
Pivot Bracket (48) with an M8 x 27mm Shoulder
Bolt (63) and an M8 Nylon Locknut (70).
70
46
63
48
16
8
45
34
34
38
71
26
26
58
17
8
45
34
26
38
71
34
26
58
44
38
45
36
36
61
71
18
19
To Next Page
