Weider 2100 User Manual

11

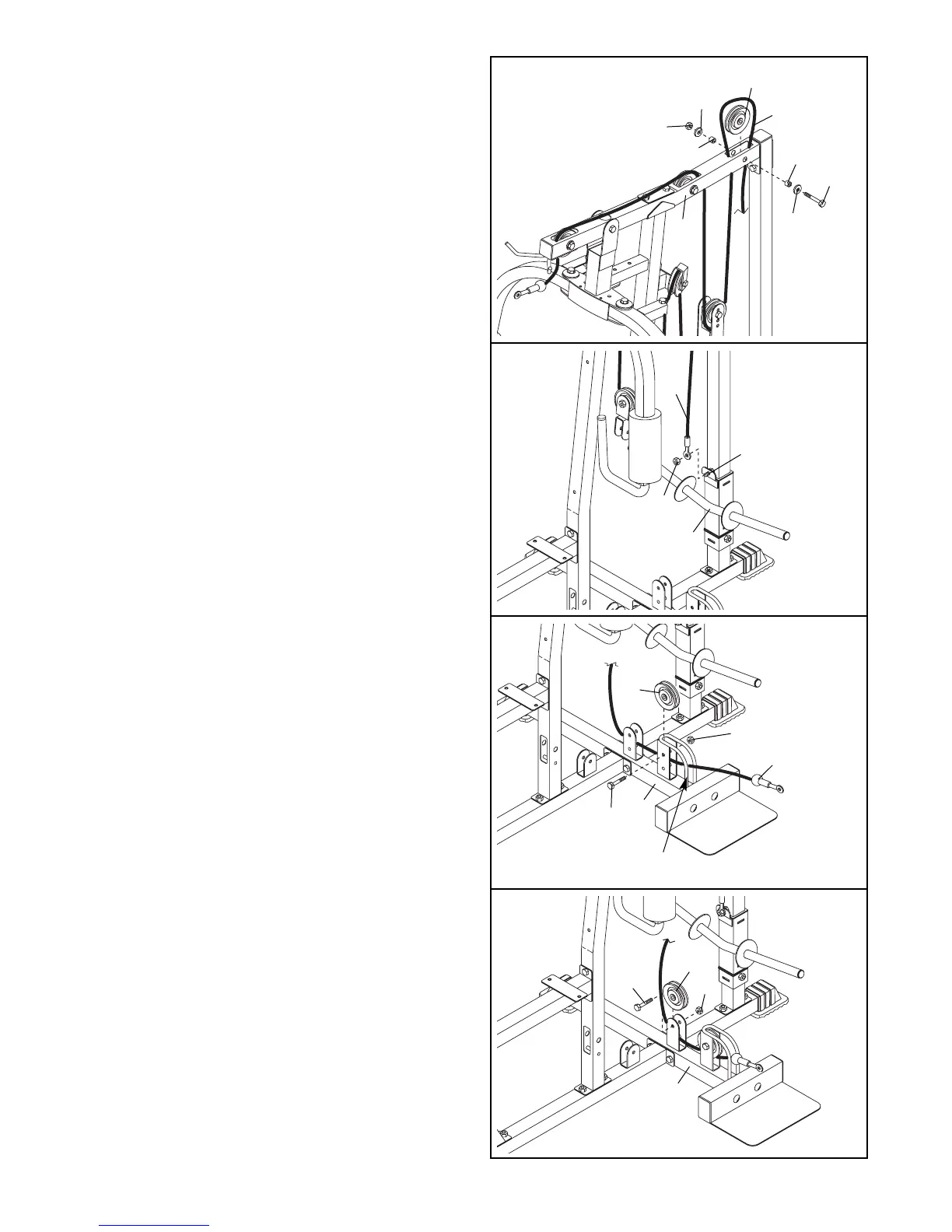

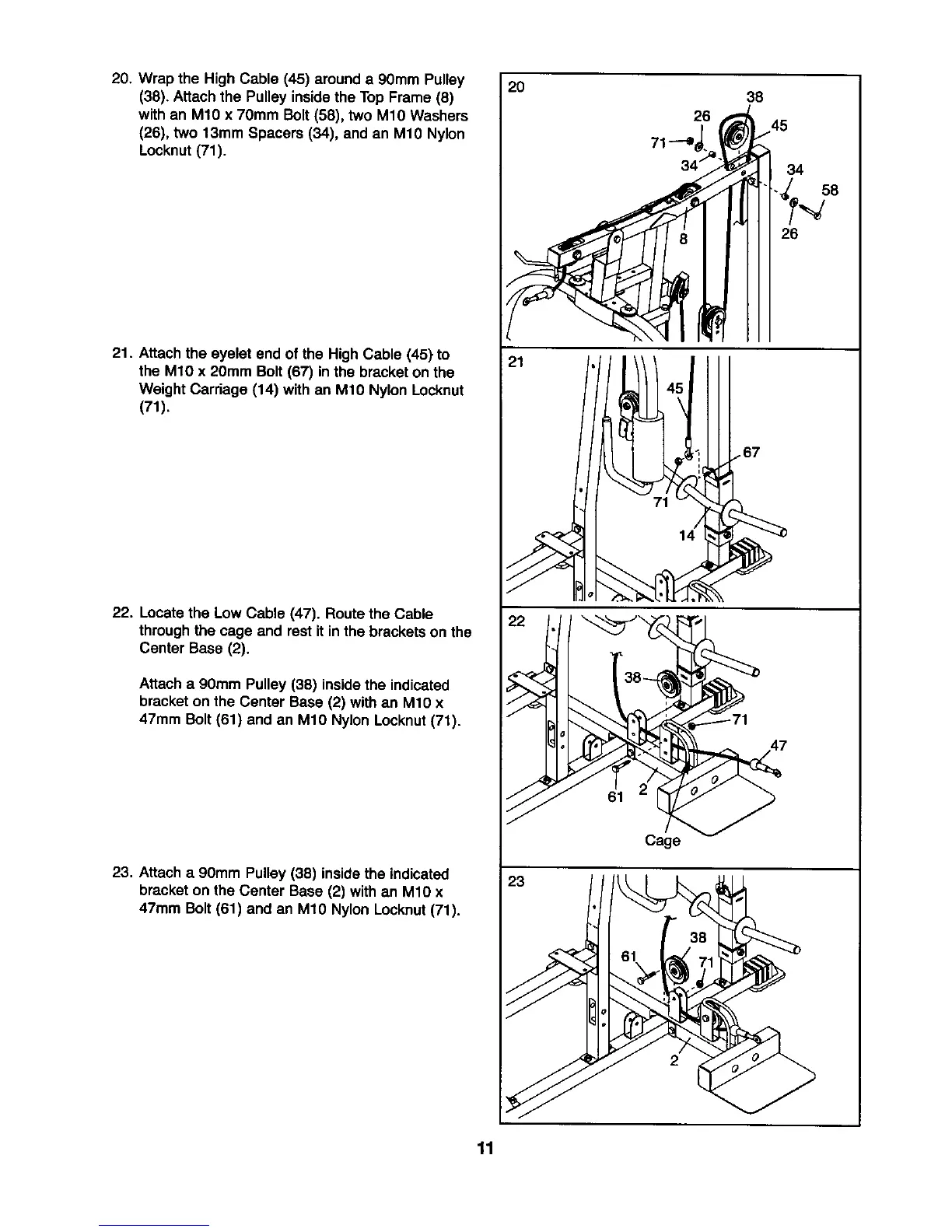

22. Locate the Low Cable (47). Route the Cable
through the cage and rest it in the brackets on the
Center Base (2).
Attach a 90mm Pulley (38) inside the indicated
bracket on the Center Base (2) with an M10 x
47mm Bolt (61) and an M10 Nylon Locknut (71).
23. Attach a 90mm Pulley (38) inside the indicated
bracket on the Center Base (2) with an M10 x
47mm Bolt (61) and an M10 Nylon Locknut (71).
21. Attach the eyelet end of the High Cable (45) to
the M10 x 20mm Bolt (67) in the bracket on the
Weight Carriage (14) with an M10 Nylon Locknut
(71).
20. Wrap the High Cable (45) around a 90mm Pulley
(38). Attach the Pulley inside the Top Frame (8)
with an M10 x 70mm Bolt (58), two M10 Washers
(26), two 13mm Spacers (34), and an M10 Nylon
Locknut (71).
38
58
45
34
34
8
26
26
71
20
45
67
14
71
21
38
2
61
47
71
Cage
22
61
38
2
71
23
