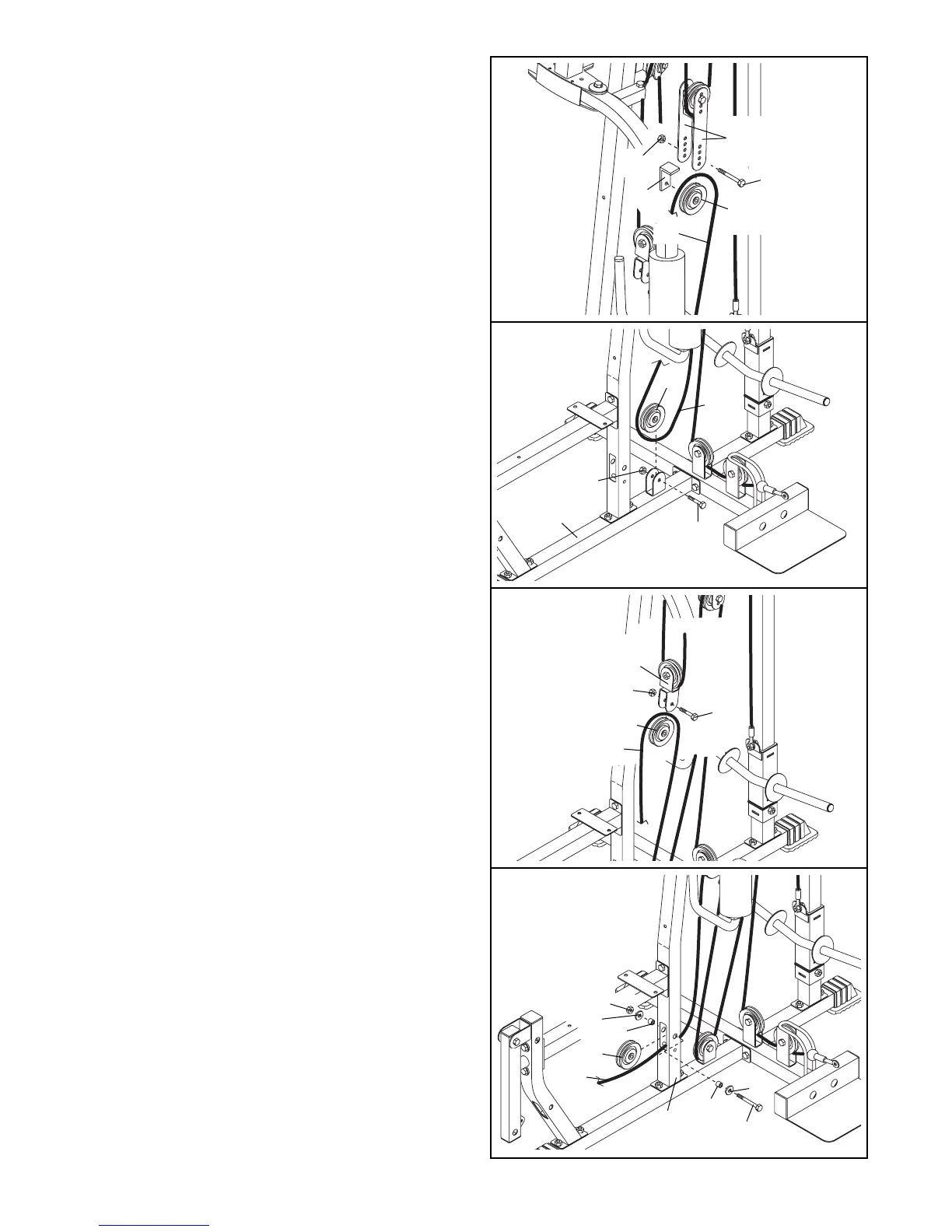

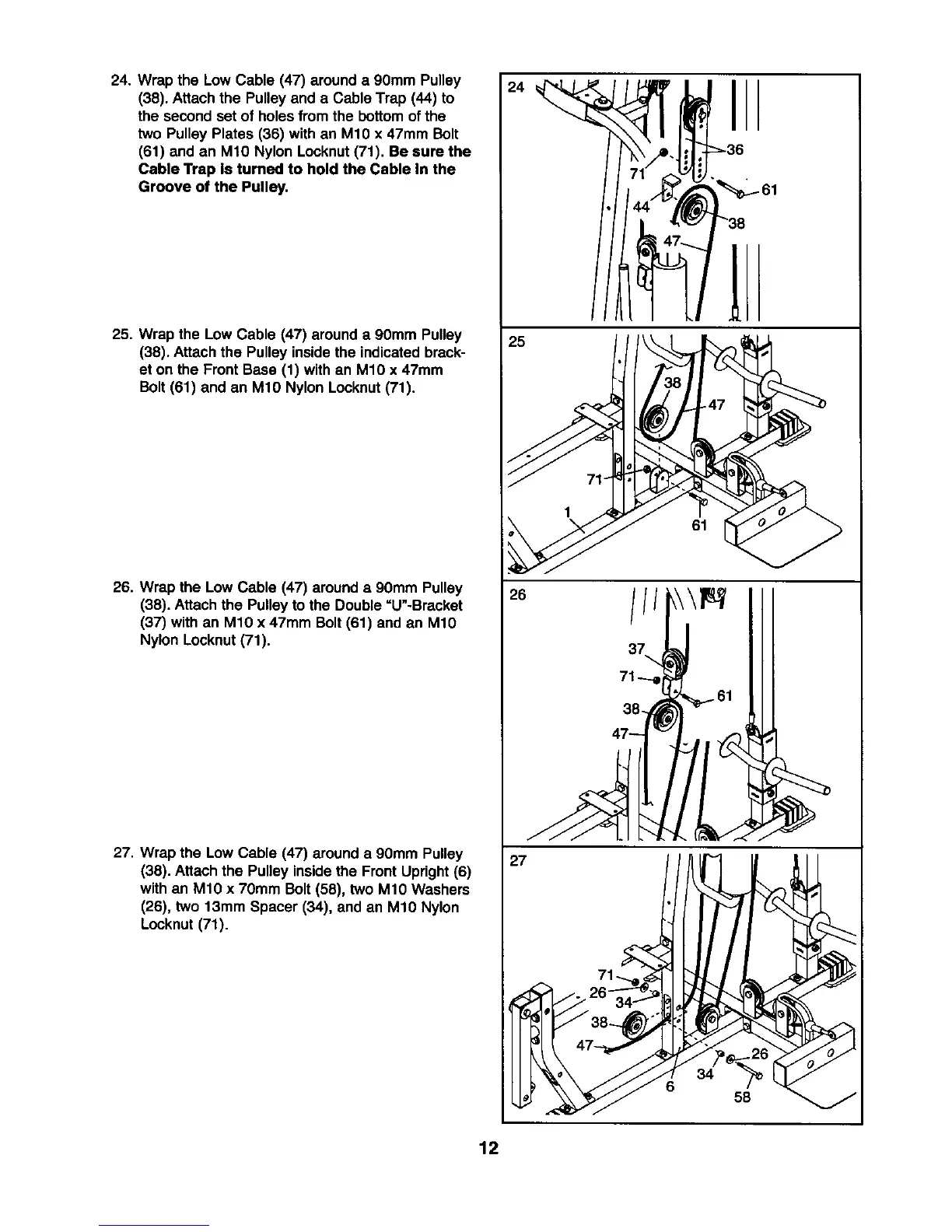

26. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley to the Double “U”-Bracket
(37) with an M10 x 47mm Bolt (61) and an M10
Nylon Locknut (71).
27. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley inside the Front Upright (6)
with an M10 x 70mm Bolt (58), two M10 Washers
(26), two 13mm Spacer (34), and an M10 Nylon
Locknut (71).
25. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley inside the indicated brack-
et on the Front Base (1) with an M10 x 47mm
Bolt (61) and an M10 Nylon Locknut (71).
24. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (44) to
the second set of holes from the bottom of the
two Pulley Plates (36) with an M10 x 47mm Bolt
(61) and an M10 Nylon Locknut (71). Be sure the
Cable Trap is turned to hold the Cable in the
Groove of the Pulley.
61
36
38
44
47
71
24
38
61
47
1
71
25
61
37
38
47
71
26
6
34
34
38
26
26
58
47
71
27
