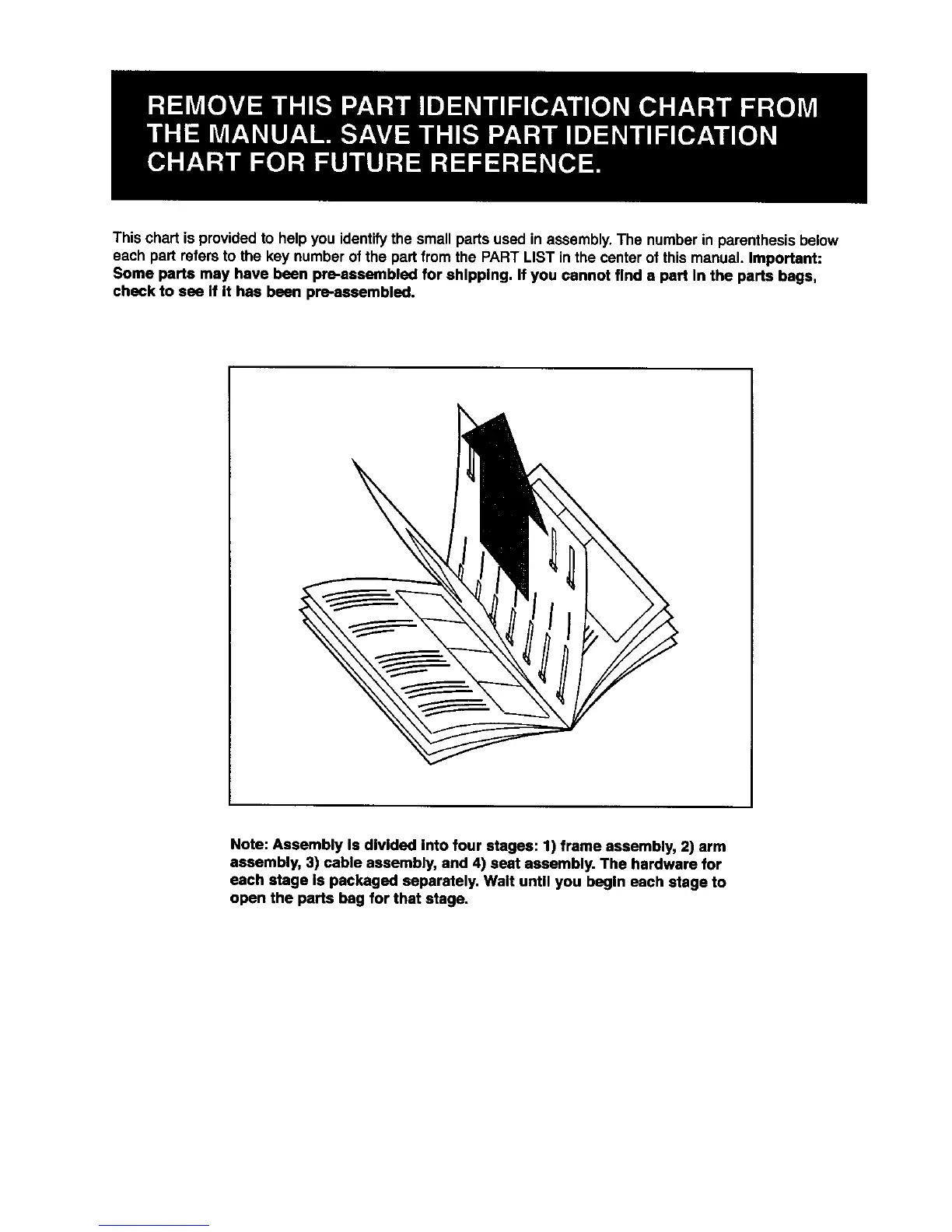

This chart is provided to helpyou identifythe small parts used in assembly. The number in parenthesisbelow
each part refersto the key number ofthe partfrom the PART LIST in the center of this manual. Important:
Some parts may have been pre-aesembled for shipping. If you cannot find a part In the parts bags,
check to see If It has been pre-assembled.
Note: Assembly Is divided into four stages: 1) frame assembly, 2) arm
assembly, 3) cable assembly, and 4) seat assembly. The hardware for
each stage Is packaged separately. Walt untll you begln each stage to
open the parts bag for that stage.
