18
K
ey No. Qty. Description Key No. Qty. Description
11Frame
21Front Leg
31Front Base
41Left Base
51Right Base
61Left Upright
71Right Upright
81Leg Lever
91Curl Post
10 1 Left Fly Arm
11 1 Right Fly Arm
12 1 Crossbar
13 2 Weight Rest
14 1 Lat Tower
15 1 Weight Carriage
16 2 Backrest Tube
17 1 Backrest Support
18 1 Backrest
19 1 Seat
20 1 Curl Pad
21 1 Cable
22 1 Pulley
23 1 Lat Bar
24 1 Weight Tube
25 6 Large Foam Pad
26 2 Small Foam Pad
27 2 Upright Knob
28 1 Curl Knob
29 1 Crossbar Pin
30 2 Fly Arm Bumper
31 2 Bumper Cover
32 3 Weight Adapter
33 1 Right Barbell Hook
34 2 M10 Silver Locknut
35 2 Short Pad Tube
36 2 50mm Square Bushing
37 1 Frame Knob
38 8 45mm Square Inner Cap
39 1 32mm Square Inner Cap
40 4 30mm Square Inner Cap
41 10 25mm Square Inner Cap
42 1 Leg Lever Bumper
43 5 25mm Round Inner Cap
44 4 Small Pad Cap
45 4 50mm Square Inner Cap
46 6 Large Pad Cap
47 2 Lat Bar Grip
48 1 Cable Clip
49 4 Bushing
50 2 Bumper Knob
51 1 Left Barbell Hook
52 2 16mm x 10mm Spacer
53 1 13mm x 11.5mm Spacer
54 3 Long Pad Tube
55 4 M10 x 65mm Bolt
56 1 M10 x 54mm Bolt Set
57 3 M10 x 60mm Bolt
58 2 M10 x 130mm Bolt
59 2 M10 x 55mm Bolt
60 1 M10 x 170mm Bolt
61 2 M6 x 16mm Screw
62 8 M6 x 40mm Screw
63 1 M10 x 20mm Bolt
64 16 M10 Black Washer
65 8 M6 Washer
66 20 M10 Black Locknut
67 1 M8 Locknut
68 4 M10 x 57mm Carriage Bolt
69 2 Weight Clip
70 2 M10 Silver Washer
71 1 M10 x 70mm Bolt
72 1 M8 x 52mm Bolt
73 2 M8 Washer
74 2 M10 x 52mm Carriage Bolt
75 1 M4 x 16mm Self-tapping Screw
76 2 60mm Square Bushing
*–Userʼs Manual
*–Exercise Guide
*–Grease Packet
*–Assembly Tool
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.

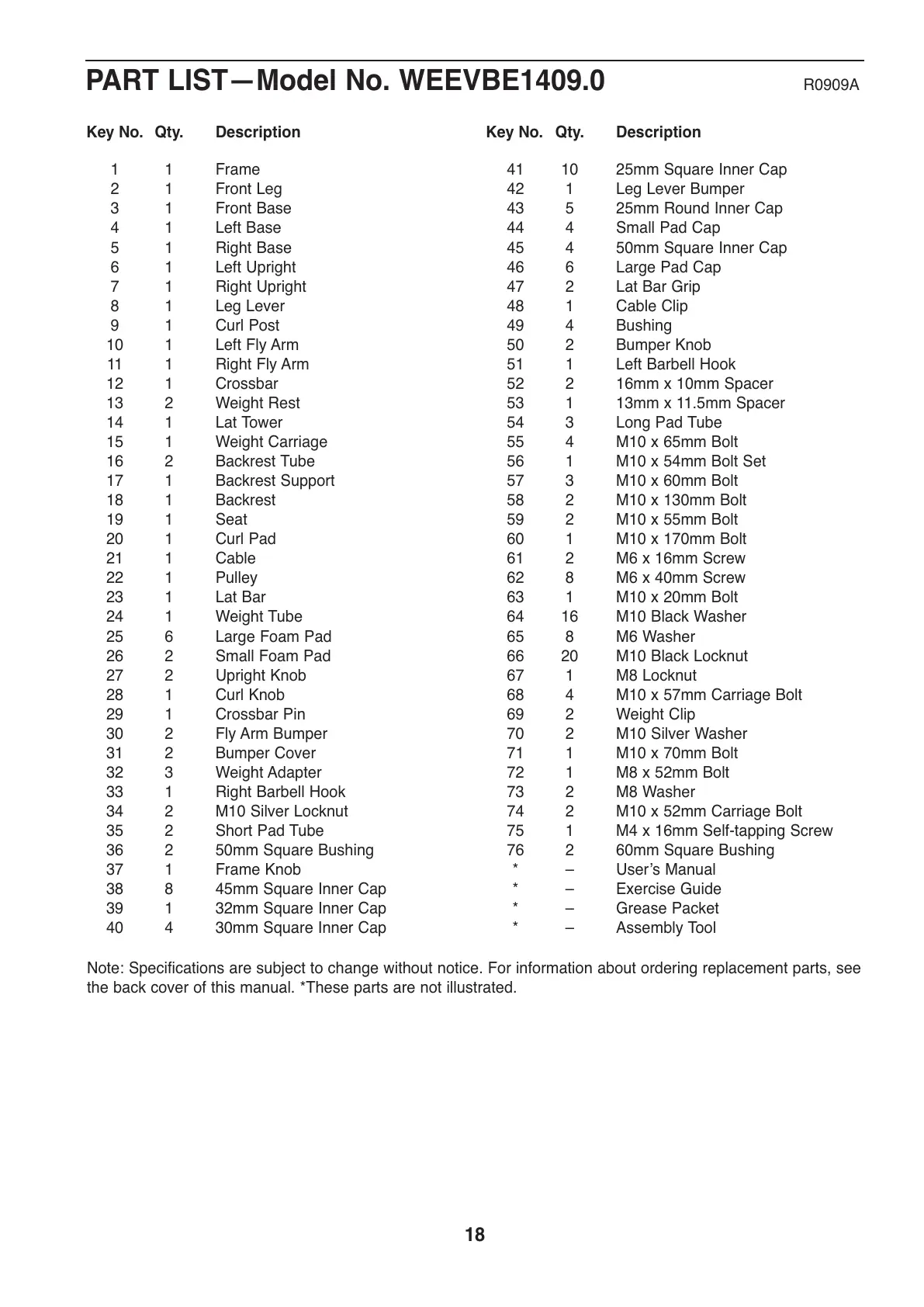

PART LIST—Model No. WEEVBE1409.0 R0909A
