Weider 240 TC - Part Identification Chart

5

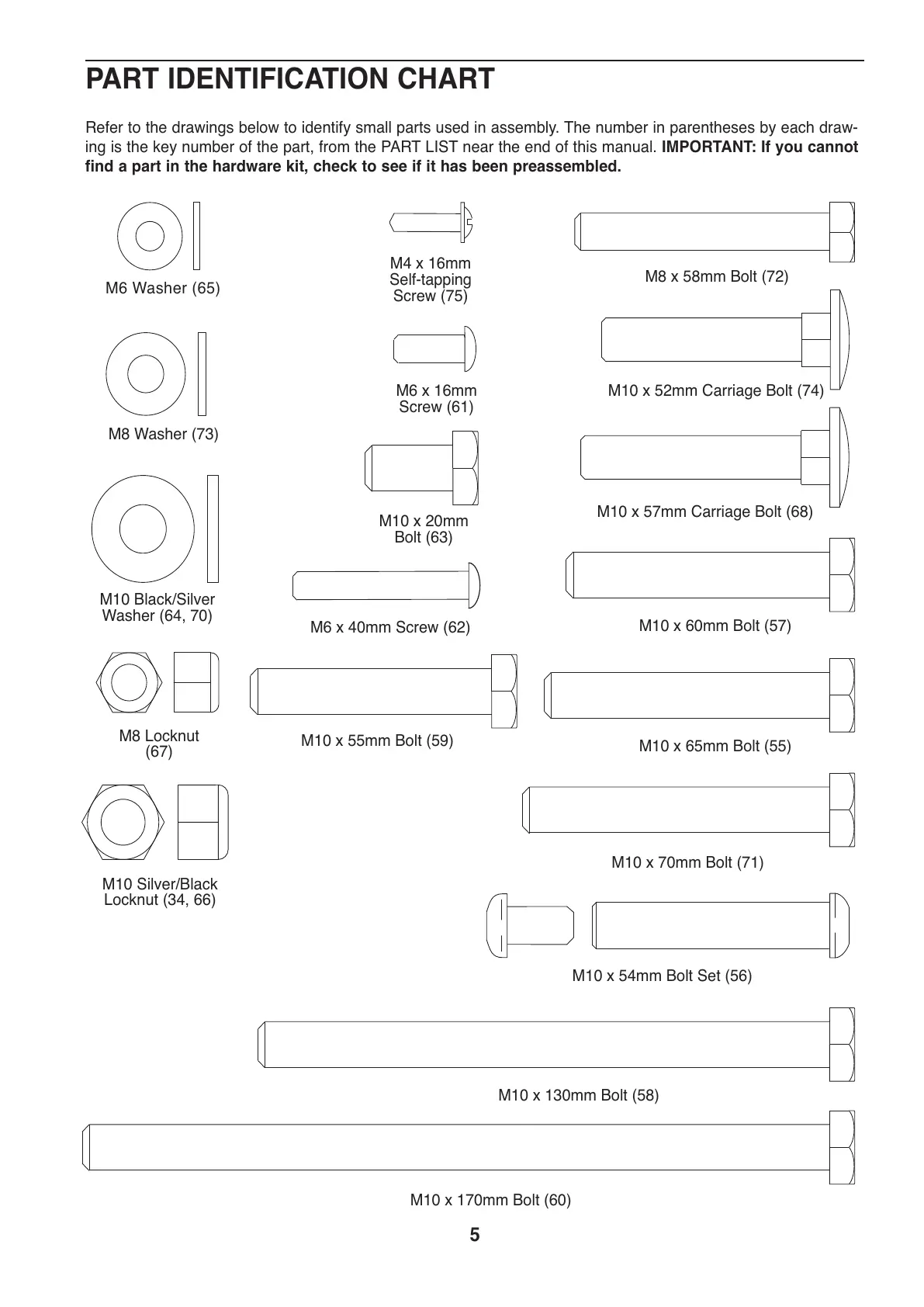

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. IMPORTANT: If you cannot
find a part in the hardware kit, check to see if it has been preassembled.
M10 Silver/Black
Locknut (34, 66)
M6 Washer (65)
M8 Washer (73)
M10 Black/Silver
Washer (64, 70)
M8 Locknut
(67)
M6 x 16mm
Screw (61)
M6 x 40mm Screw (62)
M10 x 52mm Carriage Bolt (74)
M4 x 16mm
Self-tapping
Screw (75)
M10 x 65mm Bolt (55)
M10 x 54mm Bolt Set (56)
M10 x 60mm Bolt (57)
M10 x 130mm Bolt (58)
M10 x 55mm Bolt (59)
M10 x 170mm Bolt (60)
M10 x 20mm
Bolt (63)
M10 x 70mm Bolt (71)
M8 x 58mm Bolt (72)
M10 x 57mm Carriage Bolt (68)
