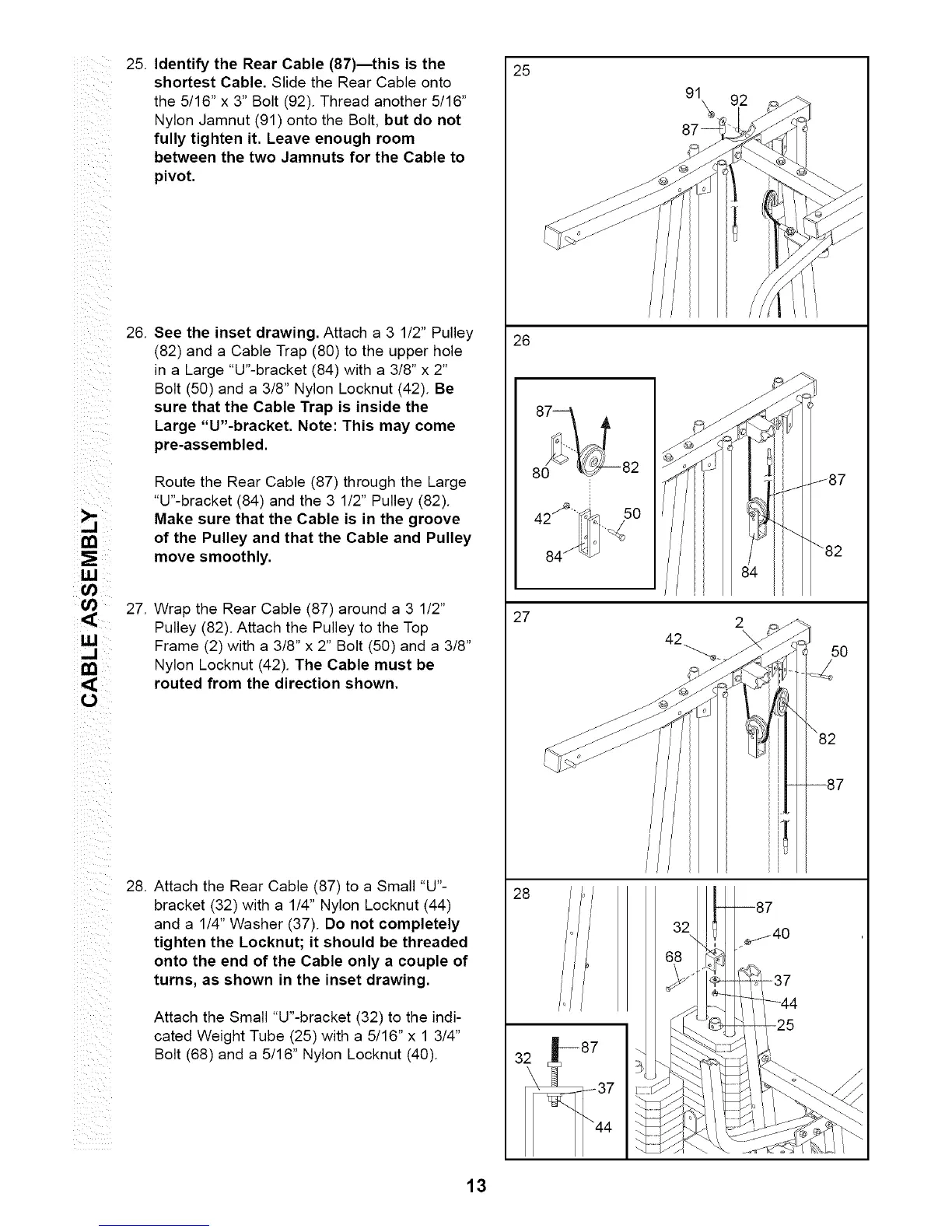

25. Identify the Rear Cable (87)--this is the
shortest Cable. Slide the Rear Cable onto
the 5/16" x 3" Bolt (92). Thread another 5/16"
Nylon Jamnut (91) onto the Bolt, but do not
fully tighten it. Leave enough room
between the two Jamnuts for the Cable to
pivot.
26.
See the inset drawing. Attach a 3 1/2" Pulley
(82) and a Cable Trap (80) to the upper hole
in a Large "U"-bracket (84) with a 3/8" x 2"
Bolt (50) and a 3/8" Nylon Locknut (42). Be
sure that the Cable Trap is inside the
Large "U"-bracket. Note: This may come
pre-assembled.
Route the Rear Cable (87) through the Large
"U"-bracket (84) and the 3 1/2" Pulley (82).
Make sure that the Cable is in the groove
of the Pulley and that the Cable and Pulley
move smoothly.
27.
Wrap the Rear Cable (87) around a 3 1/2"
Pulley (82). Attach the Pulley to the Top
Frame (2) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Locknut (42). The Cable must be
routed from the direction shown.
28.
Attach the Rear Cable (87) to a Small "U"-
bracket (32) with a 1/4" Nylon Locknut (44)
and a 1/4" Washer (37). Do not completely
tighten the Locknut; it should be threaded
onto the end of the Cable only a couple of
turns, as shown in the inset drawing.
Attach the Small "U"-bracket (32) to the indi-
cated Weight Tube (25) with a 5/16" x 1 3/4"
Bolt (68) and a 5/16" Nylon Locknut (40).
42
2
\
13
