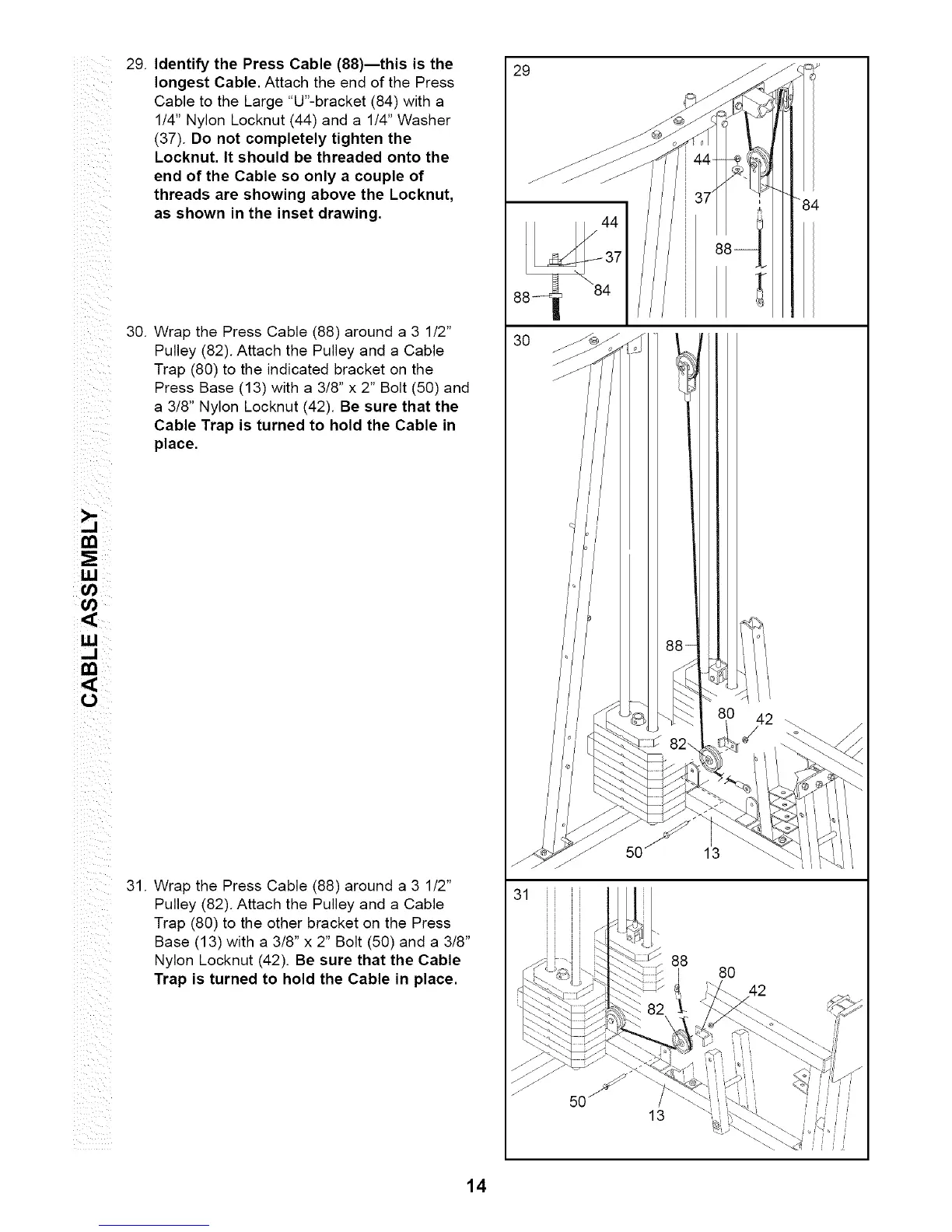

29.
Identify the Press Cable (88)--this is the
longest Cable. Attach the end of the Press
Cable to the Large "U"-bracket (84) with a
1/4" Nylon Locknut (44) and a 1/4" Washer
(37). Do not completely tighten the
Locknut. It should be threaded onto the
end of the Cable so only a couple of
threads are showing above the Locknut,
as shown in the inset drawing.
30. Wrap the Press Cable (88) around a 3 1/2"
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the indicated bracket on the
Press Base (13) with a 3/8" x 2" Bolt (50) and
a 3/8" Nylon Locknut (42). Be sure that the
Cable Trap is turned to hold the Cable in
place,
31. Wrap the Press Cable (88) around a 3 1/2"
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the other bracket on the Press
Base (13) with a 3/8" x 2" Bolt (50) and a 3/8"
Nylon Locknut (42). Be sure that the Cable
Trap is turned to hold the Cable in place.
29
37
8
30
31
13
13
88
80
14
