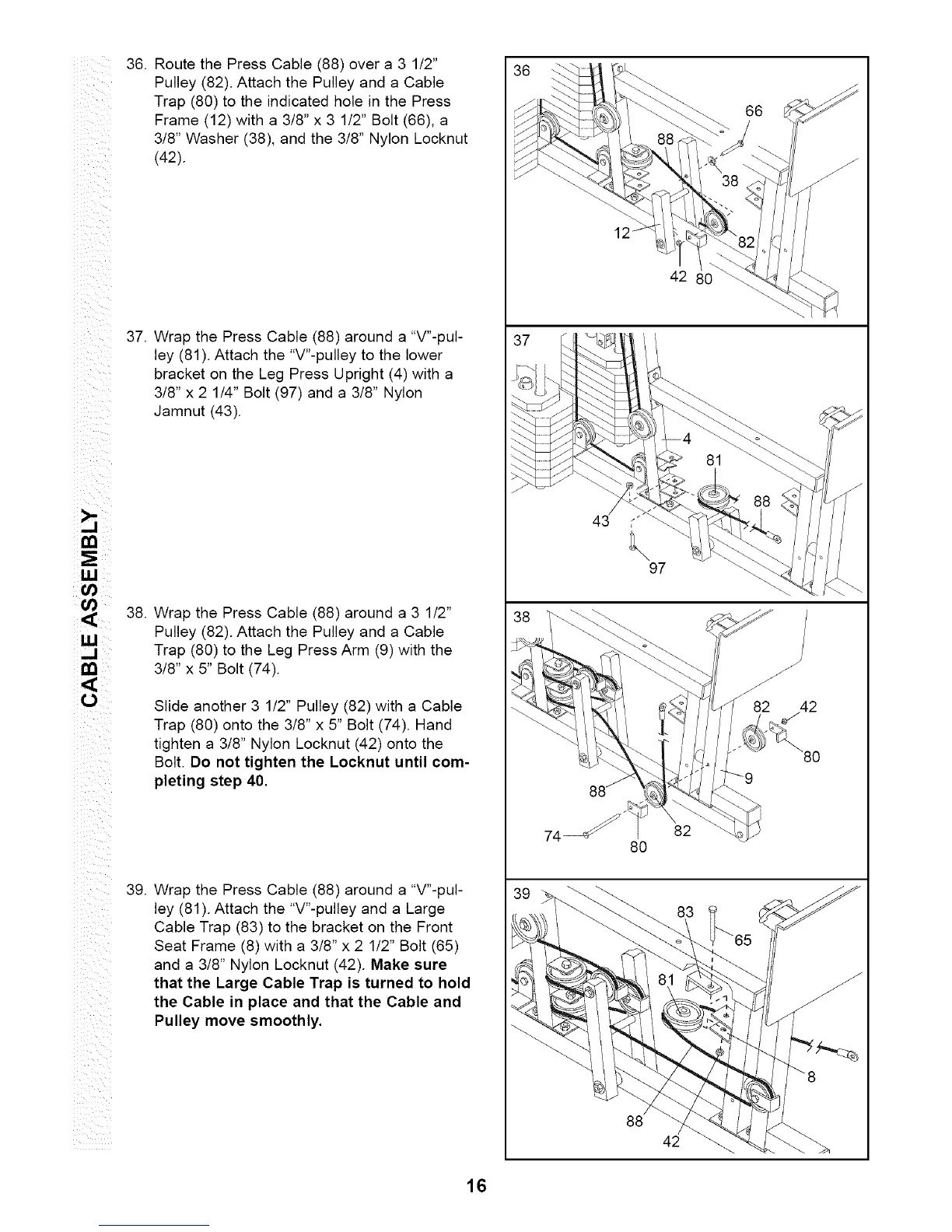

36. Route the Press Cable (88) over a 3 1/2"
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the indicated hole in the Press
Frame (12) with a 3/8" x 3 1/2" Bolt (66), a
3/8" Washer (38), and the 3/8" Nylon Locknut
(42).
37. Wrap the Press Cable (88) around a "V"-pul-
ley (81). Attach the "V"-pulley to the lower
bracket on the Leg Press Upright (4) with a
3/8" x 2 1/4" Bolt (97) and a 3/8" Nylon
Jamnut (43).
38.
Wrap the Press Cable (88) around a 3 1/2"
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the Leg Press Arm (9) with the
3/8" x 5" Bolt (74).
Slide another 3 1/2" Pulley (82) with a Cable
Trap (80) onto the 3/8" x 5" Bolt (74). Hand
tighten a 3/8" Nylon Locknut (42) onto the
Bolt. Do not tighten the Locknut until com-
pleting step 40.
39.
Wrap the Press Cable (88) around a "V"-pul-
ley (81). Attach the "V"-pulley and a Large
Cable Trap (83) to the bracket on the Front
Seat Frame (8) with a 3/8" x 2 1/2" Bolt (65)
and a 3/8" Nylon Locknut (42). Make sure
that the Large Cable Trap is turned to hold
the Cable in place and that the Cable and
Pulley move smoothly.
37
38
74
42
97
82
8O
88
42
66
82
8O
