Connecting up new cylinder

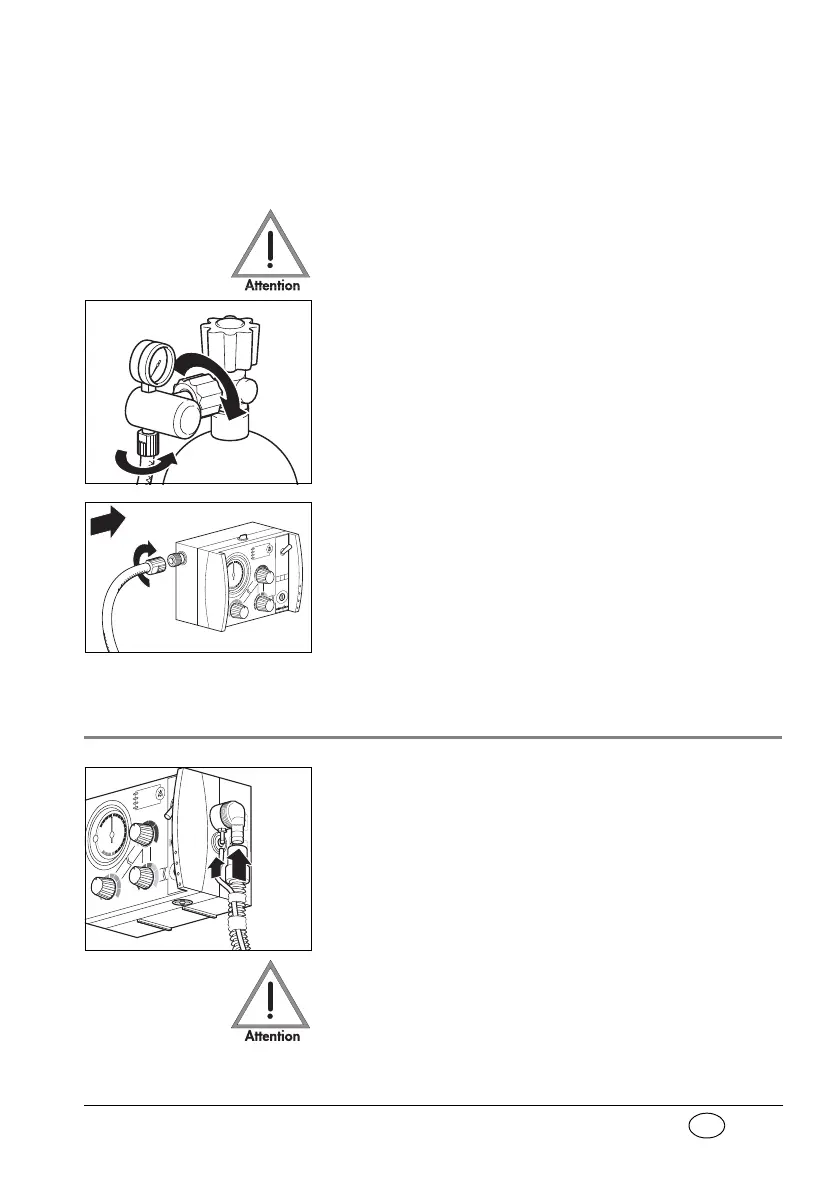

1. First open the valve of the new oxygen cylinder
and close it again quickly. This will blow out any
particulate matter.
Keep the valve opening away from the body,
making sure that neither yourself or other per-
sons can be injured by escaping particles!
2. Next couple the pressure reducer to the valve on
the oxygen cylinder with the fluted connecting
nut. Tighten up the nut by hand.
3. If the pressure hose is not already connected to
the exit valve of the pressure reducer, make this
connection with the G 3/8 connecting nut.
4. Screw the other end of the pressure hose on to
pressure gas connection on the
MEDUMAT Standard if this has not yet been
done.
4.4 Ventilation hose
1. Slide the pressure gauge hose onto the
connection.
2. Slide the ventilation tube onto the connection.
Make sure that the pressure gauge hose already
connected is not kinked. If necessary, turn the
ventilation tube while sliding on as appropriate.
Do solely grasp the ventilation tube by its end (posi-
tion of arrow in adjacent drawing). Otherwise the
hose may become damaged or tear.
