Overview
3
EN
1. Overview
1.1 Device
No Air Mix
Air Mix
Stenosis
Disconnection
< 2,7 bar O
2
MEDUMAT
Standard

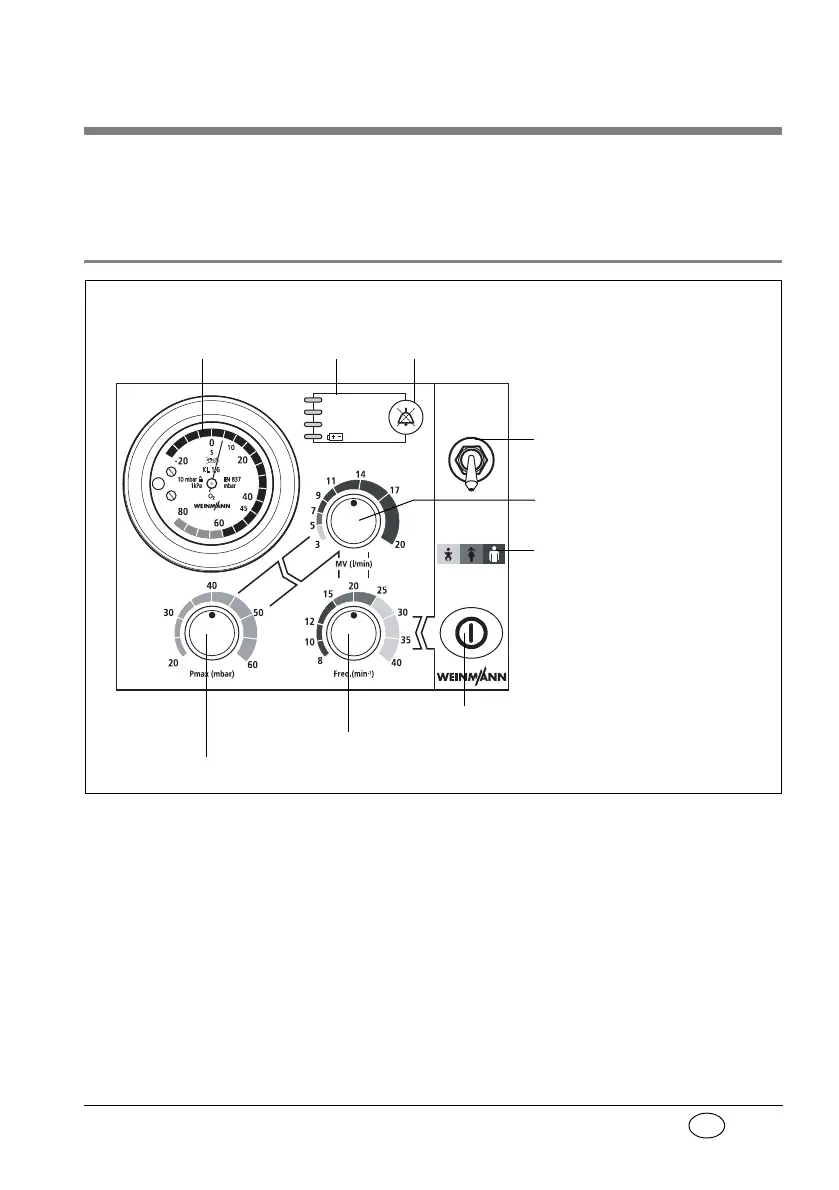

Control panel MEDUMAT Standard
1
Ventilation pressure gauge
6
Colour code
Toddler (yellow, 10 kg to 30 kg)
Child (orange, 30 kg to 60 kg)
Adult (brown, 60 kg to 110 kg)
4
Air Mix/No Air Mix switch
3
Alarm mute button
2
Alarm panel
7
ON/OFF switch
8
Ventilation frequency regulator
5
Minute volume regulator
9
Max. ventilation pressure regulator
2
4
Table of Contents
1. Overview
3
1.1 Device
3
1.2 Symbols used on the ventilator
5
2. Description of ventilator
8
2.1 Intended use
8
2.2 Owner/operator and user qualification
9
2.3 Ventilation function
9
2.4 Patient hose system with patient valve
10
2.5 Modules
11
3. Safety instructions
13
3.1 Safety regulations
13
4. Installation
17
4.1 Wall mounting for STATION MEDUMAT
17
4.2 Installation kit for the wall mounting
18
4.3 Connecting up the oxygen cylinder
18
4.4 Ventilation hose
19
5. Using the ventilator
22
5.1 Switching on/self test
22
5.2 Selecting the ventilation settings
23
5.3 Performing ventilation
25
5.4 Monitoring ventilation
26
5.5 Ventilation with PEEP Valve
27
5.6 Ventilation with HME filter
27
5.7 Ventilating with bacteria filter
27
5.8 Terminating ventilation
28
5.9 Alarm signals
28
5.10 Calculation of oxygen content/remaining operating time
31
5.11 Alternative ventilation procedures
32
6. Hygienic preparation
33
6.1 MEDUMAT Standard
33
6.2 Patient valve
34
6.3 Hose system
35
6.4 Components and accessories
36
6.5 Fittings
37
6.6 Cleaning, disinfecting and sterilizing
37
7. Functional checks
39
7.1 Obligatory checks
40
7.2 Check for leaks in the system
41
7.3 Checking patient hose system
42
7.4 Checking the minute volume
43
7.5 Check of maximal ventilation pressure
44
7.6 Check of alarm systems
46
8. Troubleshooting
48
8.1 Batteries
49
8.2 Cut-out system
51
8.3 Adjustment of manometer
51
9. Servicing
52
9.1 Intervals
52
9.2 Storage
53
9.3 Disposal
53
10. Supply schedule
55
10.1 Standard supply schedule
55
10.2 Accessories
55
10.3 Spare parts
56
11. Technical data
58
11.1 Pneumatics
60
11.2 O2 content when using Air Mix
62
11.3 Switching from Air Mix to No Air Mix
62
12. Warranty
64
13. Declaration of conformity
64
