Instructions for Assembly
Item number 116523-0000
We reserve the right to make technical
changes
Version 4 01.04.2014 Page 33/49
Opal Design II / Opal Design II LED
6 Volant Plus option
6.1 Safety notes
Damage to the awning
Improper connection and wiring can damage the awning.
Always retract the Volant Plus fabric completely before you retract the entire awning.
The use of any controls that do not ensure that the Volant Plus is retracted before the
entire awning is retracted is not permissible.
The adjustment range must not deviate by more than 10° to 20° from the standard.
6.2 Exploded Darwing - Volant Plus

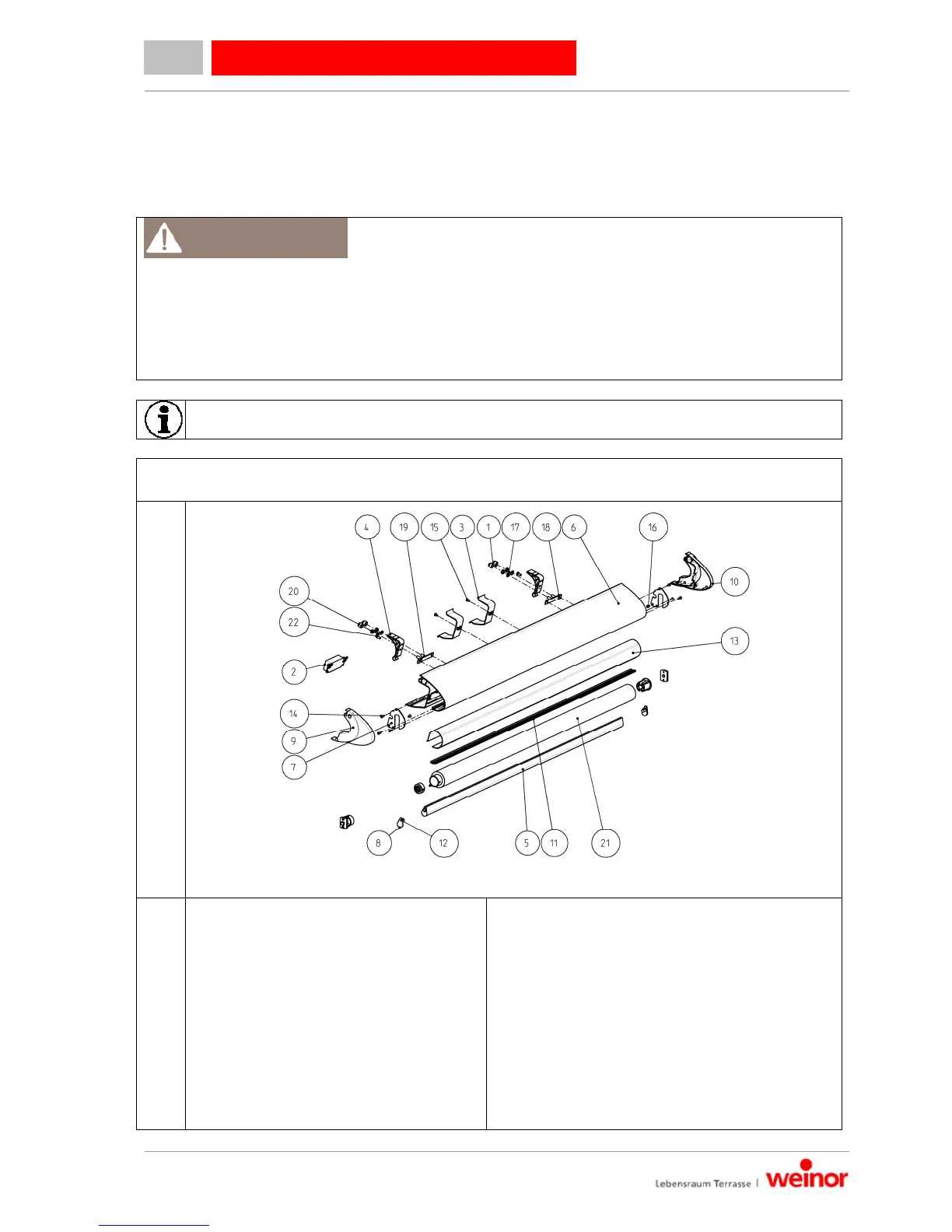

Figure 9: Exploded drawing - Volant Plus
1 Cover cap, SW13 12 Grub screw DIN914-M4x8
2 Agido Volant Plus 13 Glide profile
3 Arm stop 14 Pan head self-tapping screw DIN 7981-4.2x16
4 Drop profile stop cam for Volant Plus 15 Pan head self-tapping screw DIN 7981-4.8x9.5
5 Drop profile 16 Fillister head screw ISO 7380-M5x10
6 Volant Plus drop profile 17 Washer DIN 125A-8.4-A2
7 Drop profile inner cap 18 Carriage 20x5 L15 M6
8 Drop profile end cap for indented ropes 19
Slide rail for Volant Plus drop profile support
bracket
9 Drop profile cap left 20 Hexagonal nut DIN 934-M8
10 Drop profile cap right 21 Complete roller tube
11 Brush seal 22
Hexagon socket head cap screw DIN6912
M6x12
CAUTION
