Instructions for Assembly
Item number 116523-0000
We reserve the right to make technical
changes

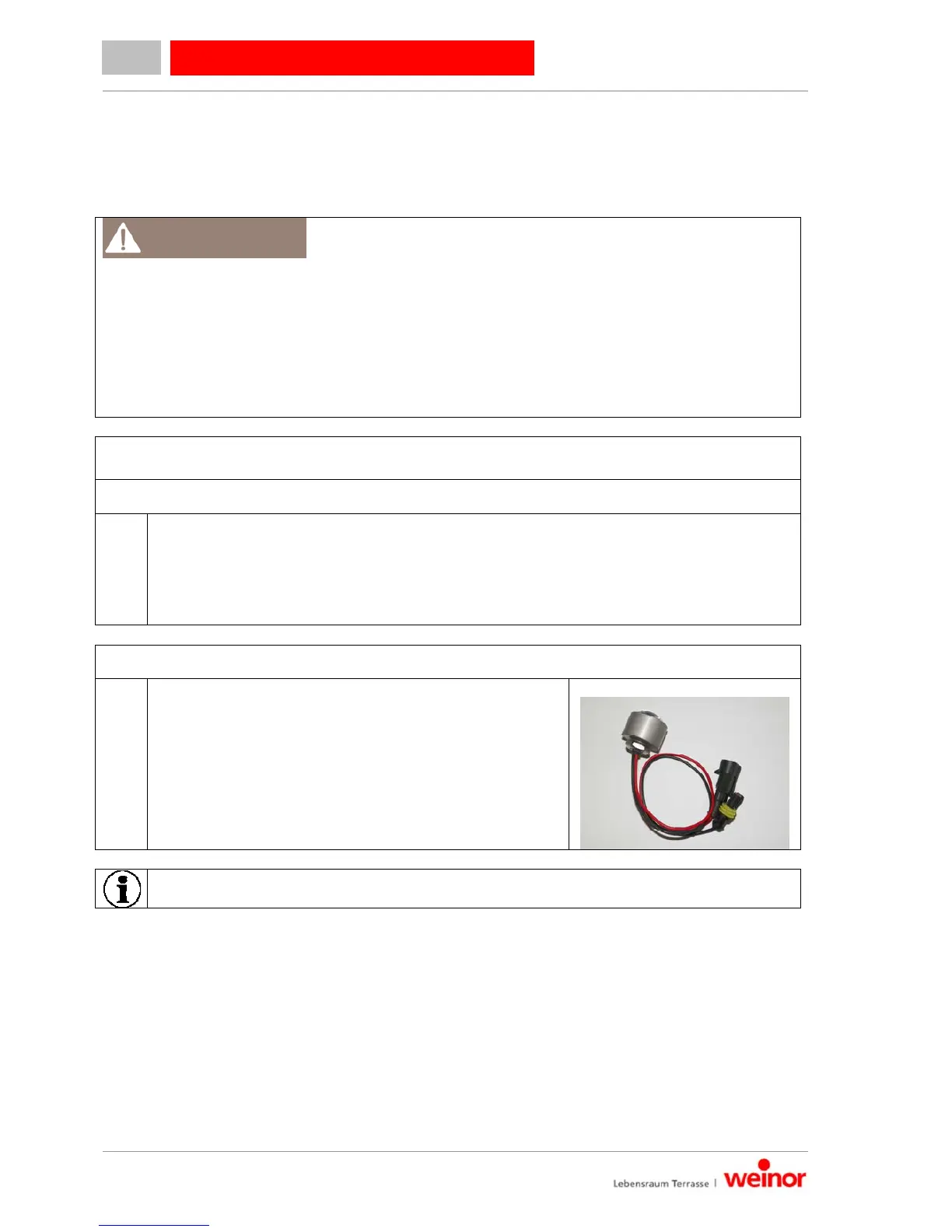

Version 4 01.04.2014 Page 34/49
Opal Design II / Opal Design II LED
7 Circuit diagram Opal Design II
7.1 Safety notes on LED lamps
Damage to LED lamps
Incorrect installation and wiring can result in the LED lamps being damaged.
To ensure the proper functioning of the soft-start feature - which means full
brightness is reached gradually - never connect the LED lighting device when
energised. This also applies when replacing individual LED lamps. Always wire up the
lamps with the power turned off and only then switch on using a 230 V AC power
supply.
7.2 Technical details - LED lamps
7.2.1 Lighting device
Nominal voltage: 230 V AC / 700 mA DC
Number of lamps: 2 - 11
Dimmable: Yes (using a BiRec MLED)
Circuit design Series-connected
IP code: IP23
Protection class:: III
7.2.2 LED lamp
Illuminant: LED light (Cree MX6)
Operating current:: 700 mA constant current
Voltage per light:: 3.7 V
Output per light: 2.6 W
Colour temperature: Warm white (3000 K)
Radiation angle: 60°
Housing diameter: 29 mm
Housing height: 32 mm
The Birec MLED/ MVLED automatically switches the light off after 12 hours.
CAUTION
