Instructions for Assembly
Item number 116523-0000
We reserve the right to make technical
changes
Version 4 01.04.2014 Page 15/49
Opal Design II / Opal Design II LED

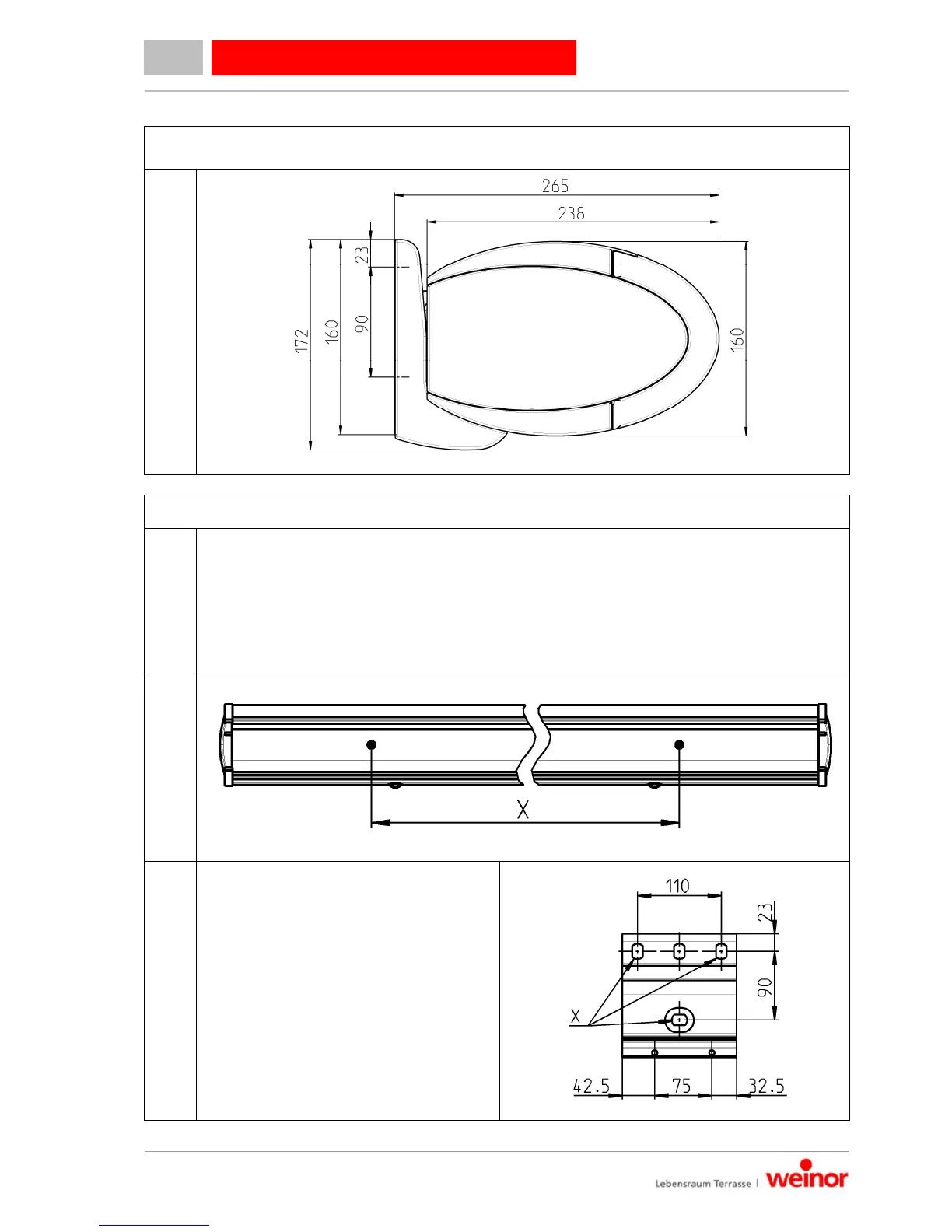

5.2 Wall mounting
5.2.1 Wall mounting using a 150 mm wall bracket
1. Fit the brackets
1. Measure the distance between the marking points on the back of the awning
cassette.
2. The measured distance (X) is equivalent to the centred spacing of the brackets.
Bracket deviation of ± 100 mm permissible; align brackets exactly using suitable
tools/aids, (e.g. mason's cord) and a spirit level.
3. Mark drill holes (X),
drill holes and mount brackets on
the wall. Affix each bracket using 3
screws.
