Instructions for Assembly
Item number 116523-0000
We reserve the right to make technical
changes
Version 4 01.04.2014 Page 19/49
Opal Design II / Opal Design II LED

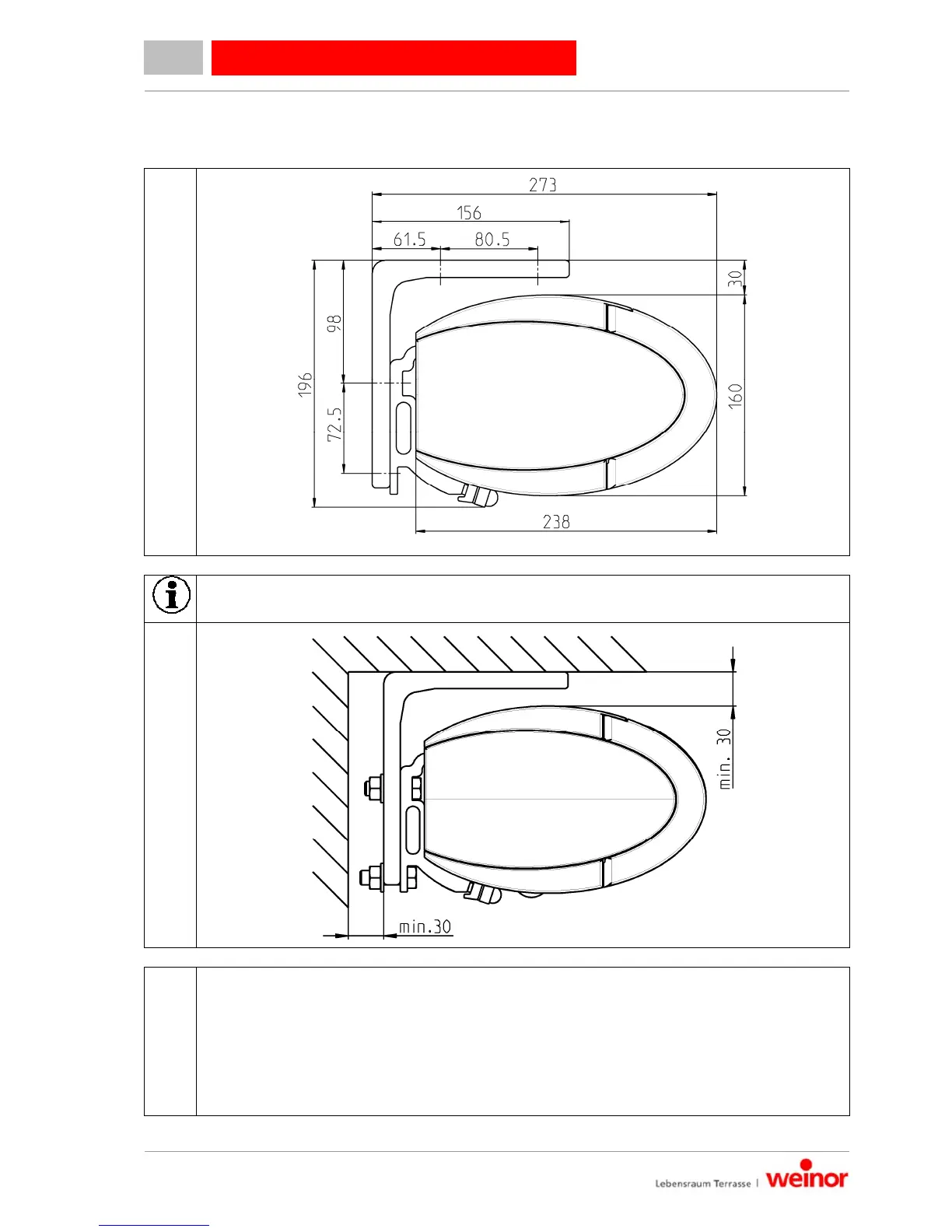

5.3 Ceiling installation
A space of at least 30 mm from the back of the wall is needed to be able to fit the ceiling
angle caps without difficulty at a later stage.
1. Fit ceiling angle
1. Measure the distance between the marking points on the back of the awning
cassette.
2. The measured distance (X) is equivalent to the centred spacing of the brackets.
Bracket deviation of ± 100 mm permissible; align brackets exactly using suitable
tools/aids, (e.g. mason's cord) and a spirit level.
