weinor Opal Design II LED User Manual

Instructions for Assembly
Item number 116523-0000
We reserve the right to make technical
changes
Version 4 01.04.2014 Page 27/49
Opal Design II / Opal Design II LED
5.5 Opal Design II coupling
5.5.1 Exploded Drawing - Opal Design II coupling

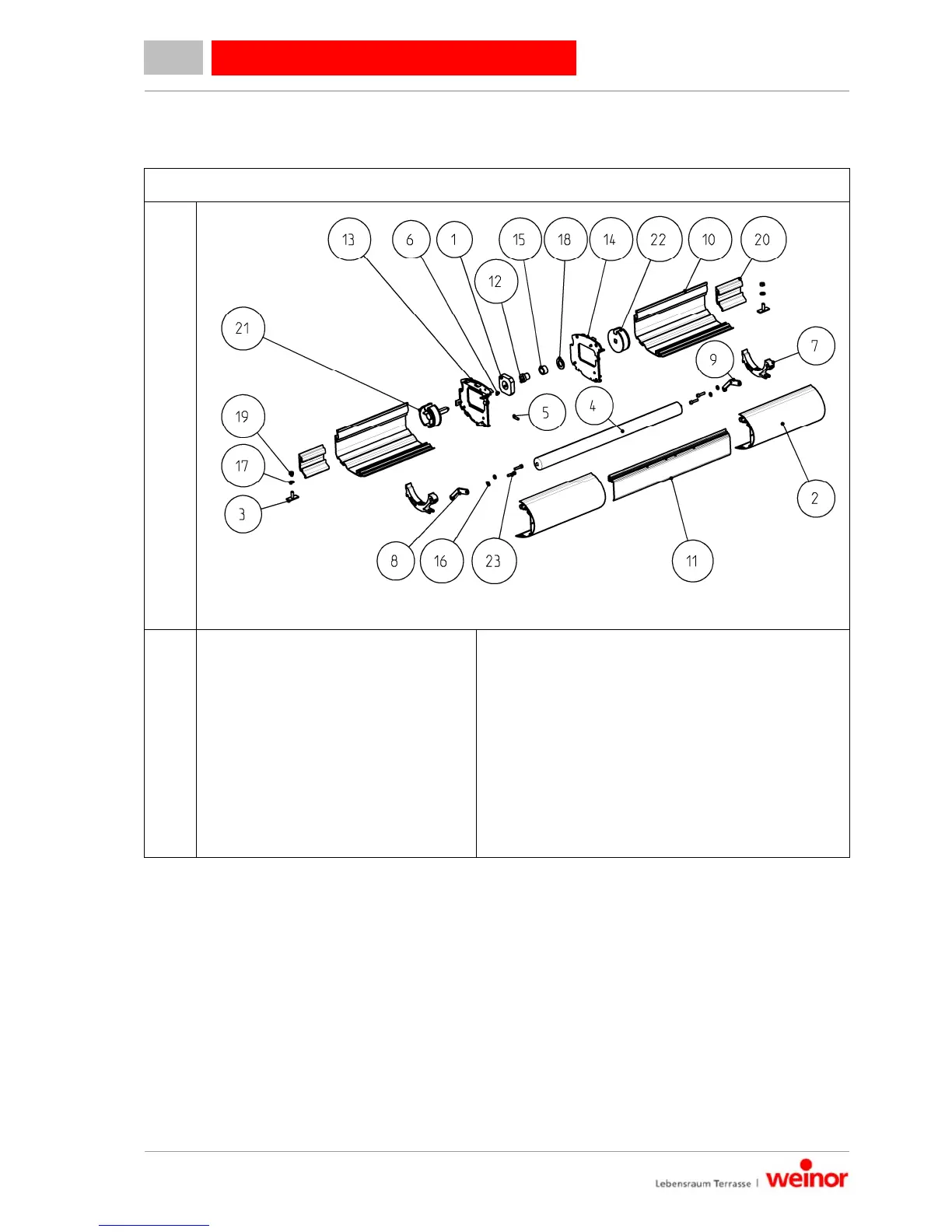

Figure 8: Exploded drawing - Opal Design II coupling
1 Adapter for coupling 13 Centre plate left
2 Drop profile 14 Centre plate right
3 Clamping slider 15 Needle bearing coupling
4 Spring shaft 16 Washer DIN 125A-6.4-A2
5 Grub screw DIN913-M6x25 17 Washer DIN 125A-8.4-A2
6 Grub screw DIN914-M6x16 18 Washer DIN 125B-21-A2
7 Jockey cover holder 19 Hexagonal nut DIN 934-M8
8 Holding plate left 20 Support profile
9 Holding plate right 21 Roller tube insert D78 12x12 external square
10 Housing floor profile 22 Roller tube insert D78 12x12 inner sqaure
11 Coupling profile 23 Hex. socket head cap screw DIN912-M6x25
12 Brass bearing bush
