weinor Opal Design II LED User Manual

Instructions for Assembly
Item number 116523-0000
We reserve the right to make technical
changes
Version 4 01.04.2014 Page 39/49
Opal Design II / Opal Design II LED

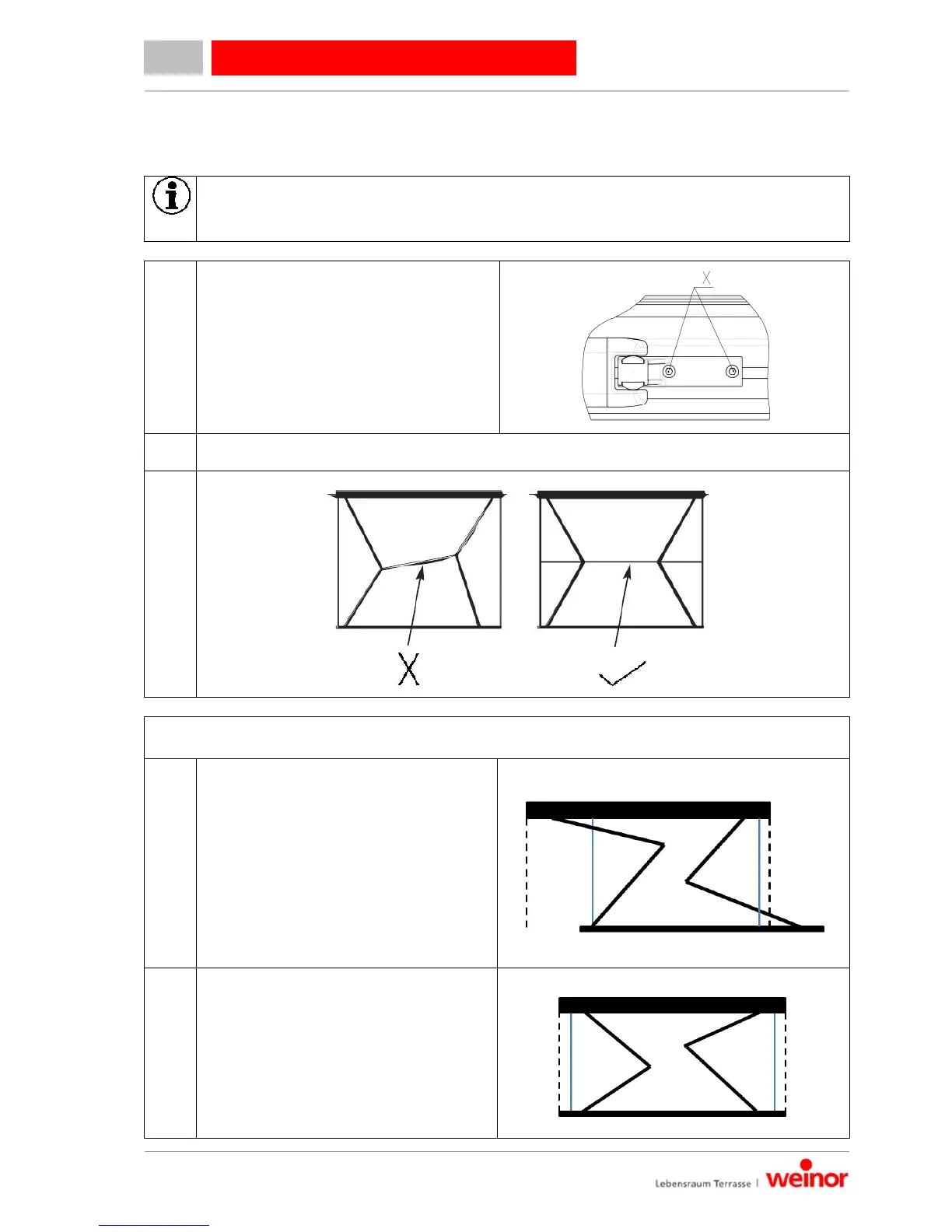

8 Adjusting the arm position
The arm position needs to be adjusted if:
 The drop profile needs to be set to a symmetrical position,
 The arms come up to the housing differently.
1. Loosen the Allen screws (X)
2. Set the correct arm position.
3. Retighten the Allen screws.
8.1 Possible incorrect positions of the awning
1. Fabric / drop profile has moved
Remedy:
 Slacken the fabric in the drop
profile
 Slacken the drop profile support
bracket
 Align the drop profile and the
folding arms and remount them
 Refit the fabric in the drop profile
2. Folding arms are not symmetrical
Remedy:
 Slacken the drop profile support
bracket
 Slide the arms symmetrically
 Refit the drop profile support
bracket
