weinor Opal Design II LED User Manual

Instructions for Assembly
Item number 116523-0000
We reserve the right to make technical
changes
Version 4 01.04.2014 Page 16/49
Opal Design II / Opal Design II LED

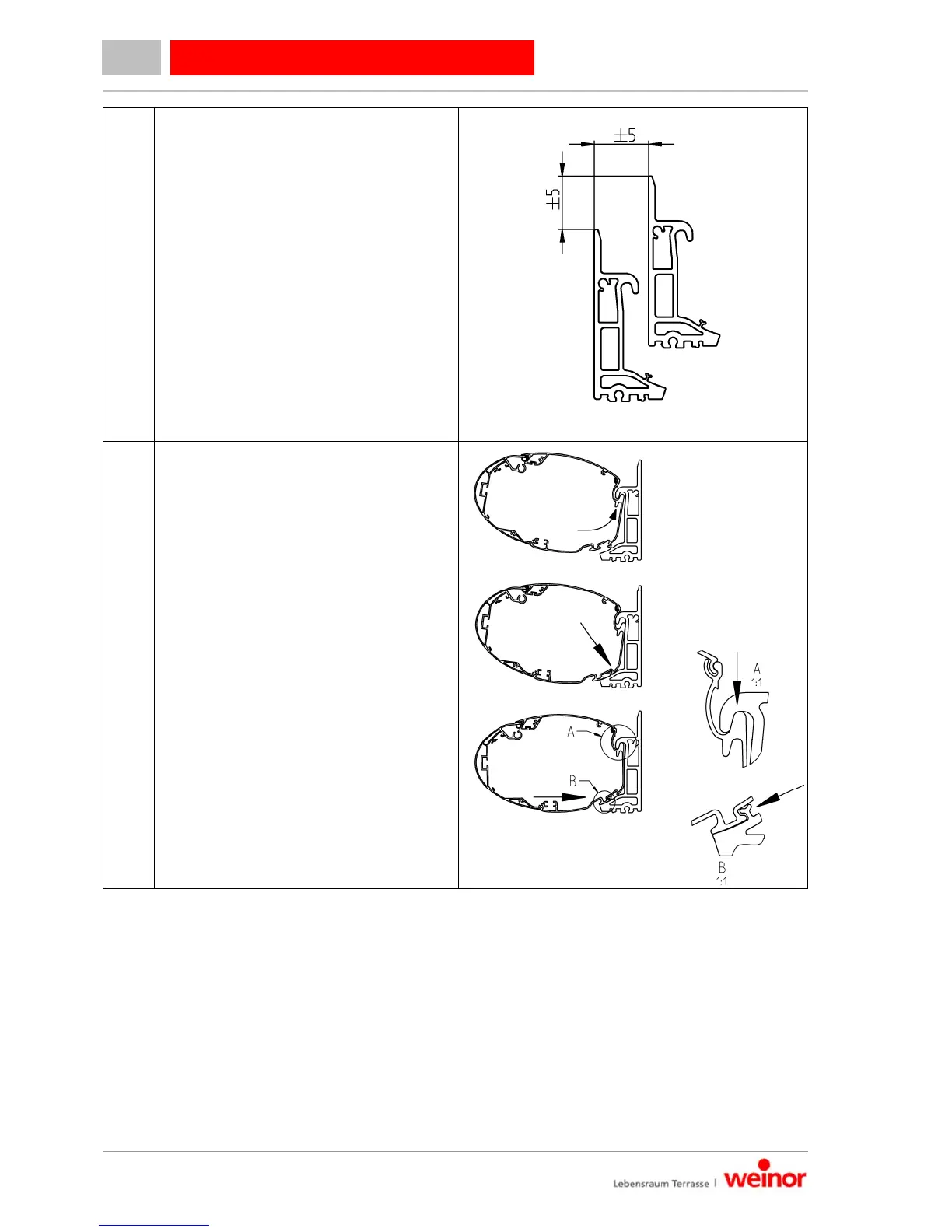

2. Check bracket alignment
1. Check that the brackets are fitted
flush
2. Check that the brackets are aligned
to the right height and depth; max.
permissible deviation (e.g. due to
ripples in the wall) ± 5 mm. Shim
underneath if necessary.
3. Attach the awning
1. Screw the awning into the bracket
stud; the awning must rest on the
lower nose of the wall bracket.
