Weishaupt WG10 1-C Series User Manual

-1,0
-0,5
0
0,5
1,0
1,5
2,0
2,5
20 30 40 50 60 70
80
90 100 120110
33
Temperature Humidity Requirements for EMC Low voltage guideline
In operation: max. 80% rel. humidity Guideline 89/336/EEC Guideline 72/23/EEC
-15°C to +40°C no dew point EN 50081-1 EN 60335
Transport / storage: EN 50082-1
-20 to +70°C
8.4 Electrical data
8.5 Permitted ambient conditions
WG10…/1-C
Mains voltage _______________________________ 230 V
Mains frequency __________________________ 50/60 Hz
Consumption- Start _______________________ 0·290 kW
- Operation __________________ 0·150 kW
Operating current ____________________________ 1·1 A
External fusing ___________________________ 16 A slow
Internal fusing ____________________________ 6·3A slow
8.3 Permissible fuels
Natural gas E
Natural gas LL
Liquid petroleum gas B / P
The capacity graph is in accordance with EN 676. There is
a rating reduction dependent on the altitude of the
installation: approx. 1% per 100 m above sea level.
8 Technical data
8.1 Burner equipment

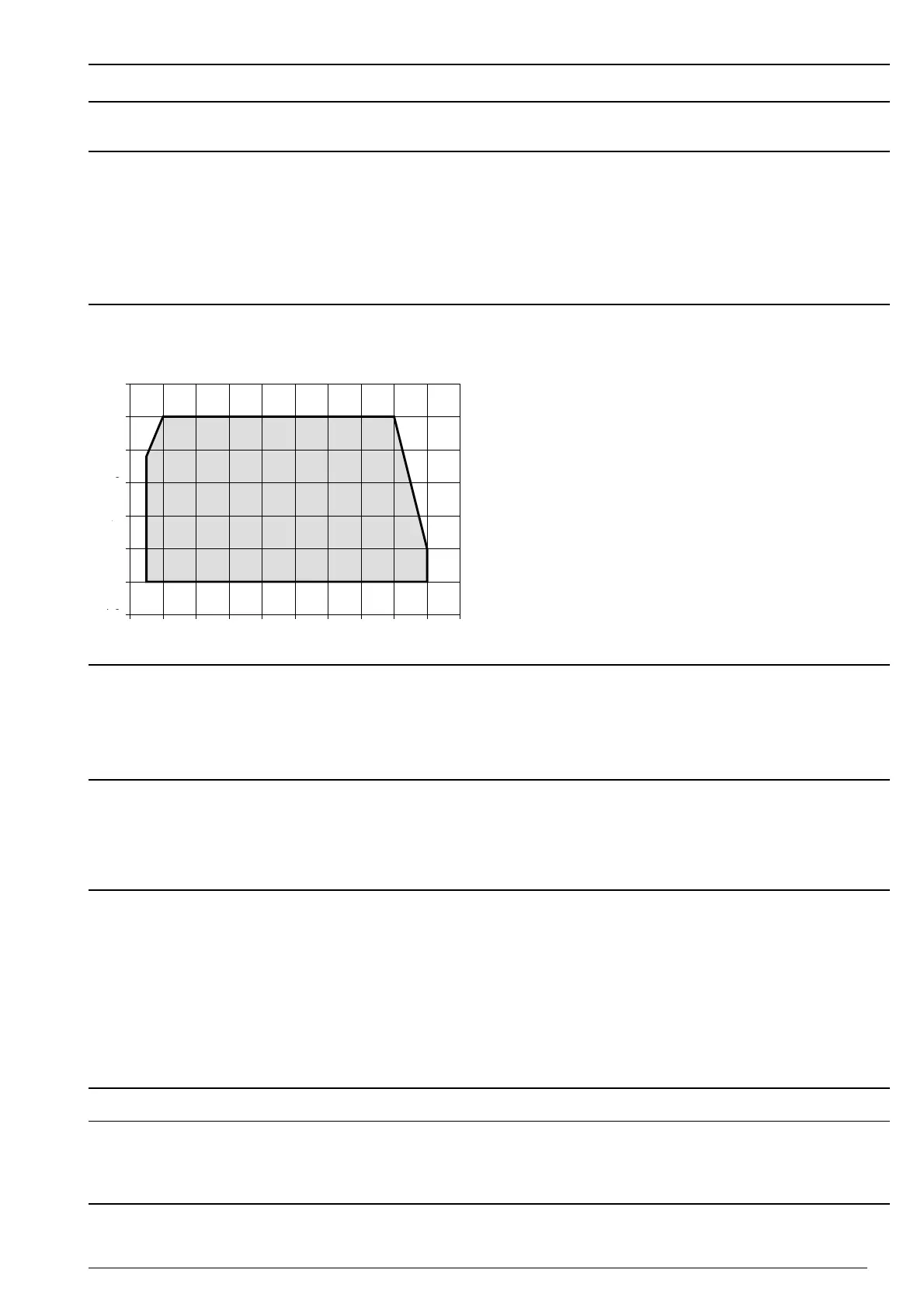

8.2 Capacity graphs
Burner Combustion Motor Servomotor Ignition Gas pressure Air pressure Flame
type manager unit switch switch sensor
WG10…/1-C, W-FM 10 ECK 03/F-2/1 W-STD 4·5 W-ZG01 GW50 A5/1 LGW 10/A2 Ionisation
vers. Z-LN 230V, 50Hz
2870 r.p.m.
0·13 kW, 1·0 A
Cond. 4 µF
Burner type WG10…/1-C
Combustion head WG10-C
Heat rating 25...110 kW
Combustion chamber pressure [mbar]
Combustion heat rating [kW]
2·5
2·0
1·5
1·0
0·5
-0·5
-1·5
